2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Removal

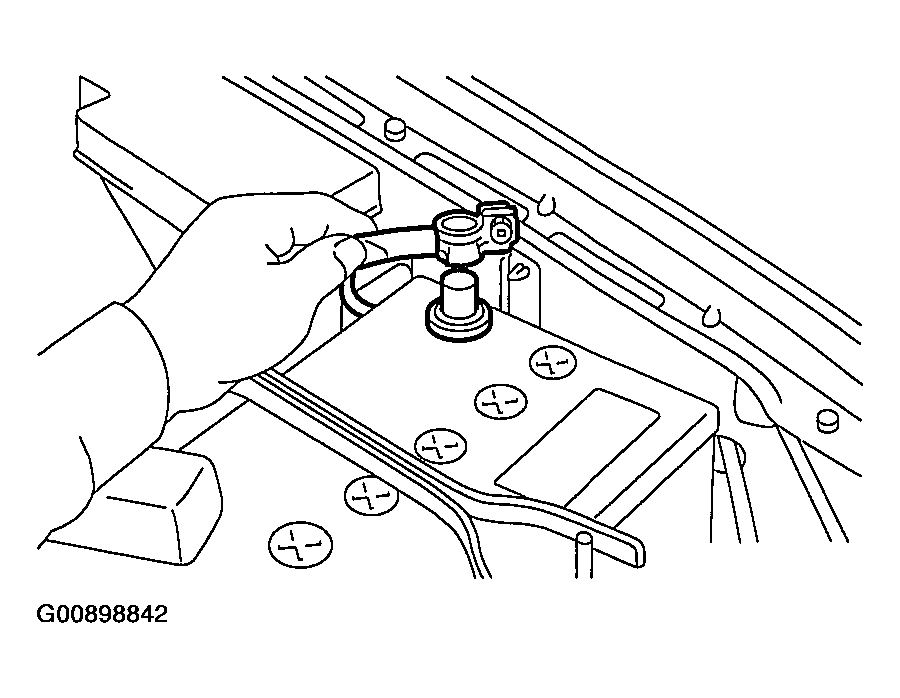

- Disconnect ground cable from battery.
- Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim
- Detach floor mat of passenger seat.

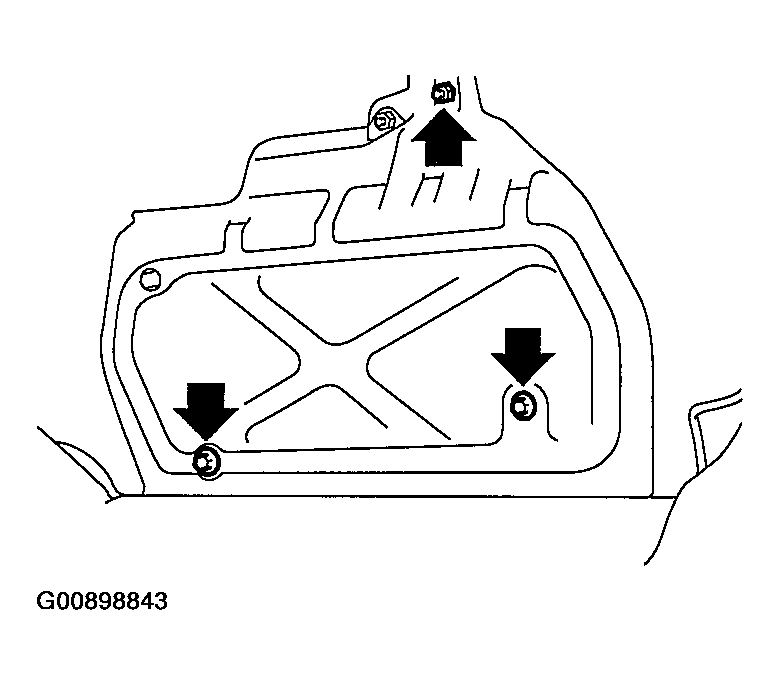

- Remove protect cover.

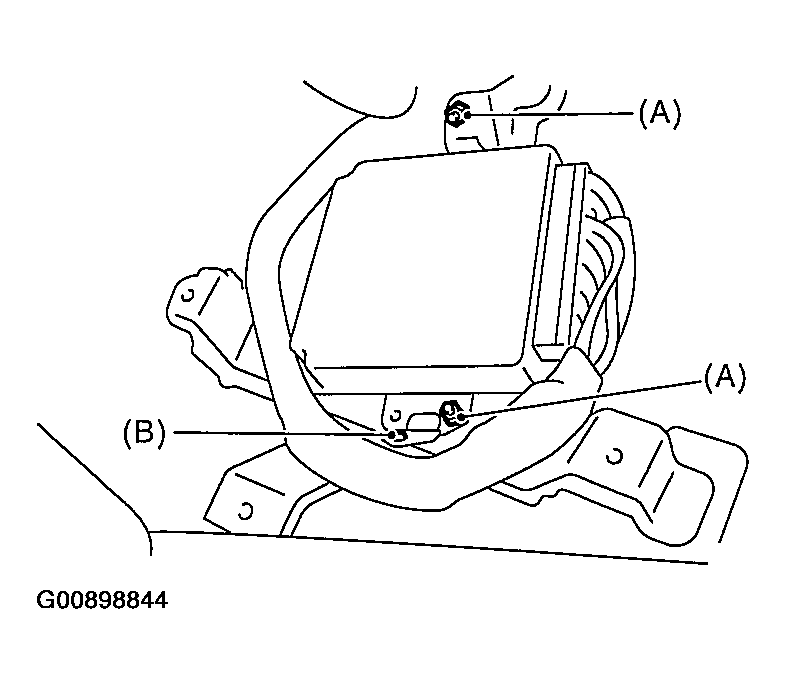

- Remove nuts (A) which hold ECM to bracket.
- Remove clip (B) from bracket.
- Disconnect ECM connectors and take out ECM.
