2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Removal

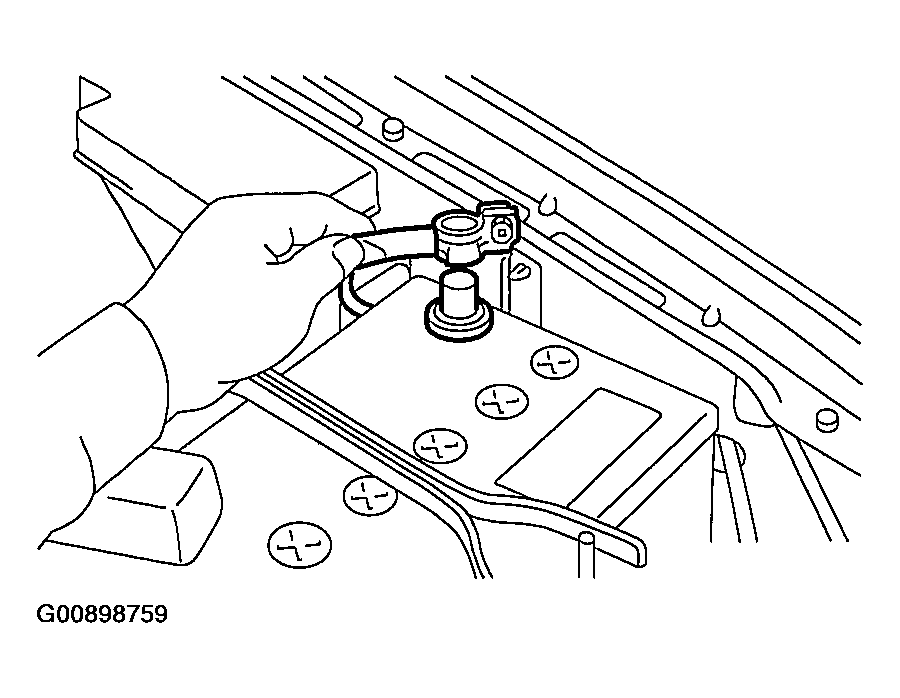

- Disconnect ground cable from battery.

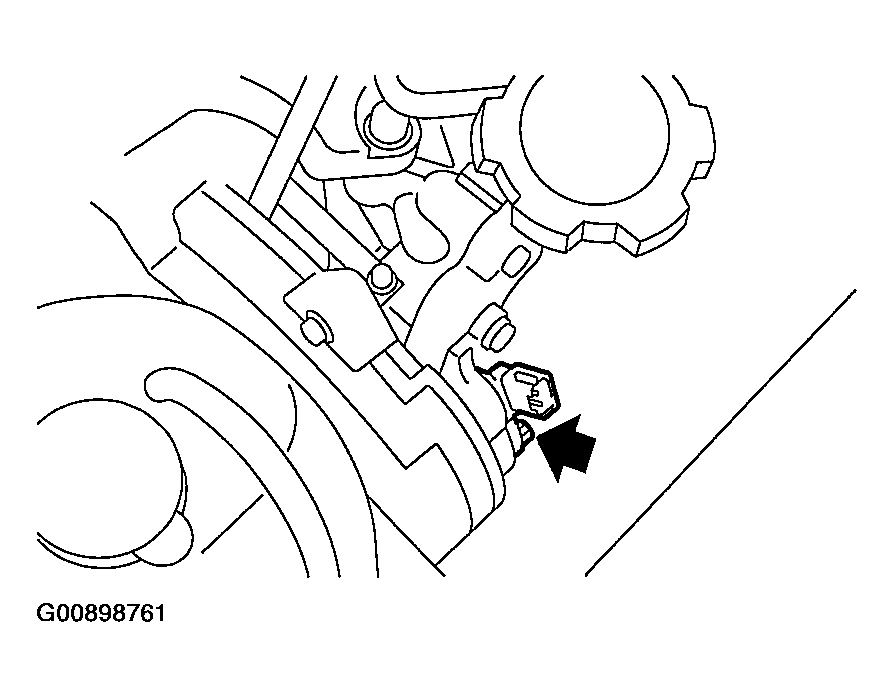

- Disconnect connector from camshaft position sensor.

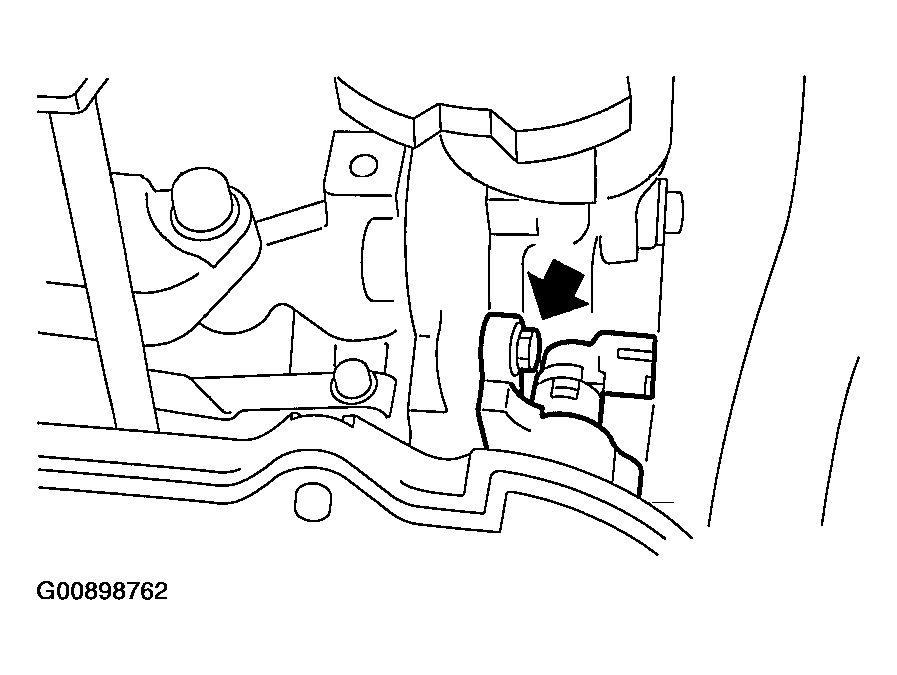

- Remove bolt which installs camshaft position sensor to camshaft position sensor support.

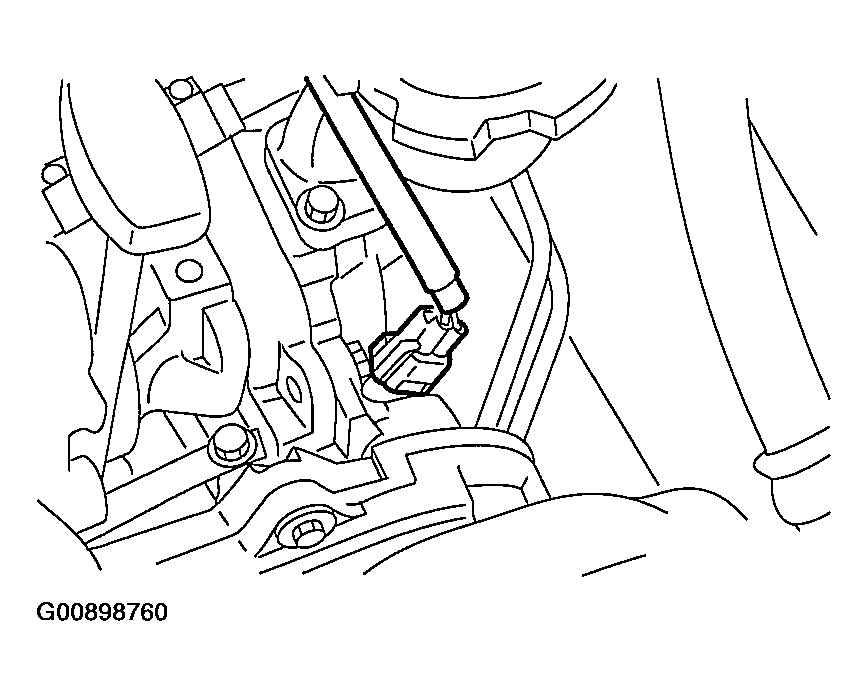

- Remove bolt which installs camshaft position sensor support to camshaft cap LH.
- Remove camshaft position sensor and camshaft position sensor support as a unit.

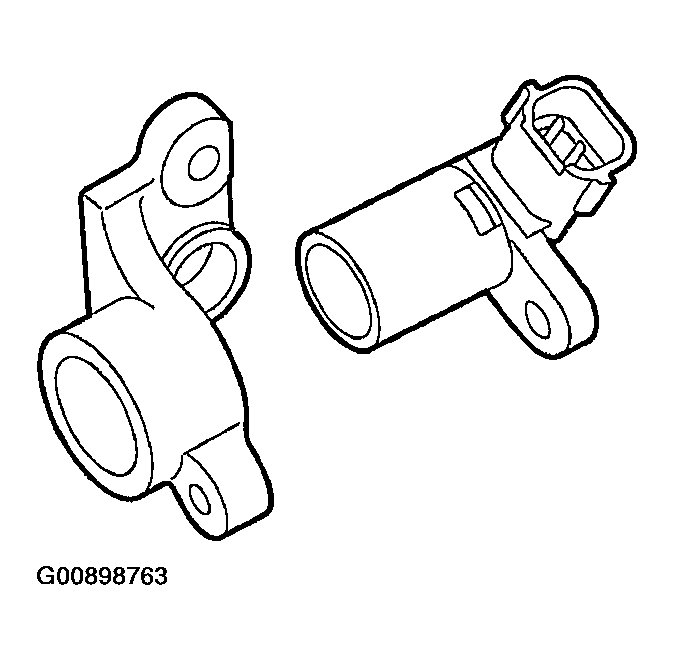

- Remove camshaft position sensor from camshaft position sensor support.
