2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Main Relay: Removal

Disconnect battery ground cable.

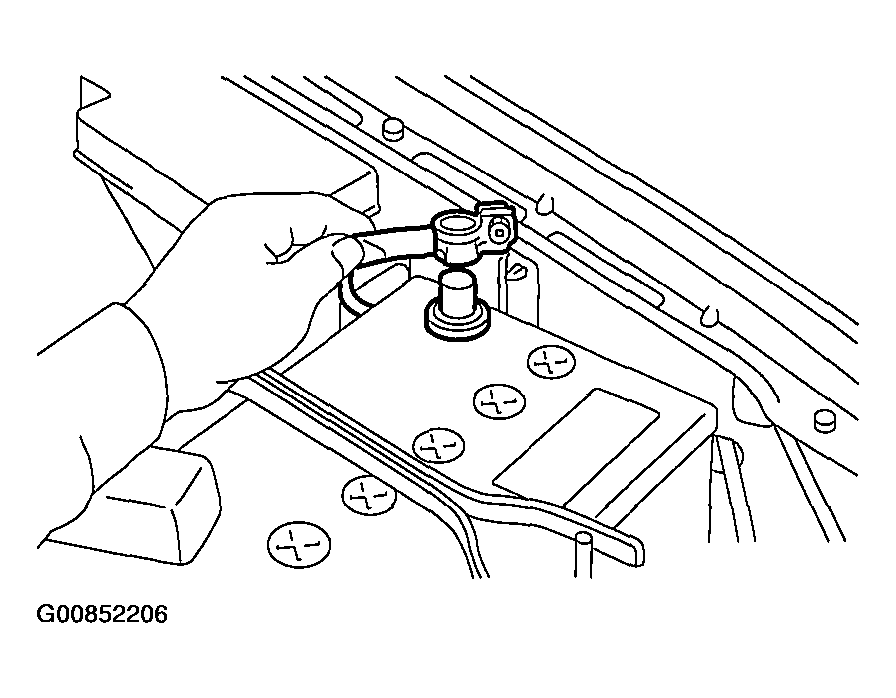

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower cover of driver side.
Disconnect connectors from main relay.

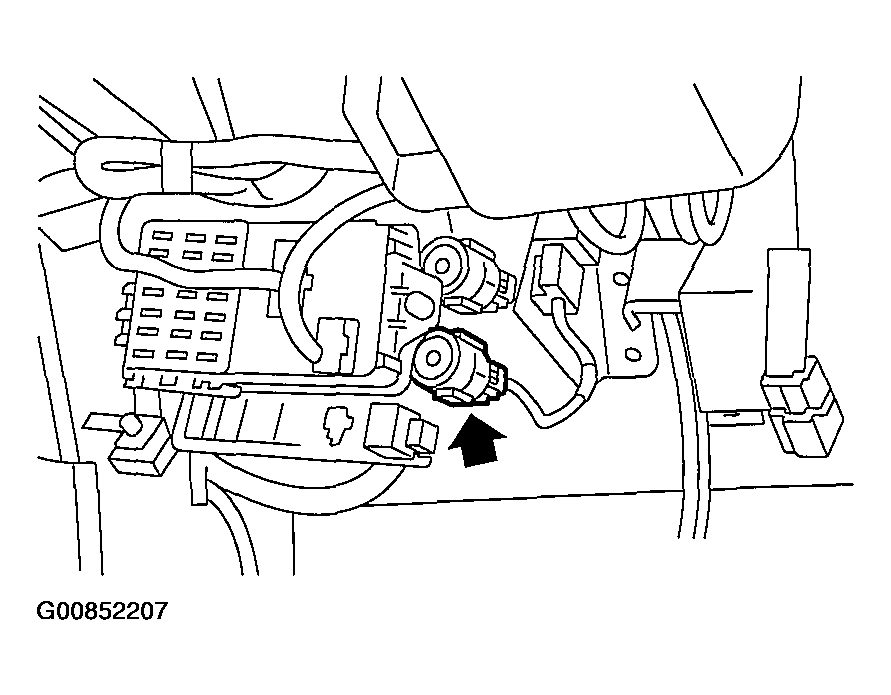

Fig 2: Disconnecting Connectors From Main Relay
Courtesy of SUBARU OF AMERICA, INC.
Remove main relay from bracket.
