2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Control Module: Removal

Disconnect battery ground cable.

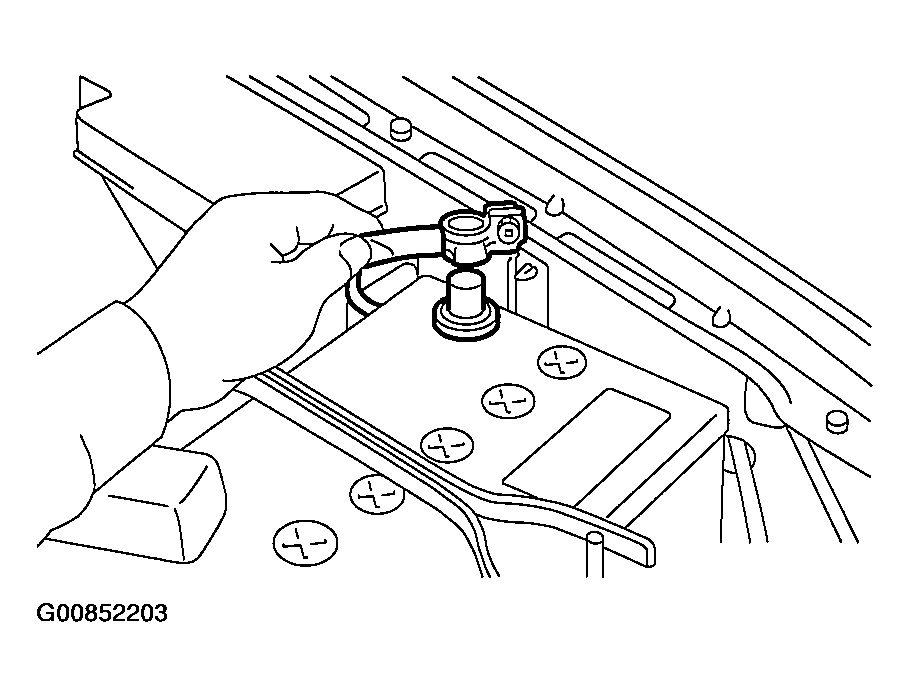

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.
Detach floor mat of passenger seat.
Remove protect cover.

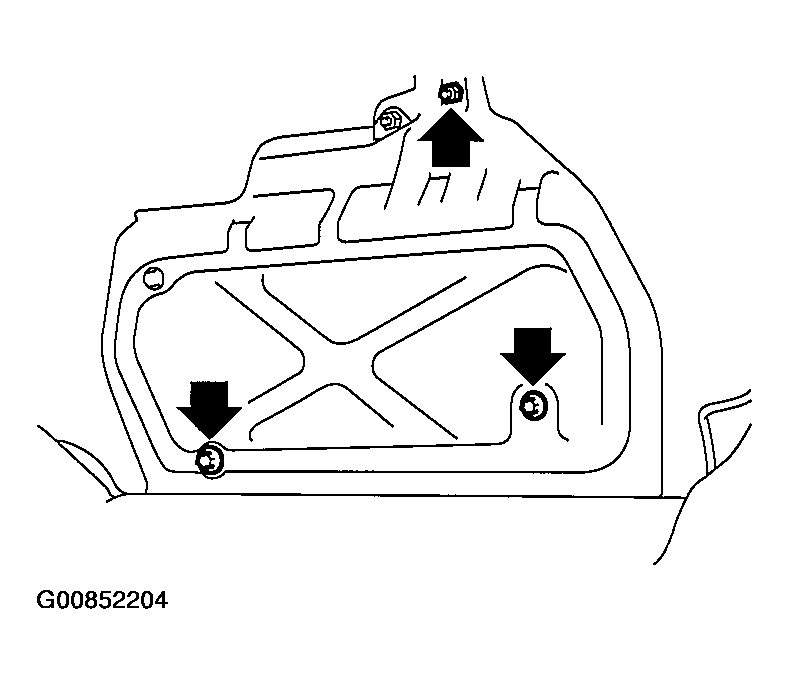

Fig 2: Removing Lower Inner Trim Of Passenger Side
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts (A) which hold ECM to bracket.
Remove clip (B) from bracket.

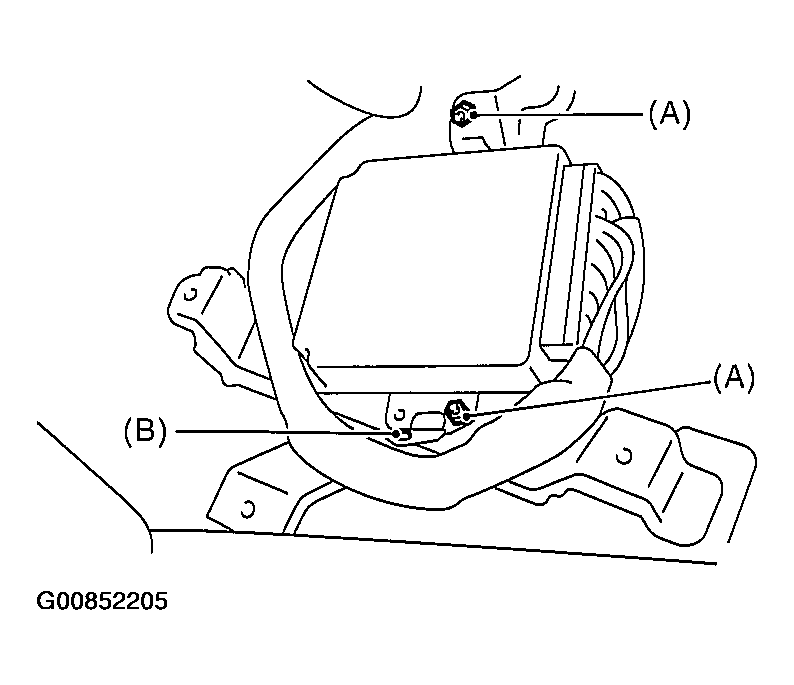

Fig 3: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.
