2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Security Control Module: Removal
- Disconnect the ground cable from battery.

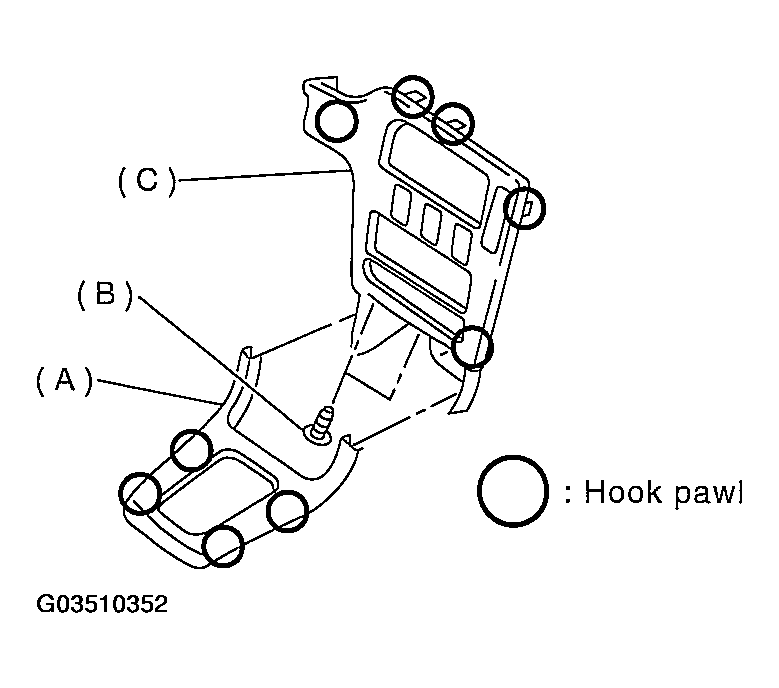

- Remove front cover (A).
- Remove screws (B) and then detach center panel (C) while disconnecting connector.
- Remove two screws.NOTE: Before removing the screw, apply a few turns of butyl tape to the tip of the service tool. This prevents the screw from falling during removal.
