2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Keyless Entry Control Module: Removal
- Disconnect ground cable from battery.
- Remove glove box. Refer to REMOVAL , Glove Box.

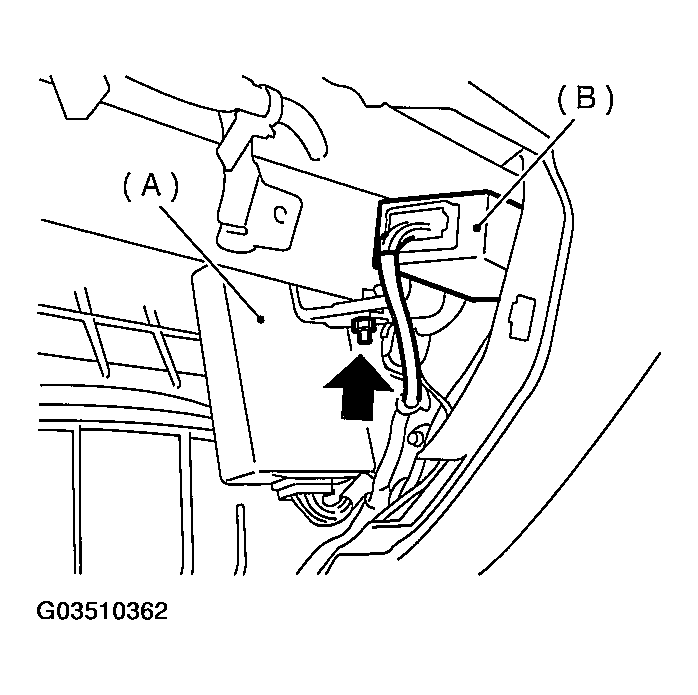

- Remove nut, then remove keyless entry control module (B) and the other electrical control module (A) while disconnecting connector.
- Disconnect keyless entry control module and the other control module.
