2002 Subaru Outback VDC Sedan AWD F6-3.0LFACTORY OEM SERVICE PROCEDURE

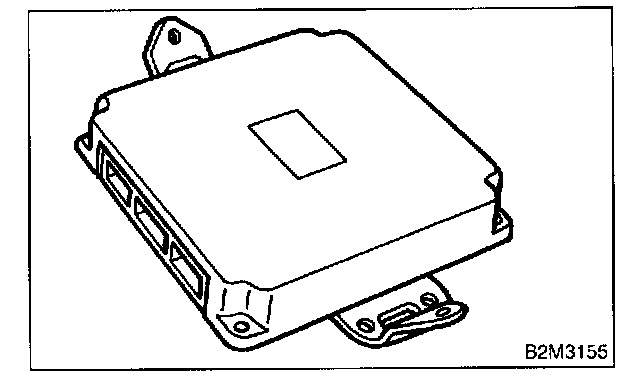

Engine Control Module: Service and Repair
REMOVAL
1. Disconnect battery ground cable.

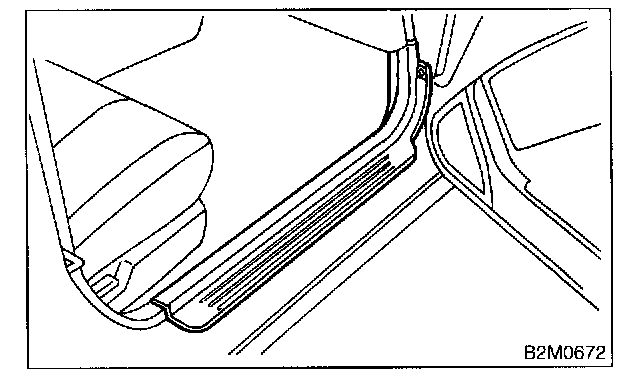

2. Remove lower inner trim of passenger side.
3. Detach floor mat of front passenger seat.
4. Remove protect cover.
5. Remove nuts which hold ECM to bracket.
6. Remove clip from bracket.
7. Disconnect ECM connectors and take out ECM.
INSTALLATION
Install in the reverse order of removal.
CAUTION: When replacing ECM, be careful not to use the wrong spec. ECM to avoid any damage to the fuel injection system.
1. Disconnect battery ground cable.
2. Remove lower inner trim of passenger side.
3. Detach floor mat of front passenger seat.
4. Remove protect cover.
5. Remove nuts which hold ECM to bracket.
6. Remove clip from bracket.
7. Disconnect ECM connectors and take out ECM.
INSTALLATION
Install in the reverse order of removal.
CAUTION: When replacing ECM, be careful not to use the wrong spec. ECM to avoid any damage to the fuel injection system.
