Disconnect battery ground cable.

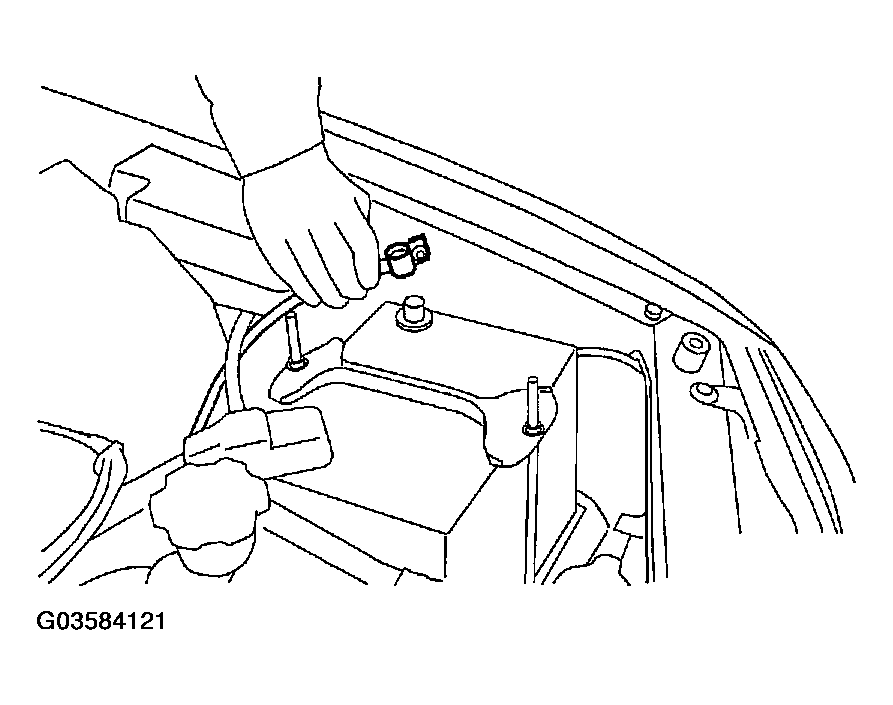

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >
Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

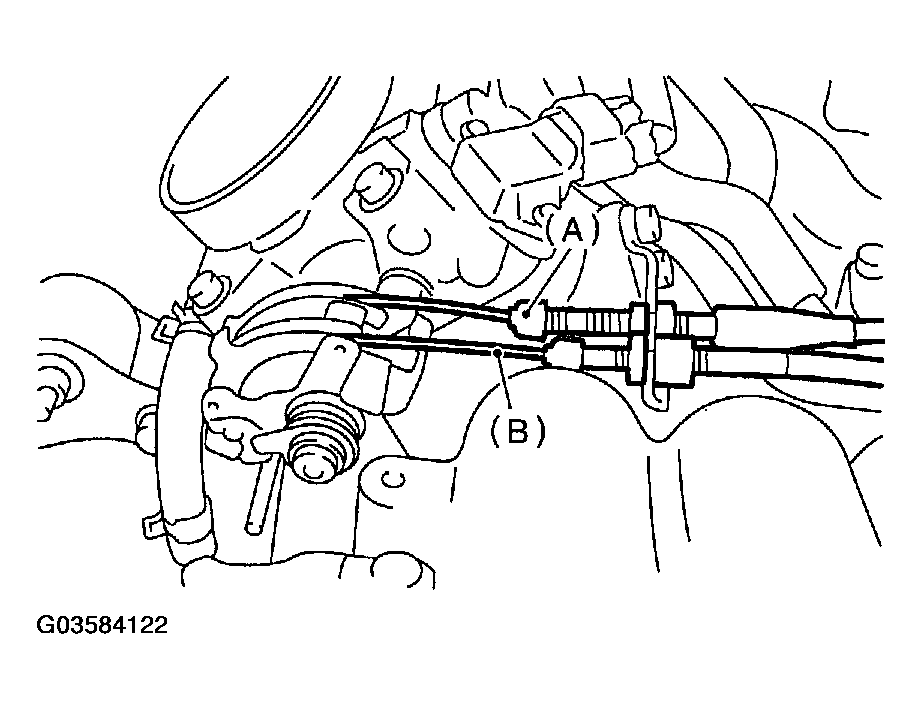

Fig 2: Disconnecting Accelerator Cable And Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connectors from intake manifold pressure sensor (A) and idle air control solenoid valve (B).
Disconnect air by-pass hose (C) from idle air control solenoid valve.

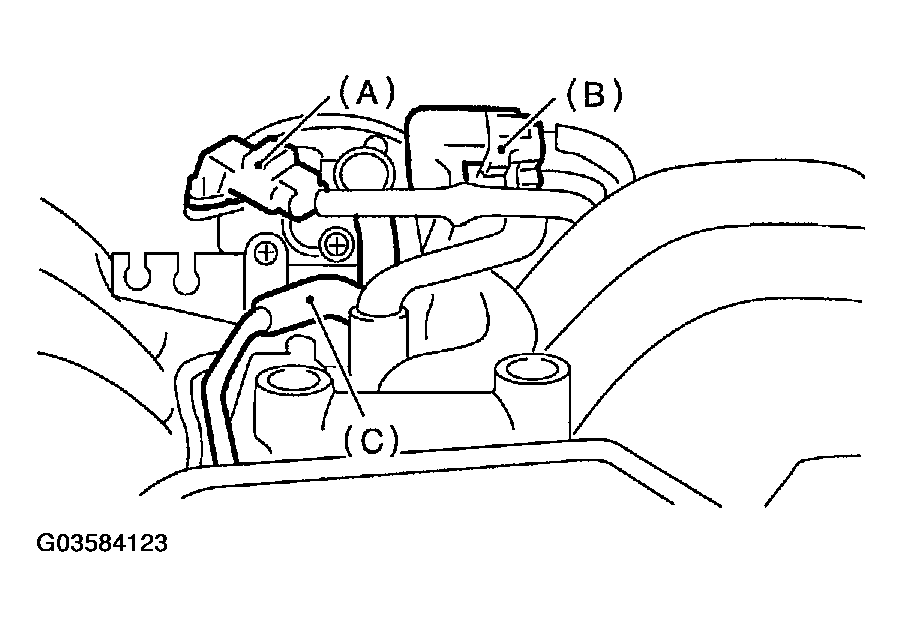

Fig 3: Disconnecting Connectors From Intake Manifold Pressure Sensor And Idle Air Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Disconnect throttle position sensor connector.

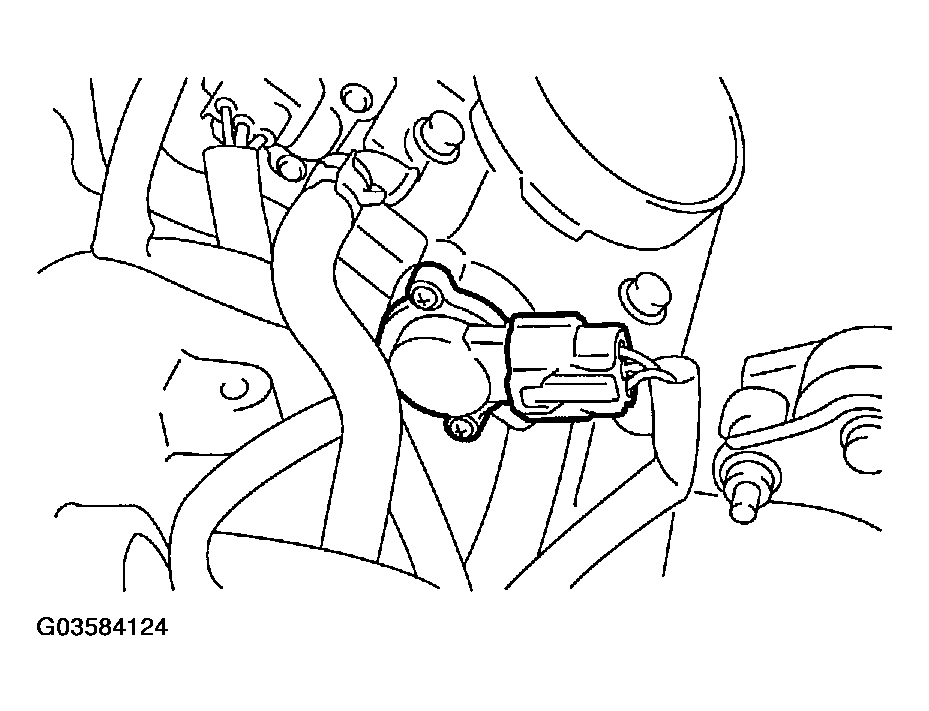

Fig 4: Disconnecting Throttle Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect engine coolant hoses from throttle body.
Remove bolts which secure throttle body to intake manifold.

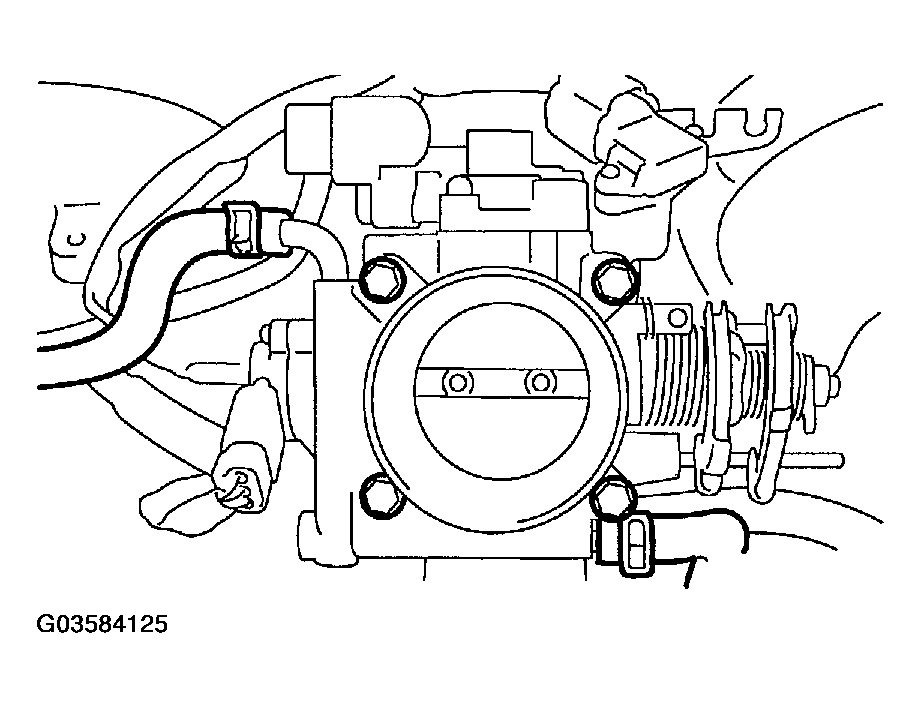

Fig 5: Removing Bolts Securing Throttle Body To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
