Release fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, FUEL. >
Open fuel flap lid, and remove fuel filler cap.

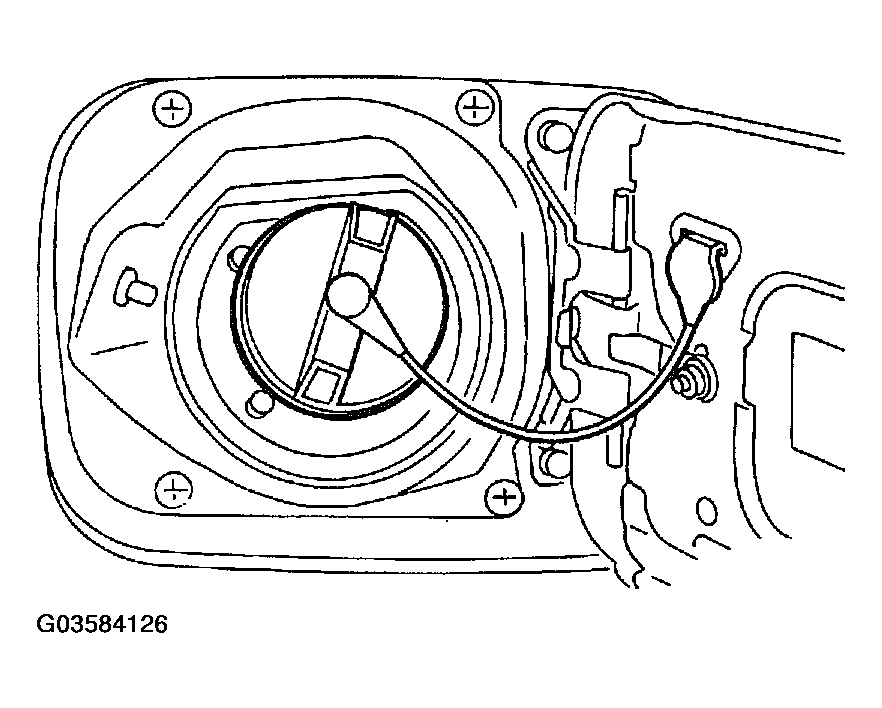

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect battery ground cable.

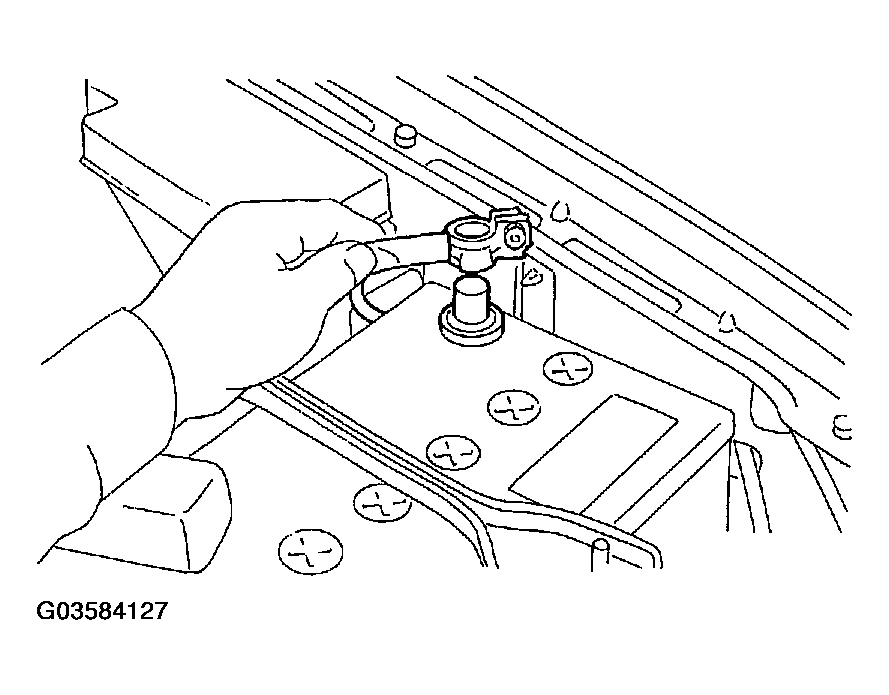

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct, air cleaner assembly and air intake chamber. < Ref. to REMOVAL , Air Intake Duct. > and < Ref. to REMOVAL , Air Cleaner. > and < Ref. to REMOVAL , Air Intake Chamber. >
Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

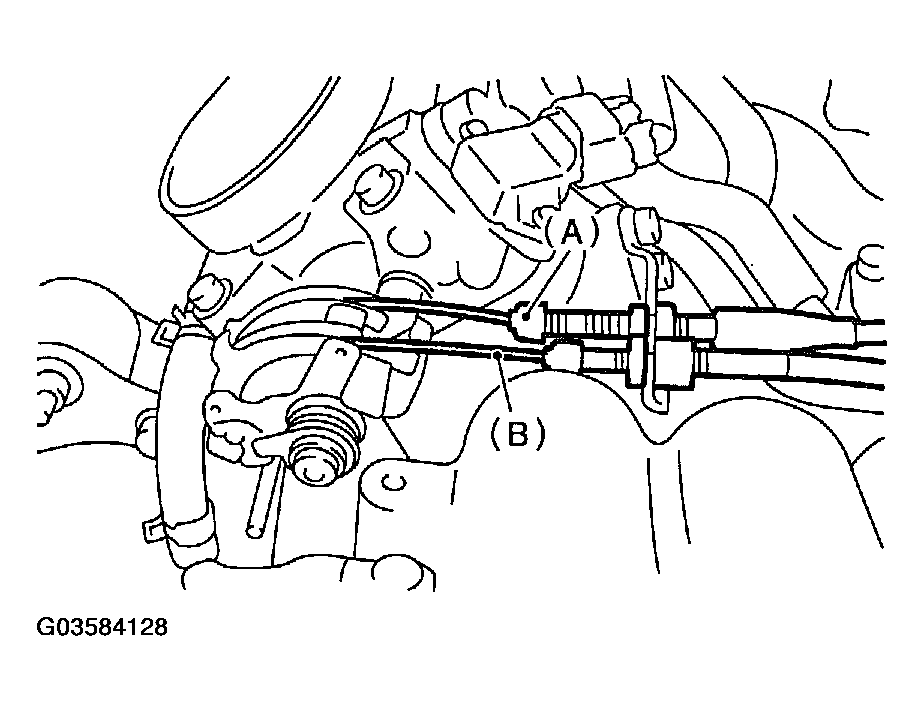

Fig 3: Disconnecting Accelerator Cable Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove power steering pump and tank from brackets.
1. Remove V-belt.
  < Ref. to REMOVAL , V-belt. >
2. Remove power steering oil pipe with bracket.

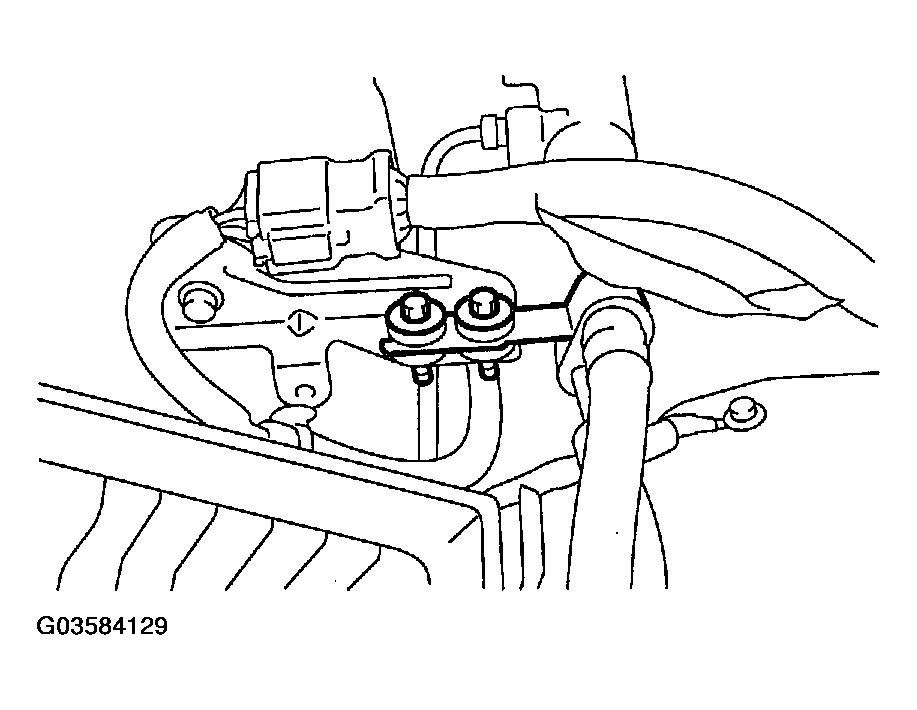

  Fig 4: Removing Power Steering Oil Pipe With Bracket
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove bolts which install power steering pump bracket.
  NOTE: Do not separate hose and pipe from the main pump.
