Fuel Sub Level Sensor: Removal
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

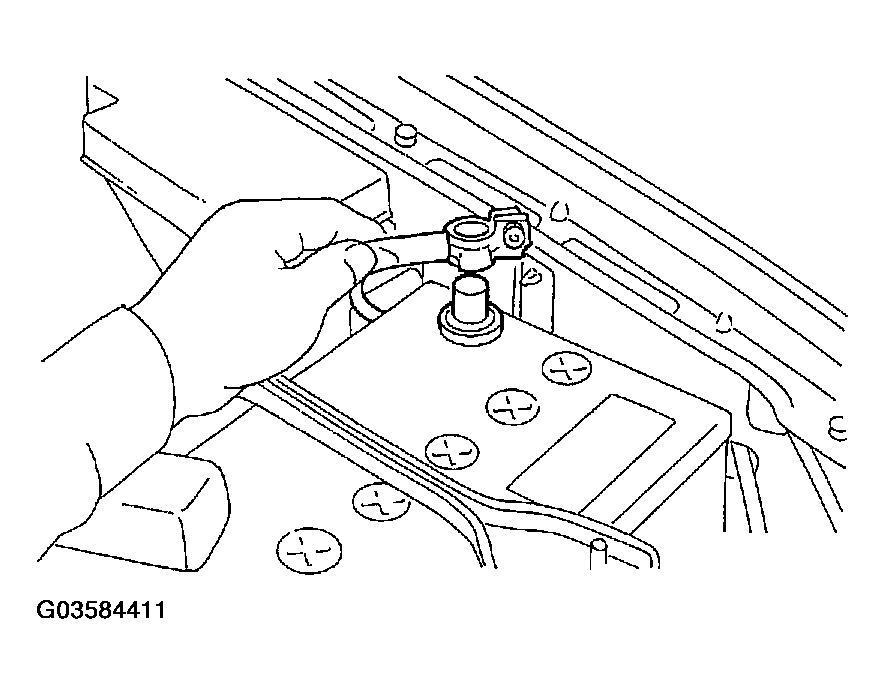

- Disconnect battery ground cable.
- Lift-up the vehicle.

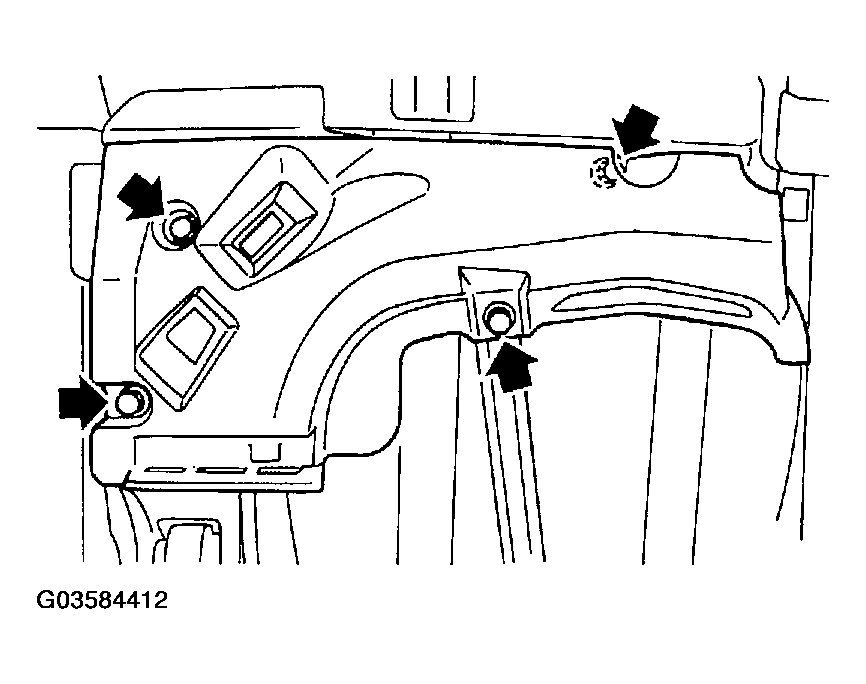

- Remove front side fuel tank cover.

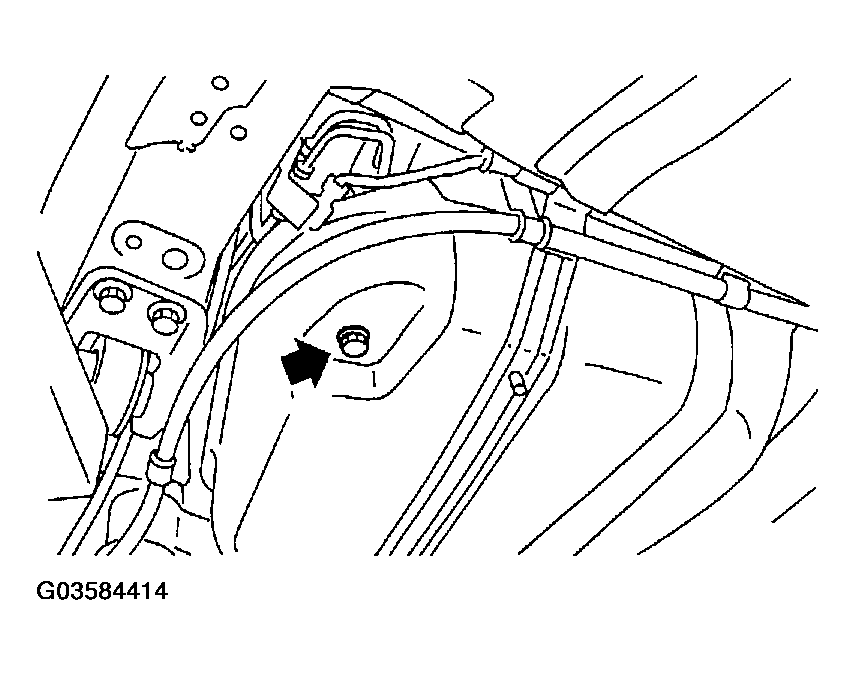

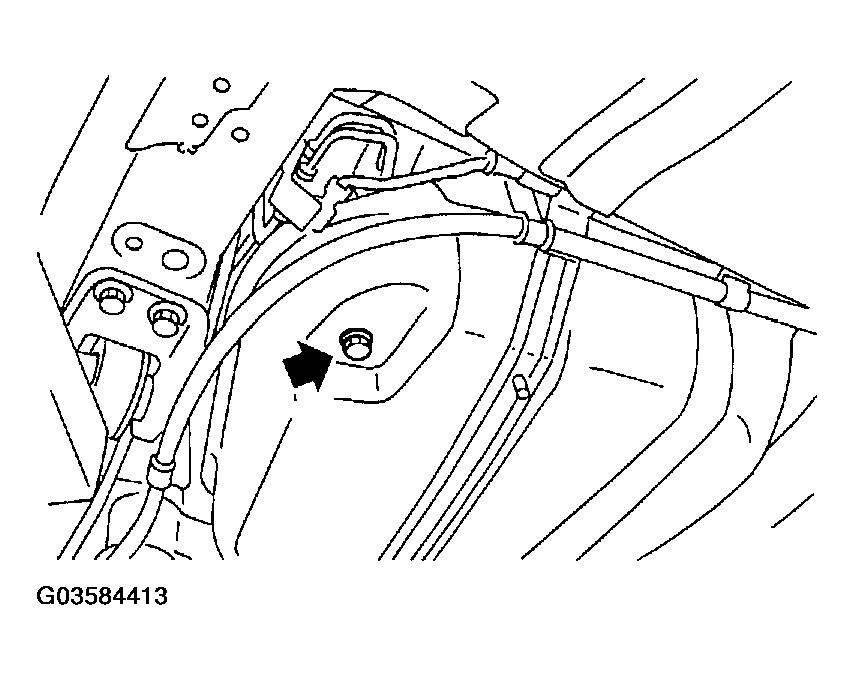

- Drain fuel from fuel tank. Set a container under the vehicle and remove drain plug from fuel tank.

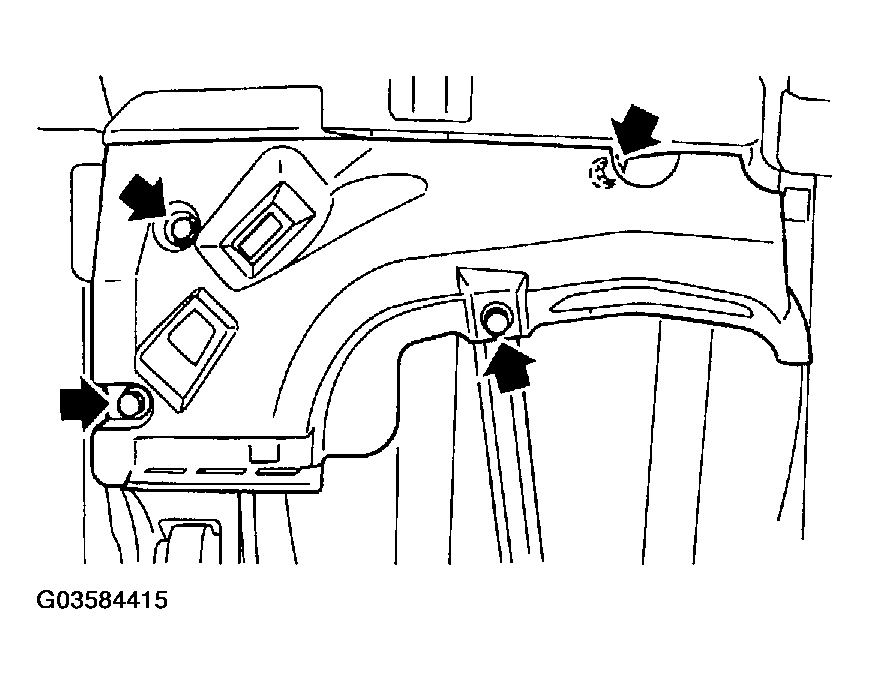

- Tighten fuel drain plug and install front right side fuel tank cover.
Tightening torque:
26 N.m (2.65 kgf-m, 19.2 ft-lb)
Tightening torque:
18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Raise rear seat and turn floor mat up. (Wagon model)
- Remove rear seat. (Sedan model)

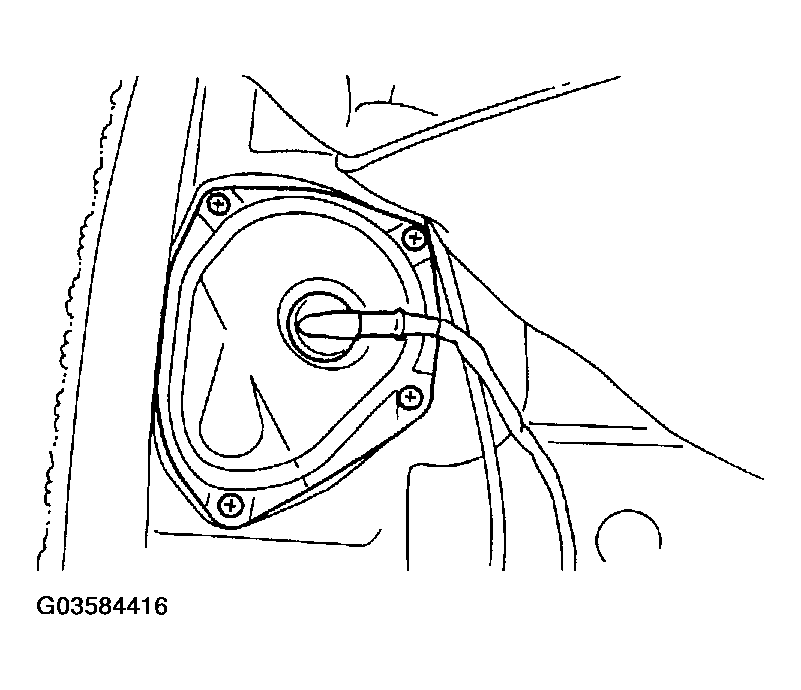

- Remove service hole cover.

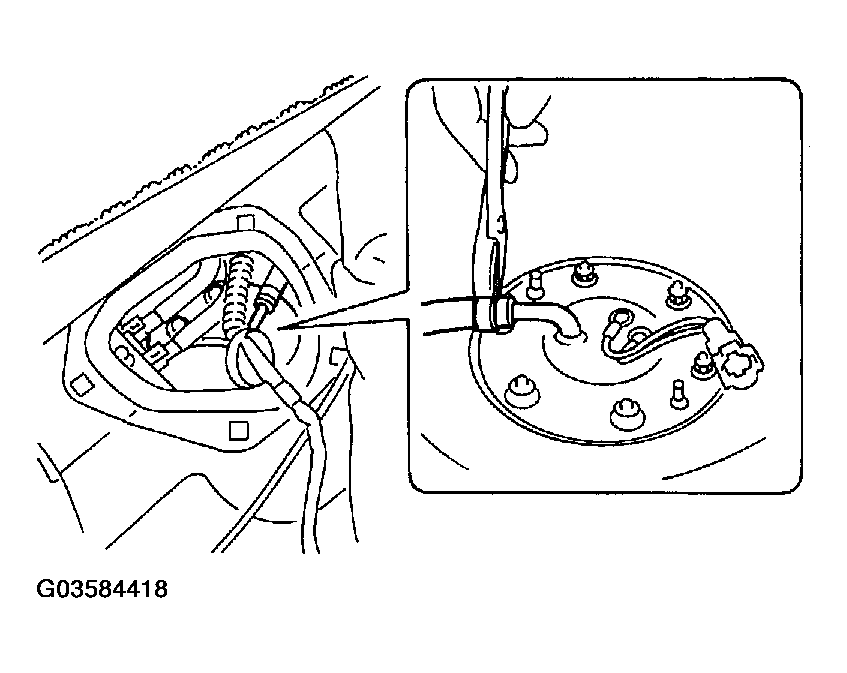

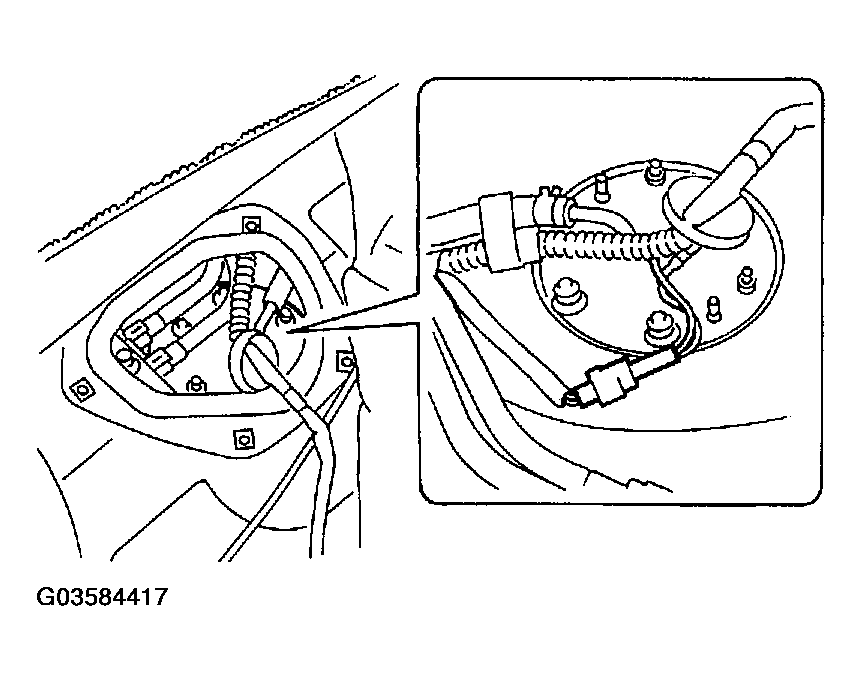

- Disconnect connector from fuel sub level sensor.
- Disconnect fuel jet pump hose.

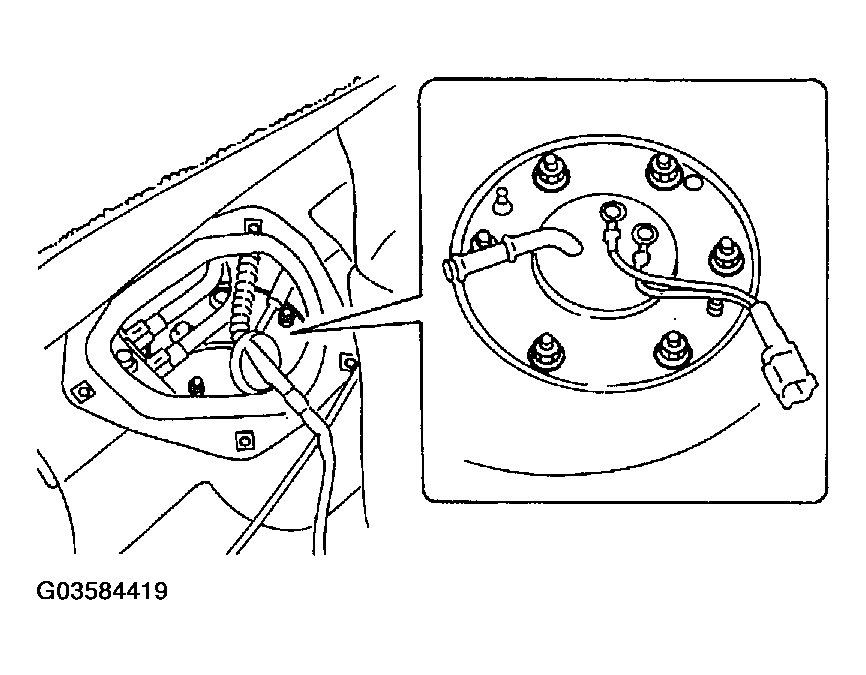

- Remove bolts which install fuel sub level sensor on fuel tank.
- Remove fuel sub level sensor.
