2002 Subaru Outback Base, 4D SedanFACTORY OEM SERVICE PROCEDURE

RH Side

Release fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , FUEL. >
Open fuel flap lid, and remove fuel filler cap.

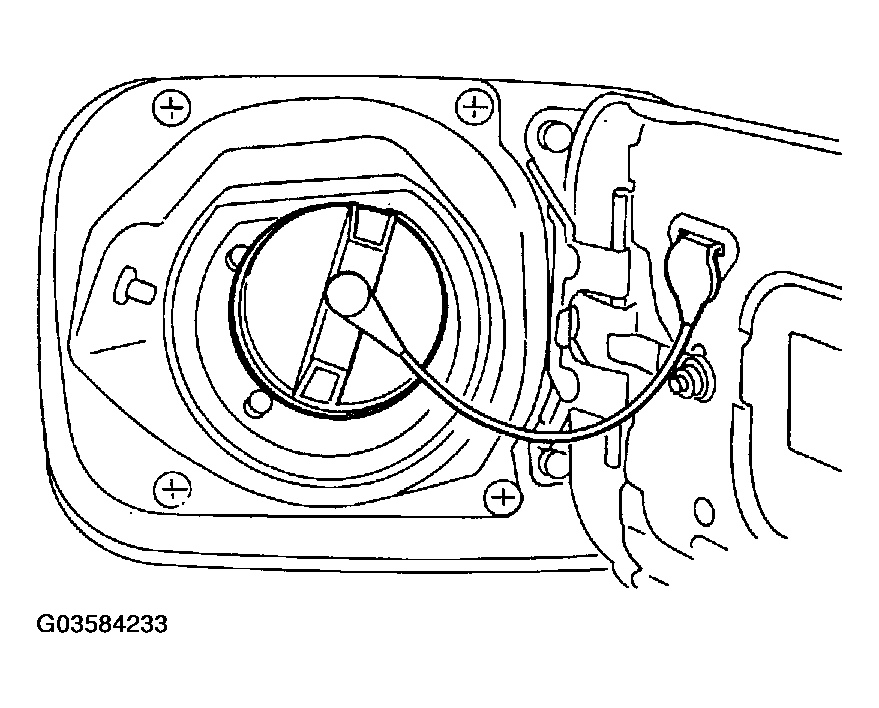

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect battery ground cable.

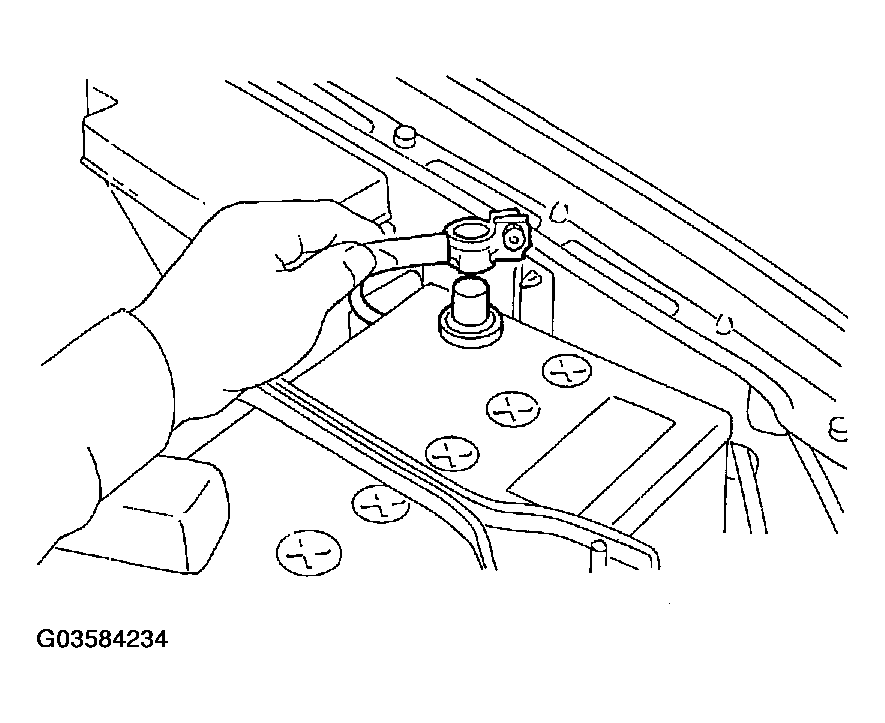

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner lower case. < Ref. to REMOVAL , Air Cleaner. >
Remove power steering pump and tank from brackets.
1. Remove V-belt.
  < Ref. to REMOVAL , V-belt. >
2. Remove power steering oil pipe with bracket.

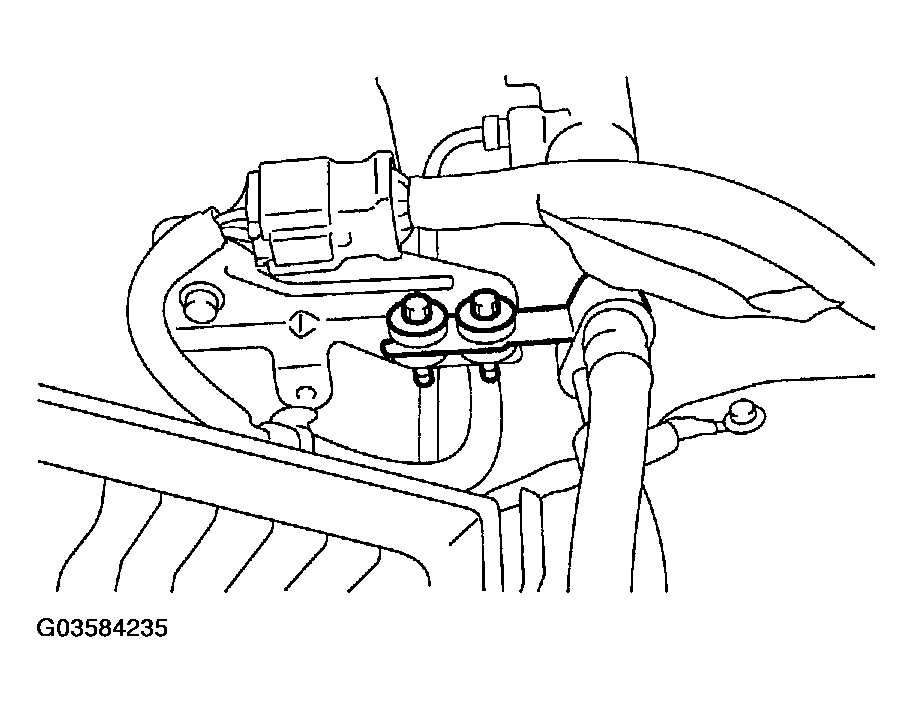

  Fig 3: Removing Power Steering Oil Pipe With Bracket
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove bolts which install power steering pump bracket.
  CAUTION: Do not separate hose and pipe from the main pump.
