2002 Subaru Outback Base, 4D SedanFACTORY OEM SERVICE PROCEDURE

Fuel Filler Pipe: Disassembly

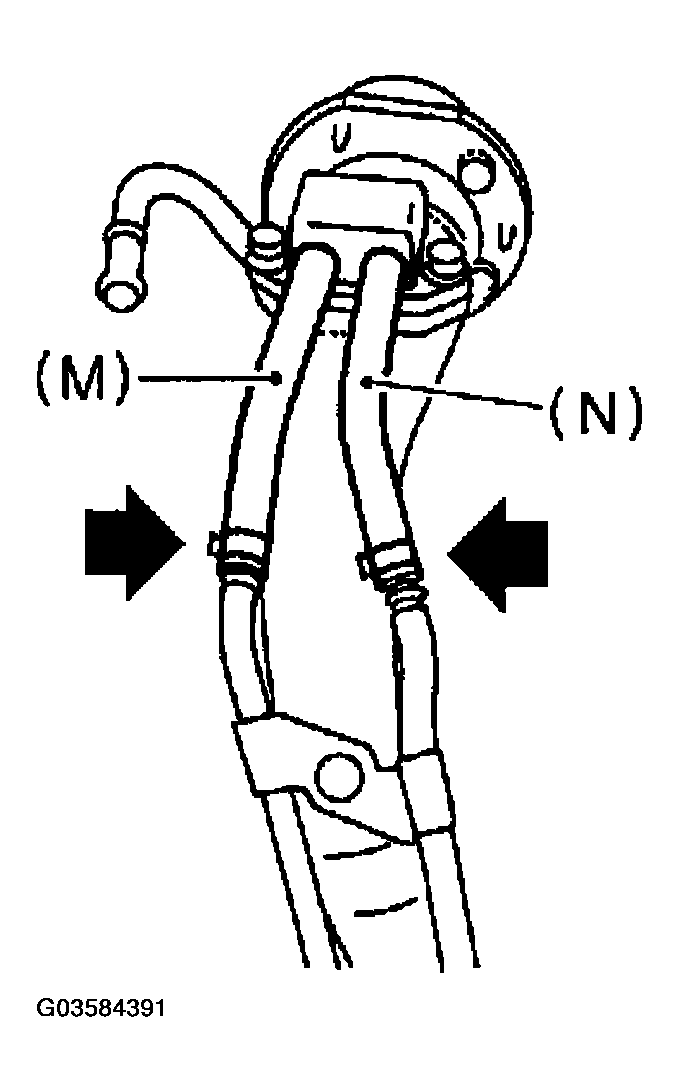

Disconnect evaporation hose (M) and (N) from evaporation pipe assembly.

Fig 1: Disconnecting Evaporation Hose (M) And (N) From Evaporation Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.

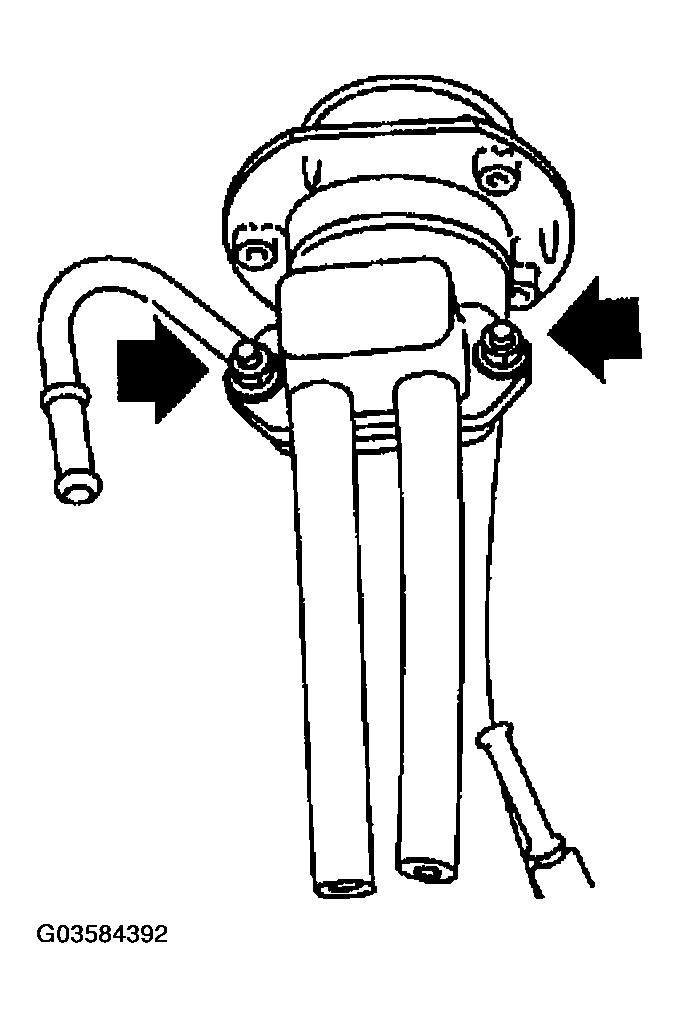

Remove shut valve from fuel filler pipe.

Fig 2: Removing Shut Valve From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.

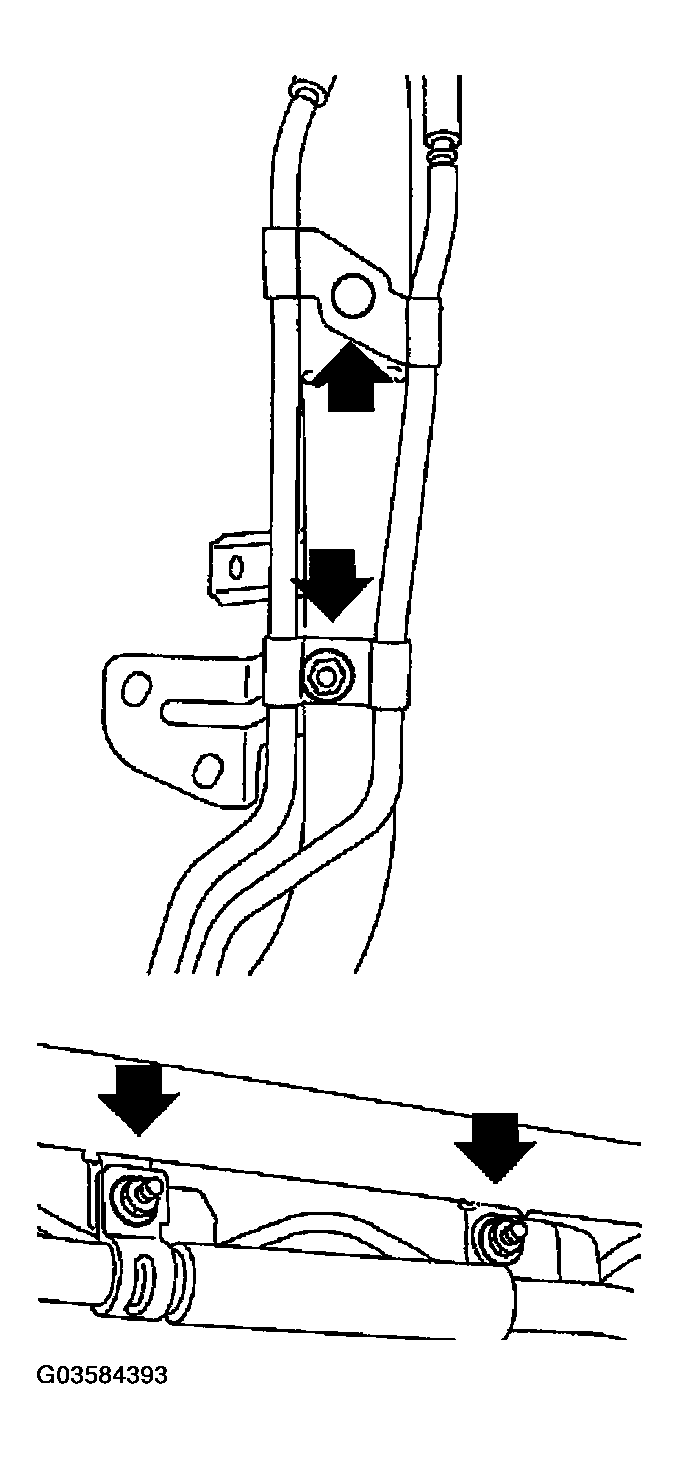

Remove nut which holds evaporation pipe assembly on fuel filler pipe.

Fig 3: Removing Nut Which Holds Evaporation Pipe Assembly On Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
