2002 Subaru Outback Base, 4D SedanFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Removal

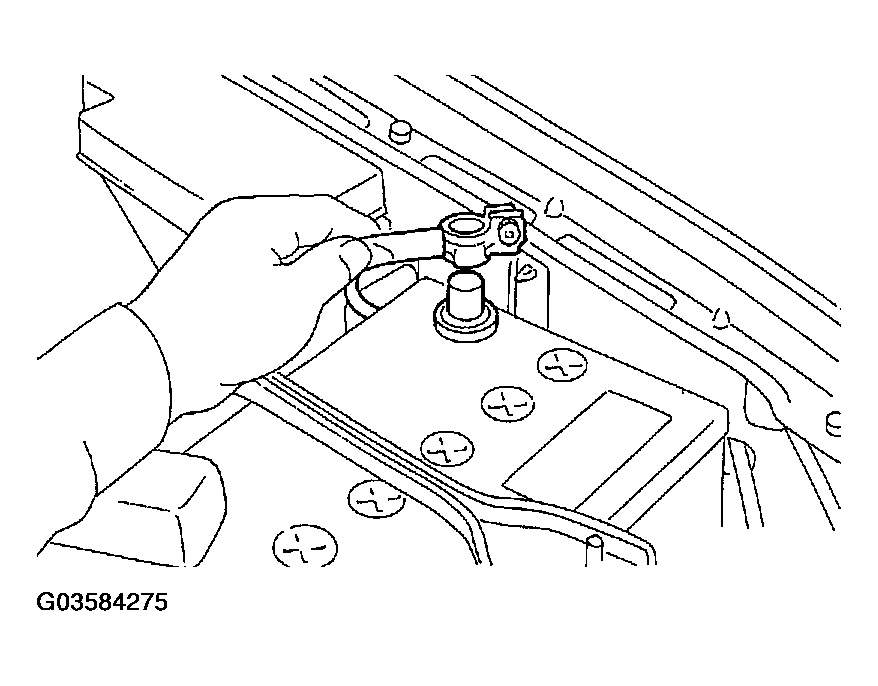

- Disconnect battery ground cable.

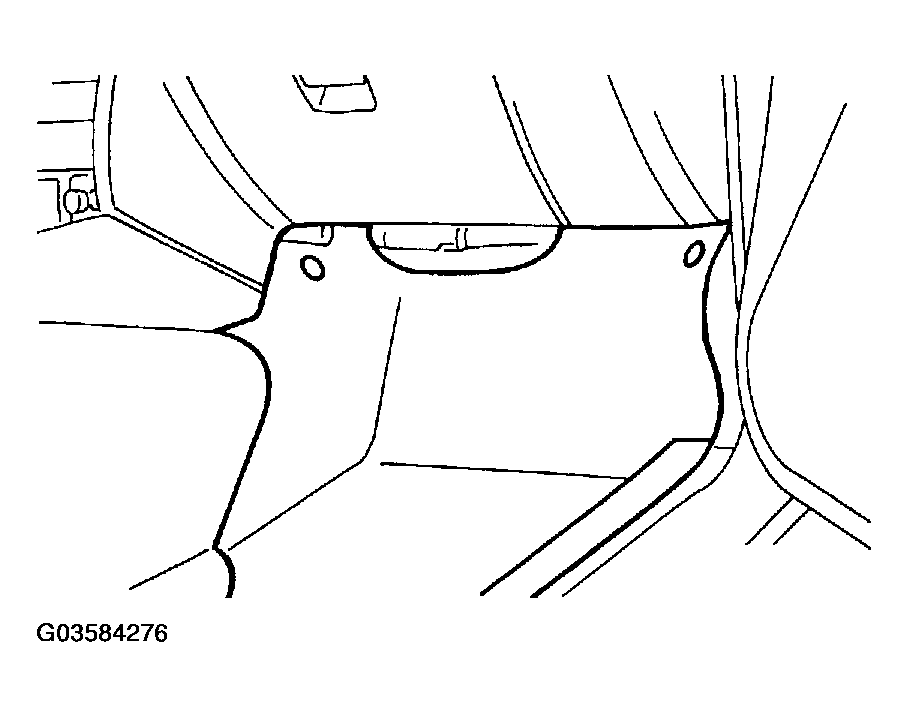

- Remove lower inner trim of passenger side. < Ref. to REMOVAL , Lower Inner Trim. >
- Detach floor mat of front passenger seat.
- Remove lower inner trim of passenger side. < Ref. to REMOVAL , Lower Inner Trim. >
- Detach floor mat of front passenger seat.

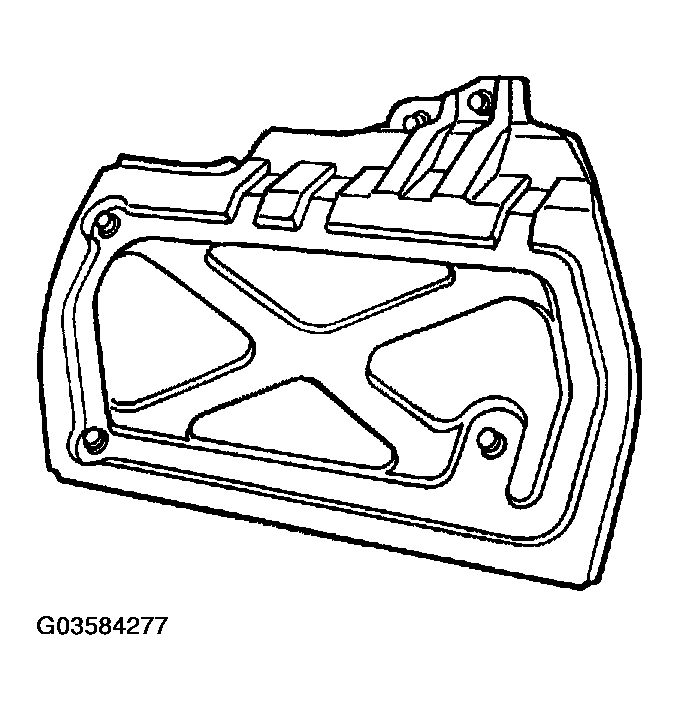

- Remove protect cover.

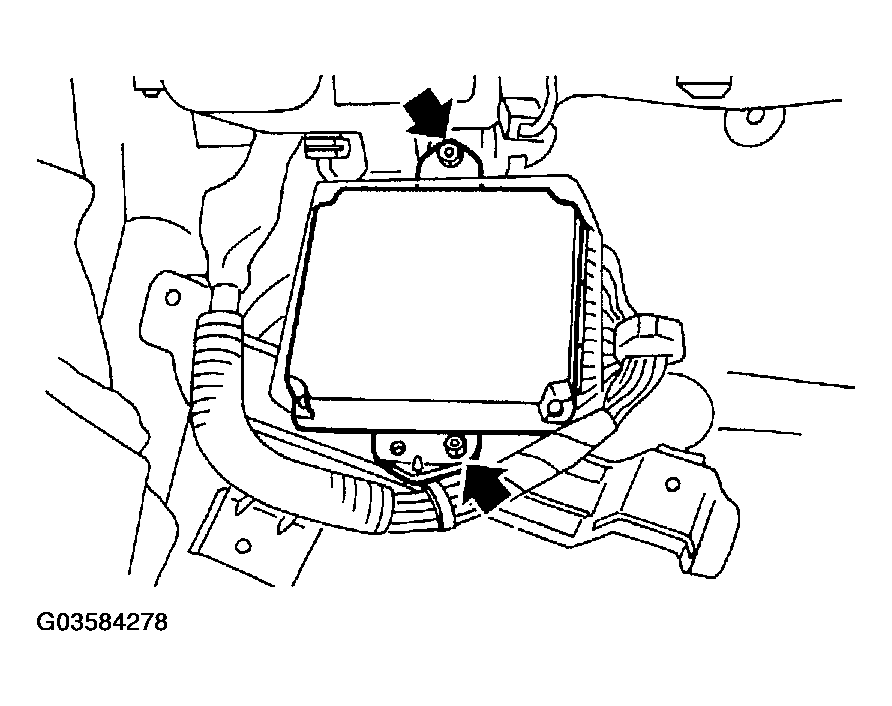

- Remove nuts which hold ECM to bracket.

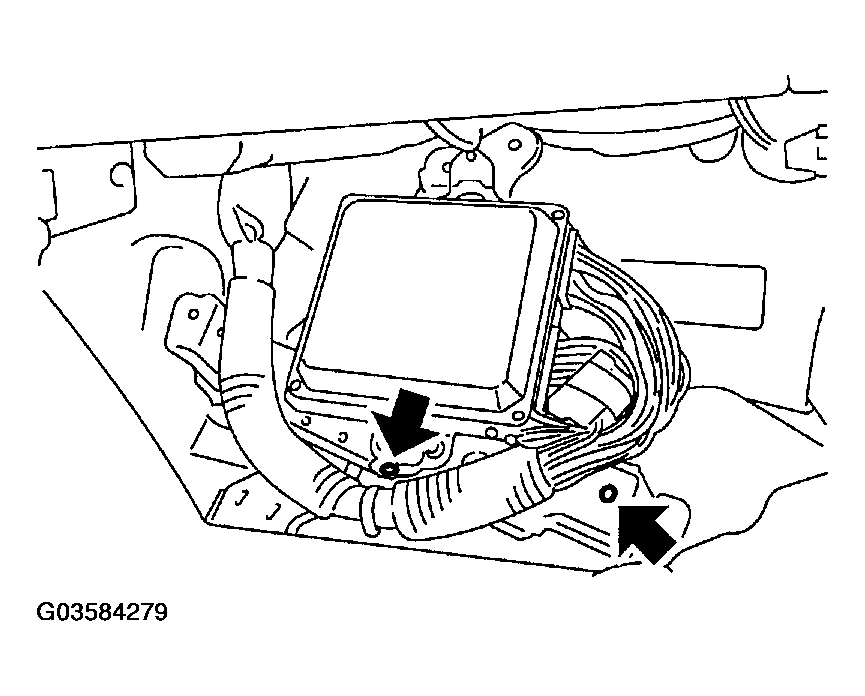

- Remove clip from bracket.
- Disconnect ECM connectors and take out ECM.
