Intake Manifold: Removal

  1. Release fuel pressure. Refer to OPERATION , Fuel.
  2. Open fuel flap lid, and remove fuel filler cap.

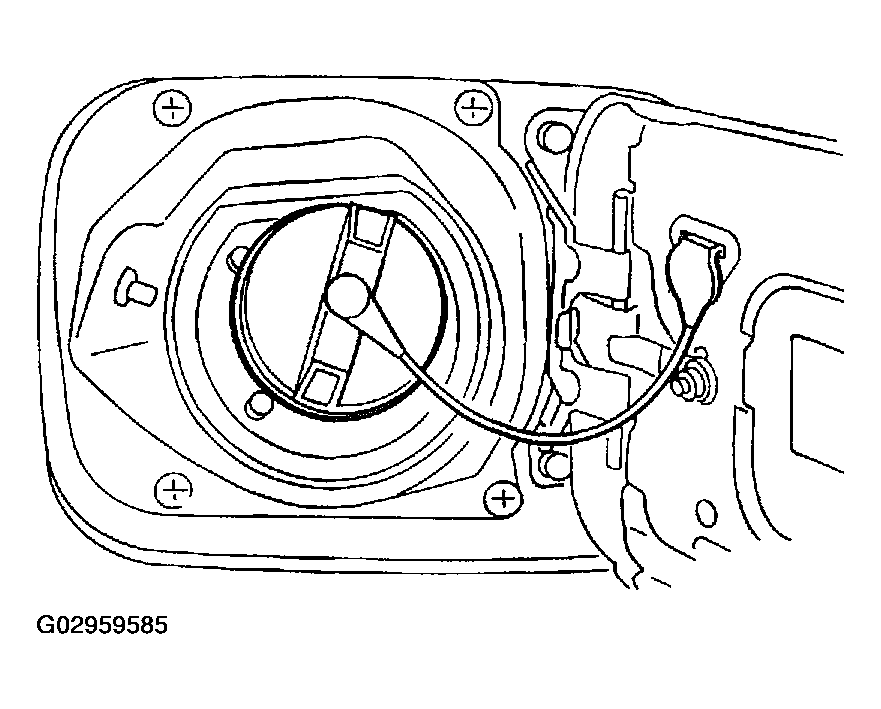

    Fig 1: Removing Fuel Filler Cap
    G02959585Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect battery ground cable.

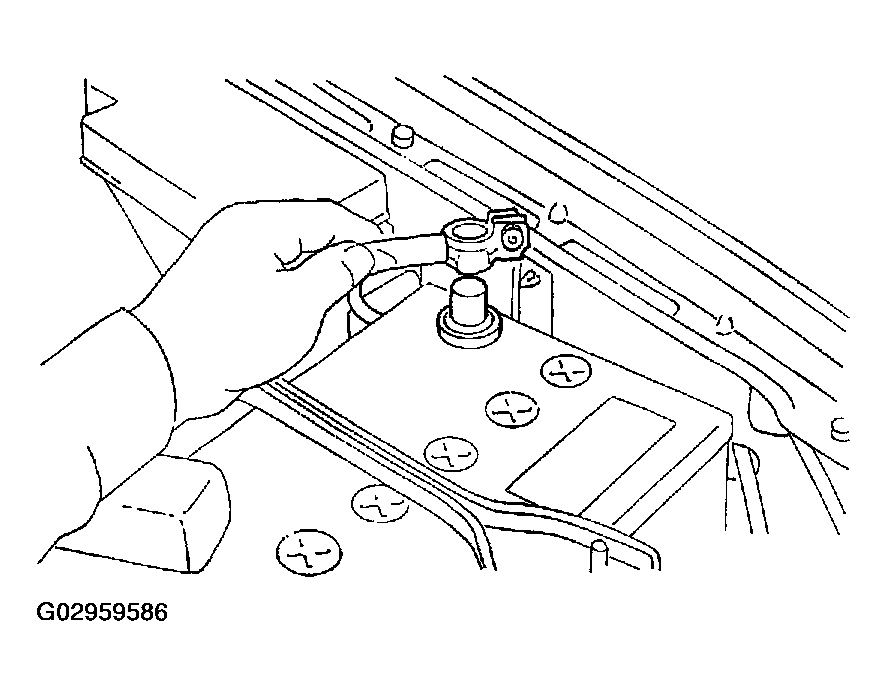

    Fig 2: Disconnecting Battery Ground Cable
    G02959586Courtesy of SUBARU OF AMERICA, INC.
  4. Remove air intake duct and air cleaner case. Refer to REMOVAL , Air Intake Duct and REMOVAL , Air Cleaner Case.
  5. Disconnect accelerator cable (A).
  6. Disconnect cruise control cable (B). (With cruise control model)

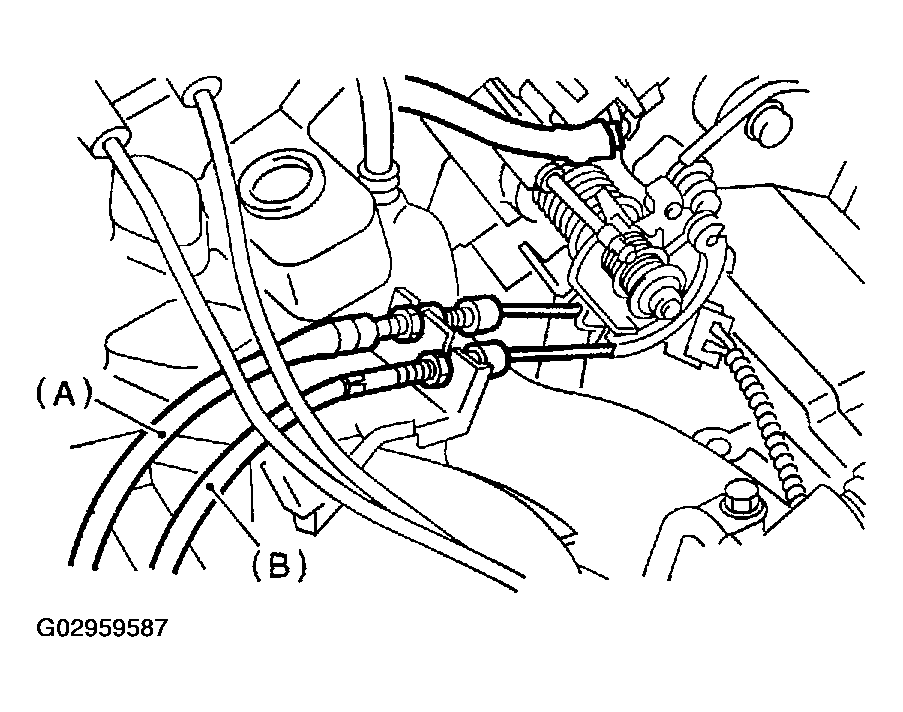

    Fig 3: Disconnecting Accelerator Cable & Cruise Control Cable
    G02959587Courtesy of SUBARU OF AMERICA, INC.
  7. Remove power steering pump and tank from brackets.
    1. Remove resonator chamber.

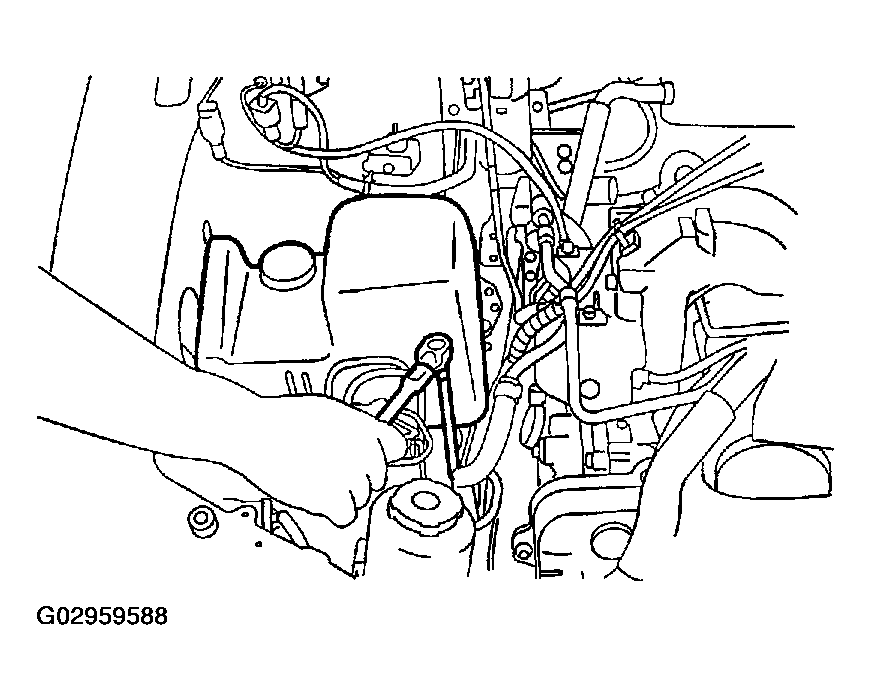

      Fig 4: Removing Resonator Chamber
      G02959588Courtesy of SUBARU OF AMERICA, INC.
    2. Remove V-belt covers.

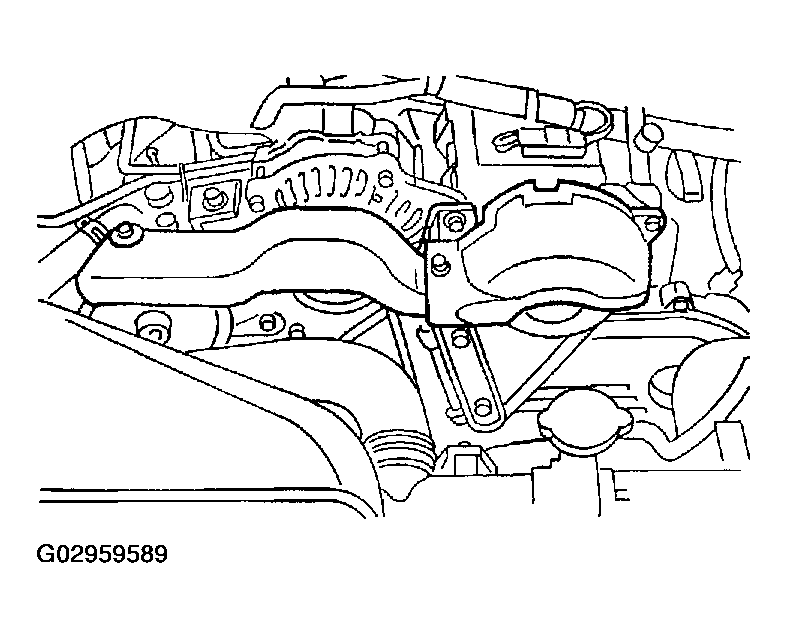

      Fig 5: Removing V-Belt Covers
      G02959589Courtesy of SUBARU OF AMERICA, INC.
    3. Loosen lock bolt and slider bolt, and remove power steering pump drive V-belt.

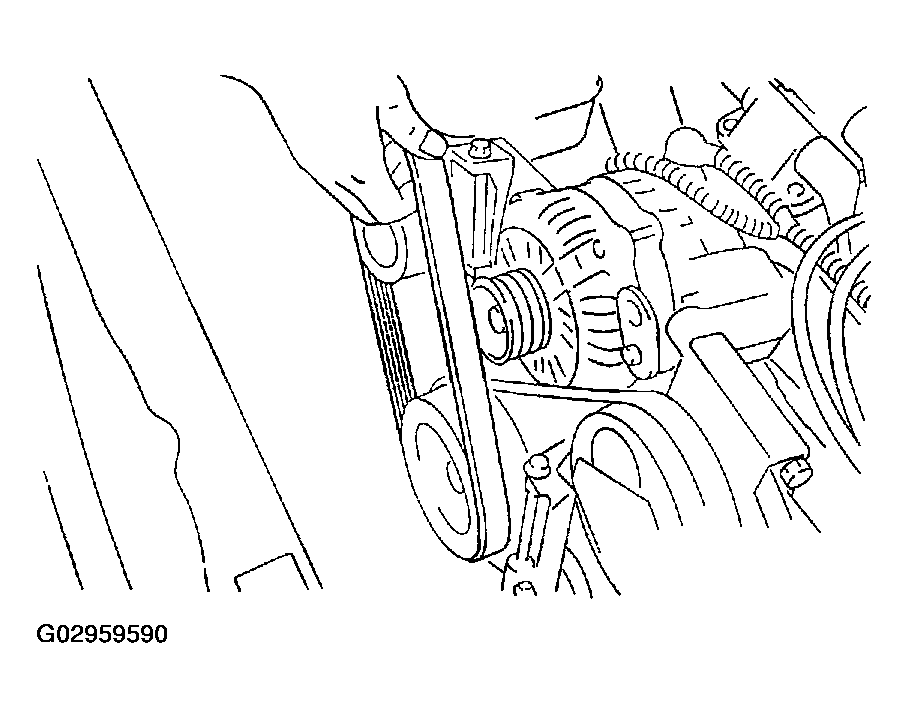

      Fig 6: Removing Power Steering Pump Drive V-Belt
      G02959590Courtesy of SUBARU OF AMERICA, INC.
    4. Remove bolts which hold power steering pipes onto intake manifold protector.
      NOTE: Do not disconnect power steering hose.
