2002 Subaru Legacy GT Limited, AutomaticFACTORY OEM SERVICE PROCEDURE
Intake Manifold: Disassembly

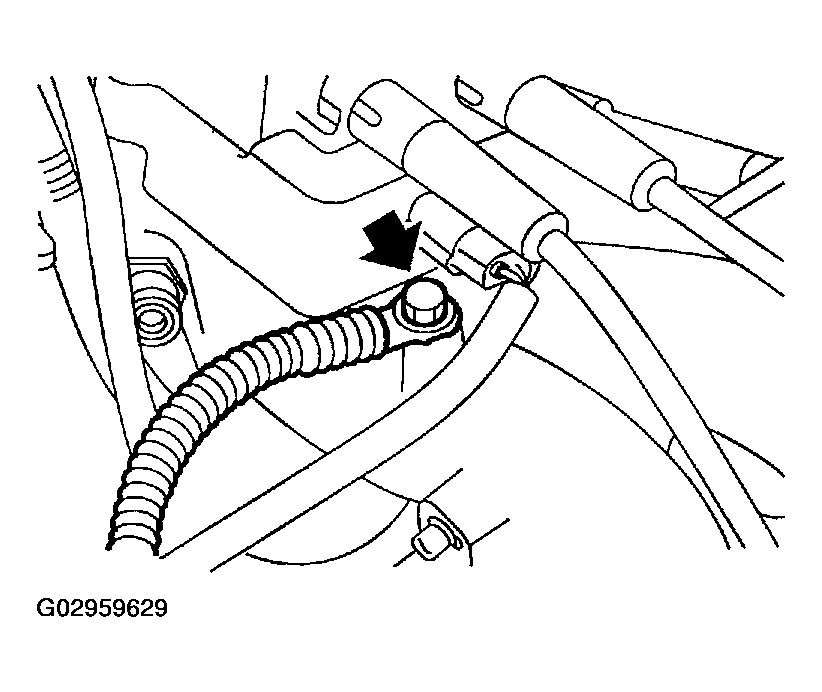

- Disconnect engine ground terminal from intake manifold.

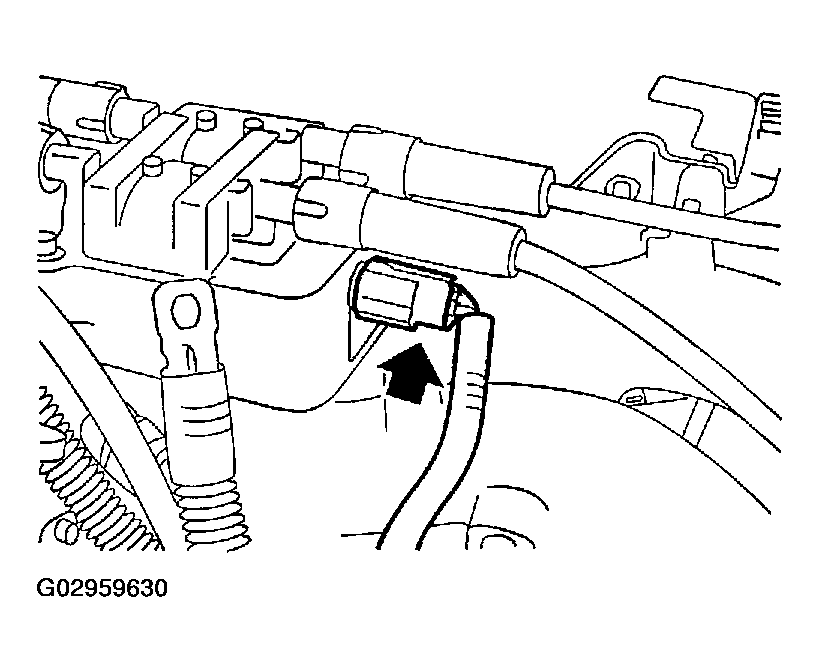

- Disconnect connector from ignition coil and ignitor assembly.

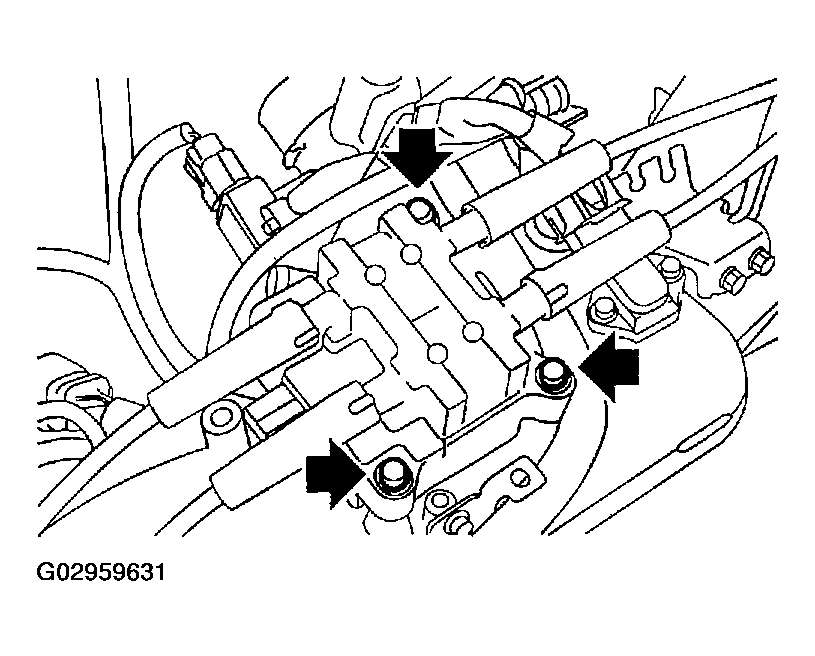

- Remove ignition coil and ignitor assembly.

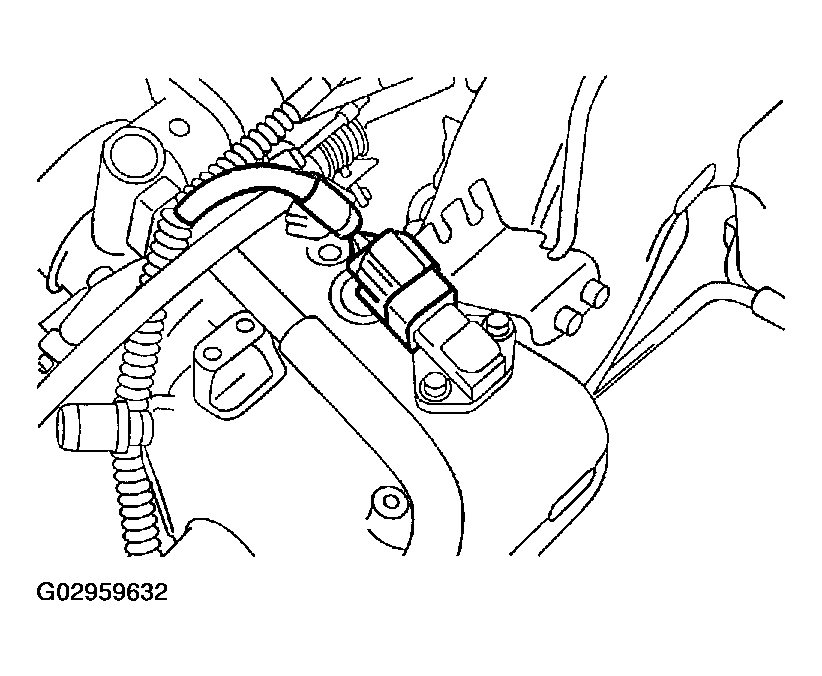

- Disconnect connector from intake air temperature and pressure sensor.

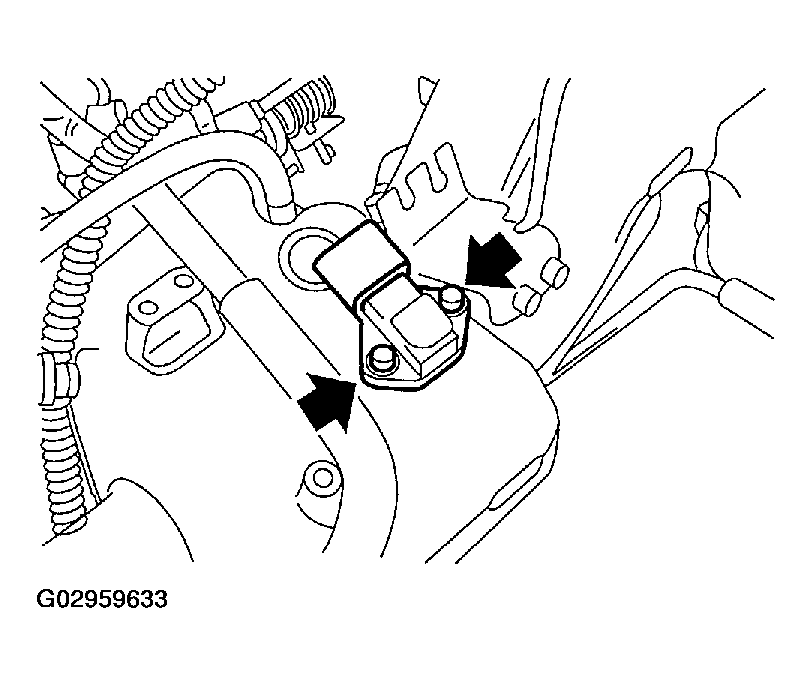

- Remove intake air temperature and pressure sensor from intake manifold.

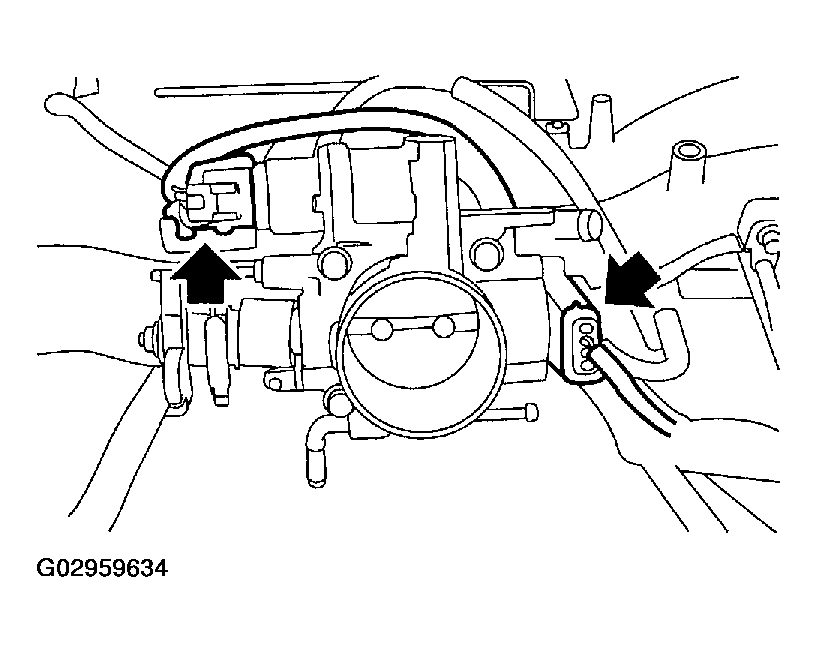

- Disconnect connectors from throttle position sensor and idle air control solenoid valve.

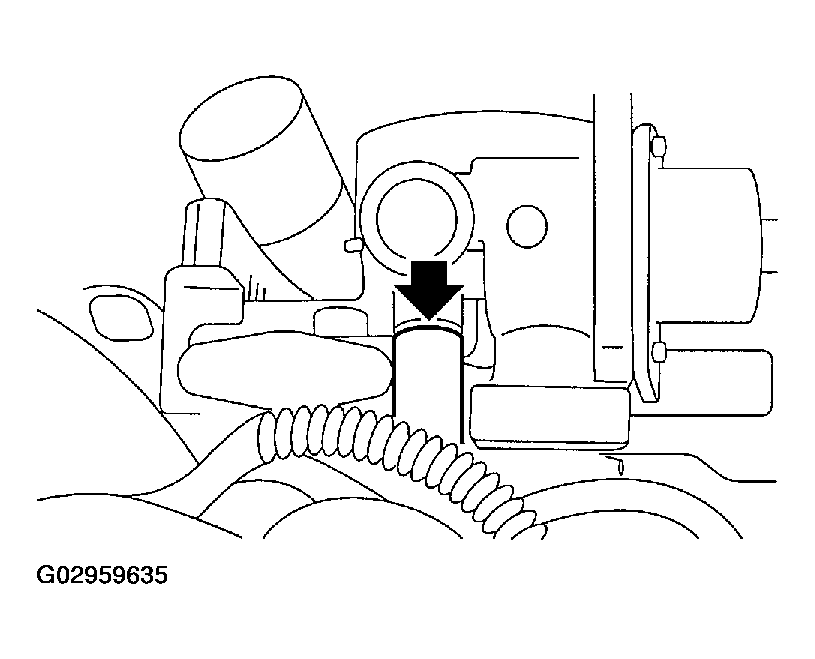

- Disconnect air by-pass hose from throttle body.

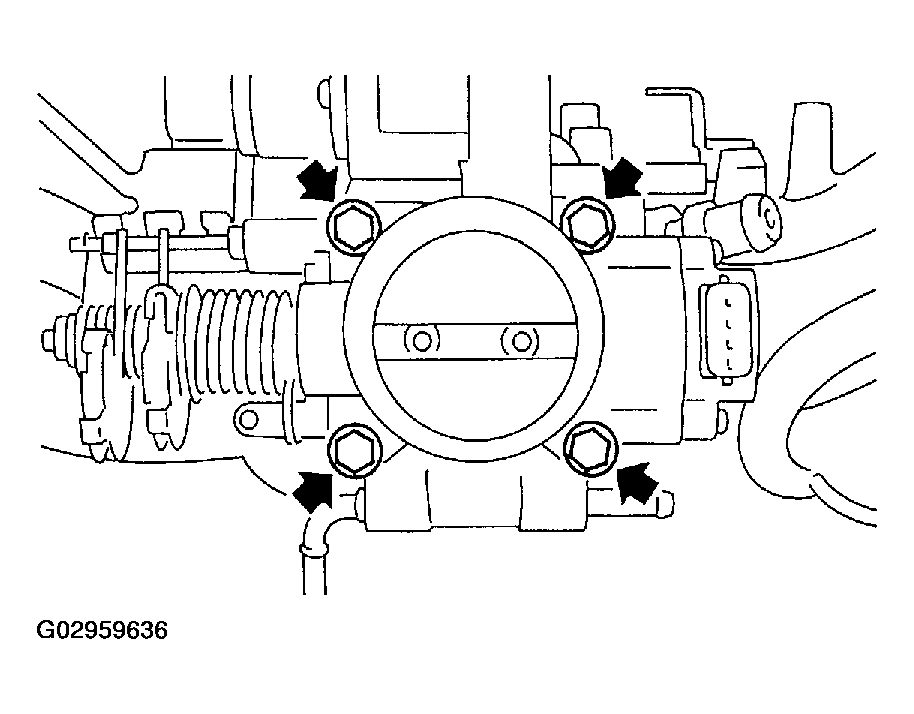

- Remove throttle body.
- Disconnect connector from air assist injector solenoid valve.

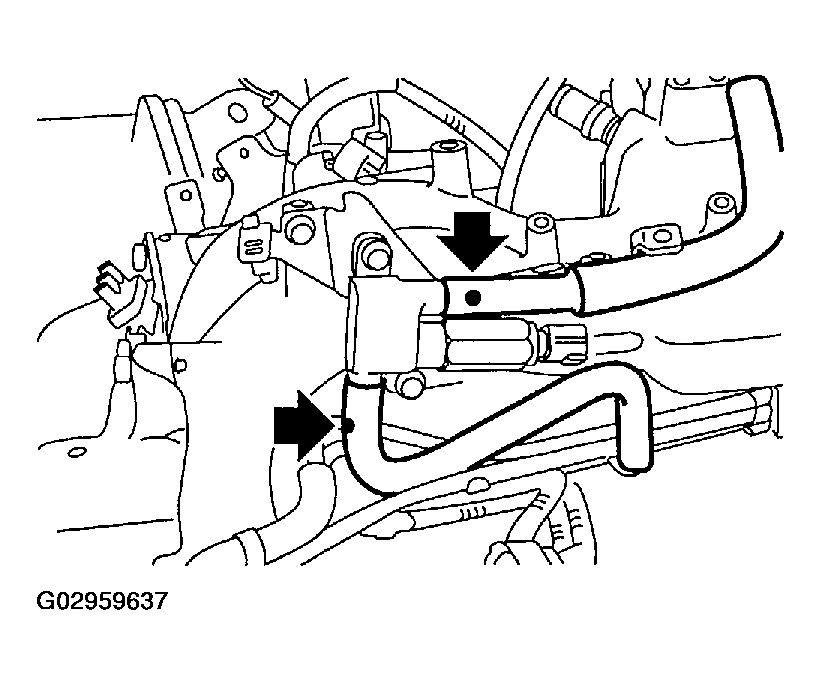

- Disconnect air by-pass hoses from air assist solenoid valve.

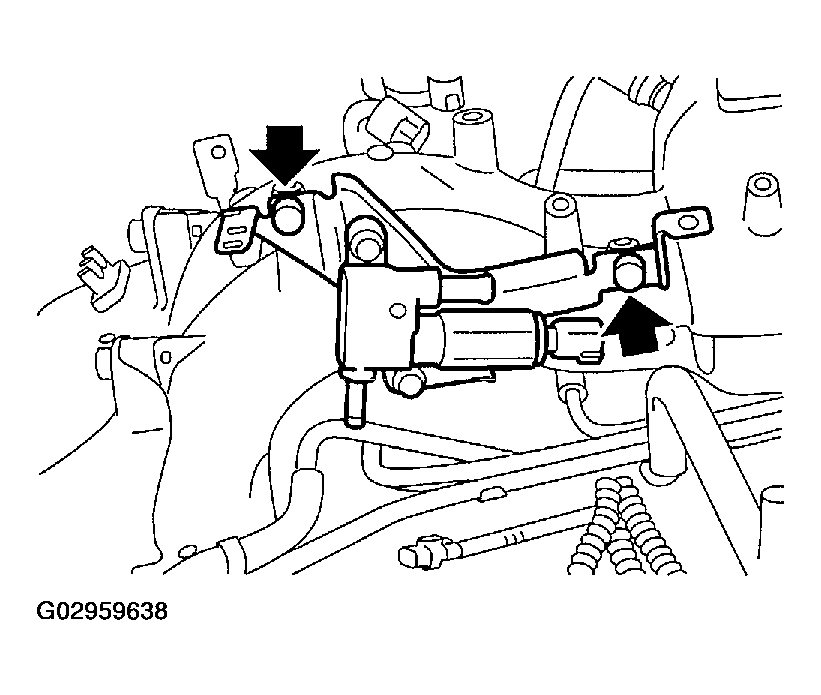

- Remove air assist injector solenoid valve from intake manifold.

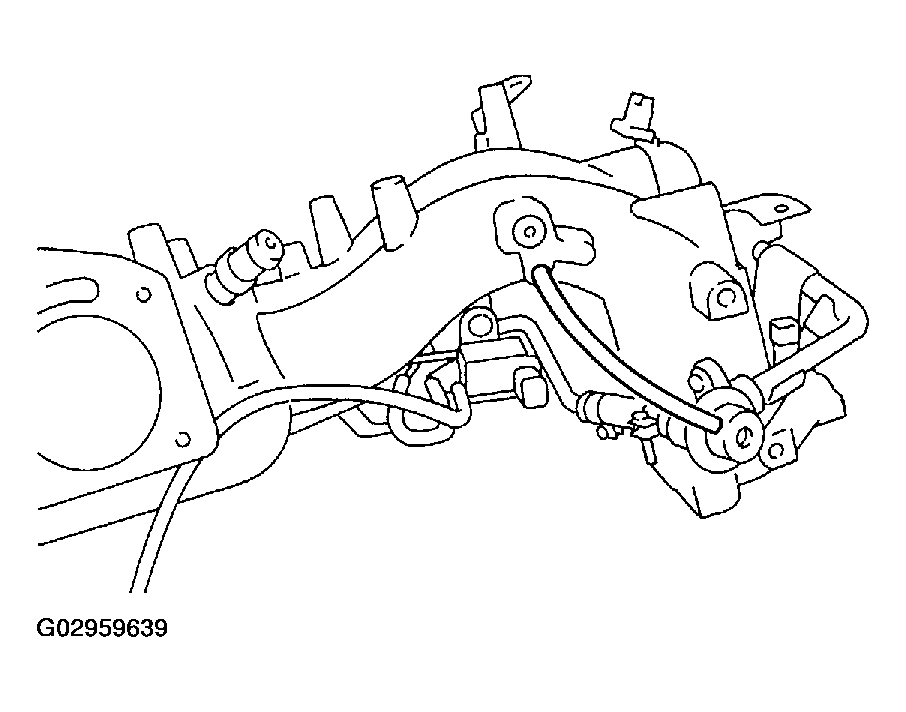

- Disconnect pressure regulator vacuum hose from intake manifold.

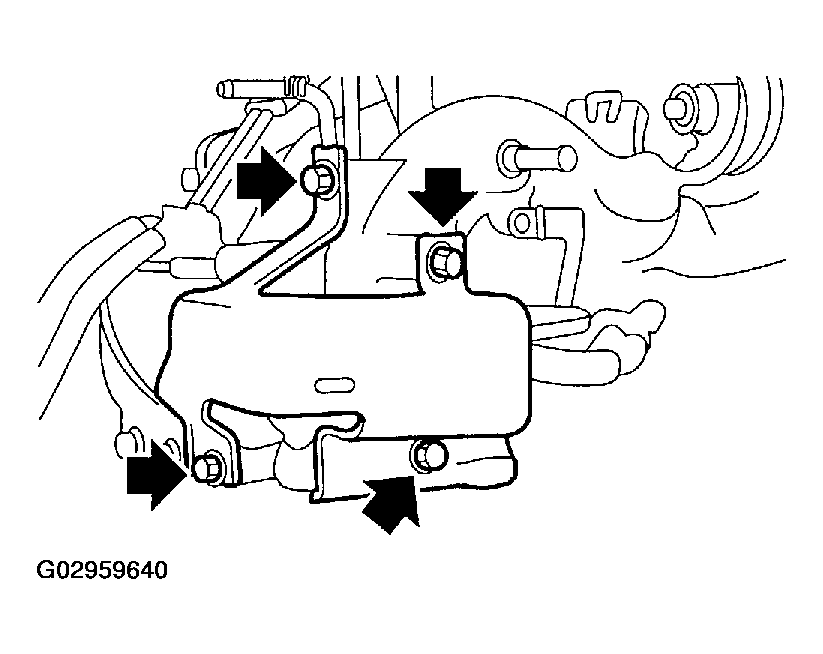

- Remove fuel pipe protector LH.
