Select Cable: Adjustment
- Prior to removal, set lever to "N" position.
- Lift-up the vehicle.

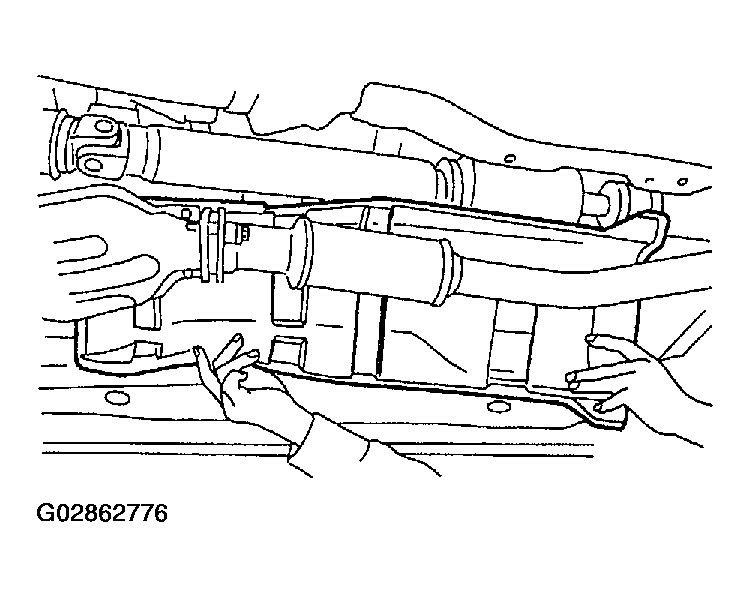

- Remove heat shield cover.

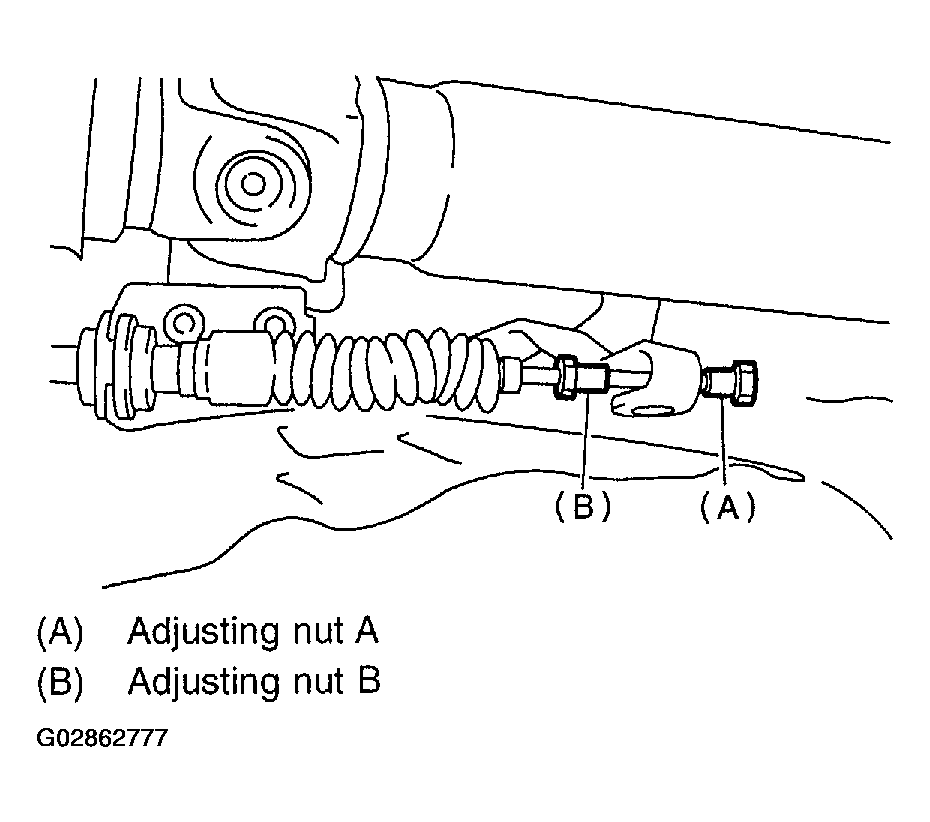

- Loosen the adjusting nut on each side.

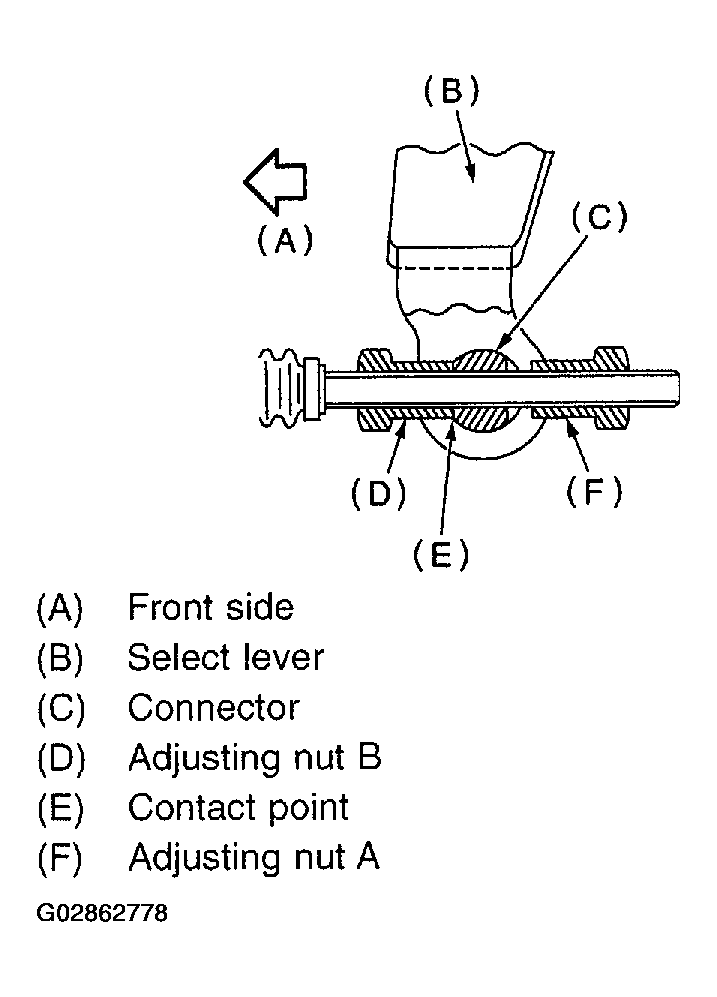

- Turn adjusting nut B until it lightly touches the connector.

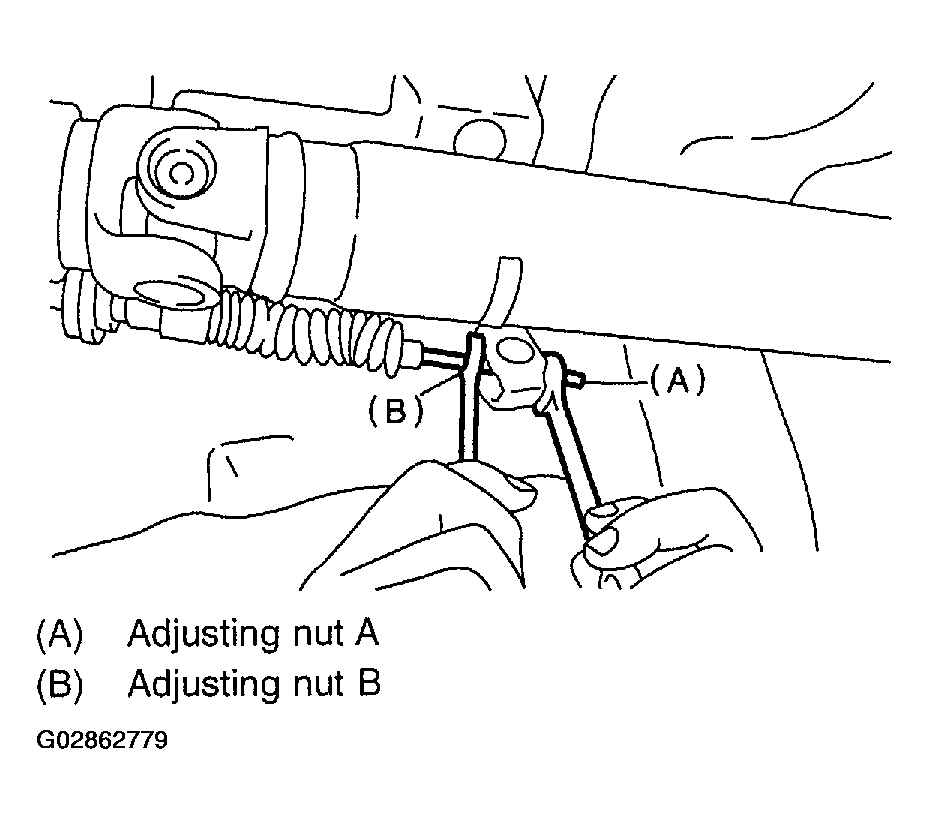

- While preventing adjusting nut B from moving with a wrench, tighten adjusting nut A.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
- After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
