2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
MT Gear Shift Lever: Disassembly

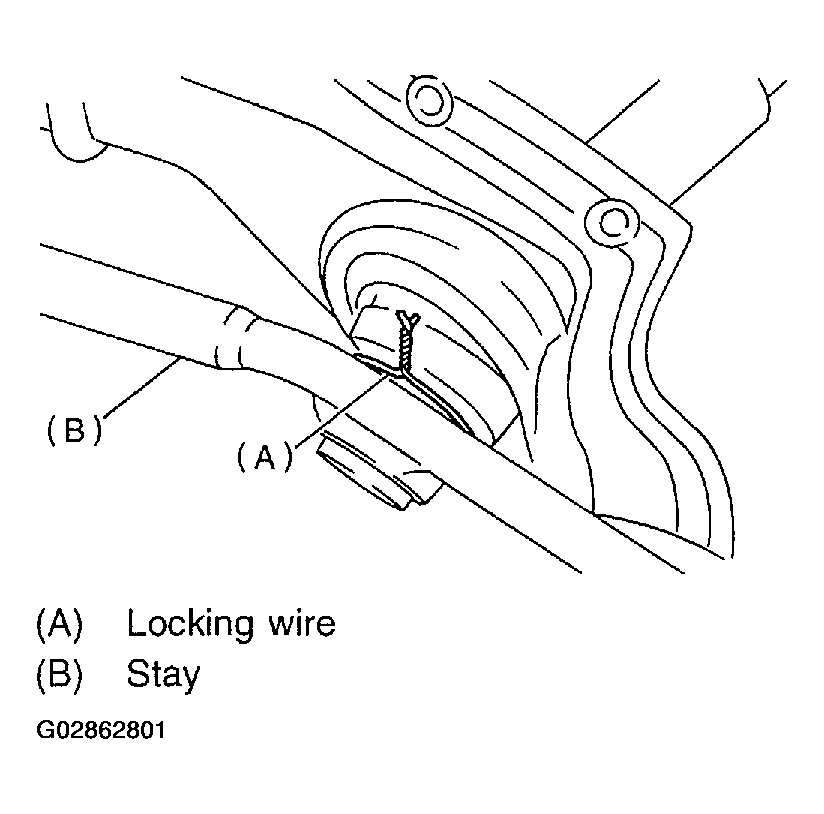

- Disassemble locking wire.

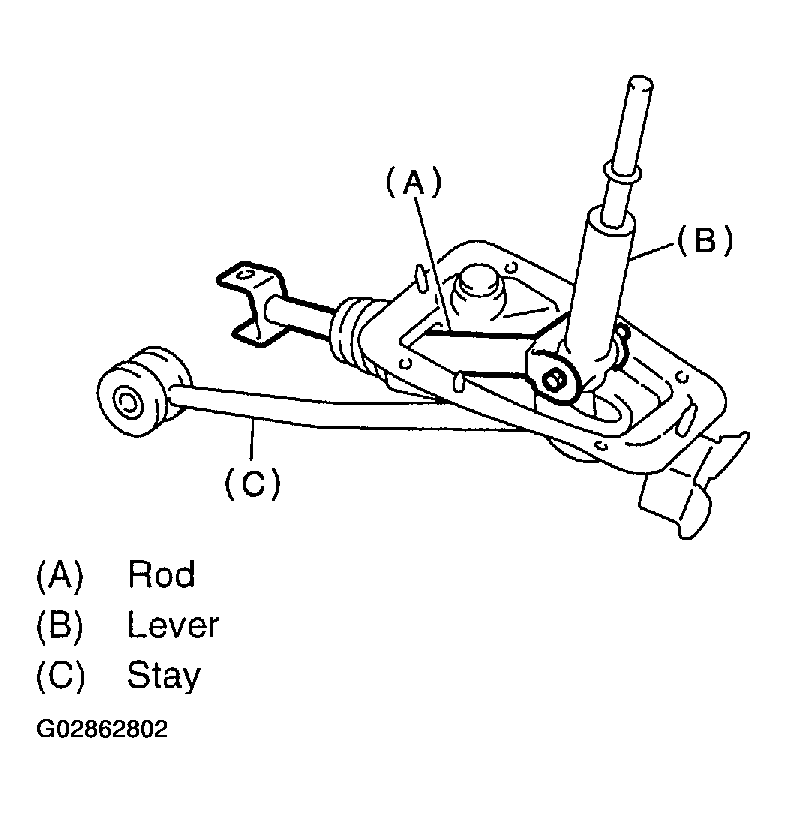

- Remove rod from gear shift lever.

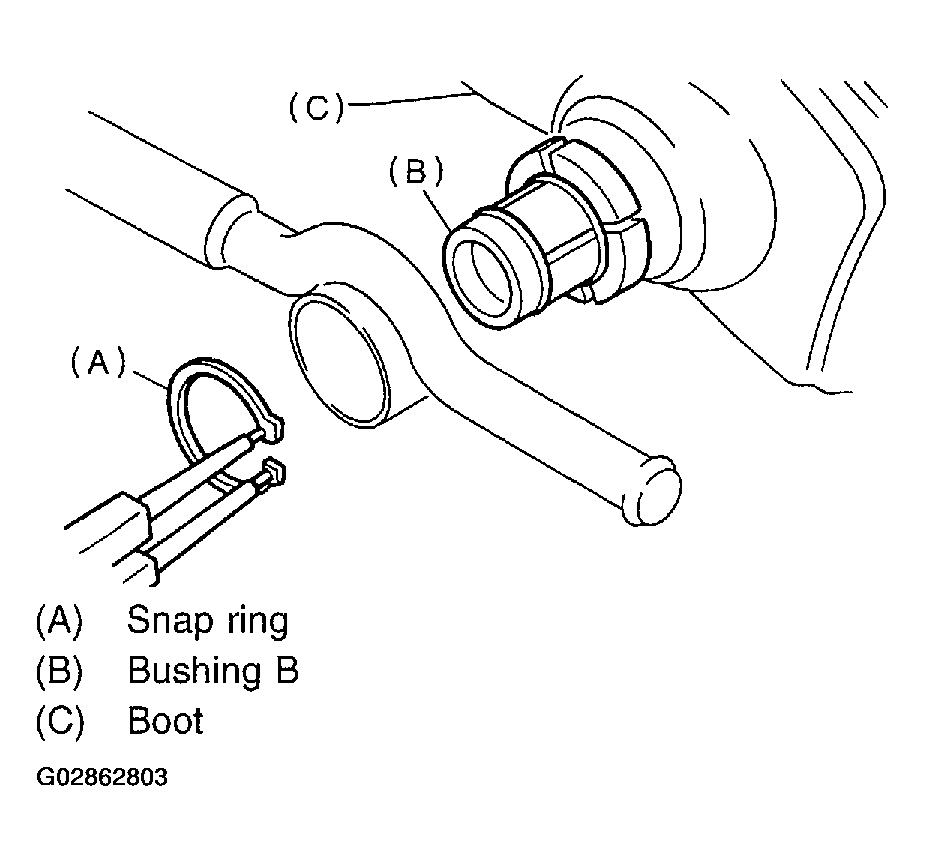

- Remove snap ring from bushing D, then disconnect stay.
- Remove boot from gear shift lever.

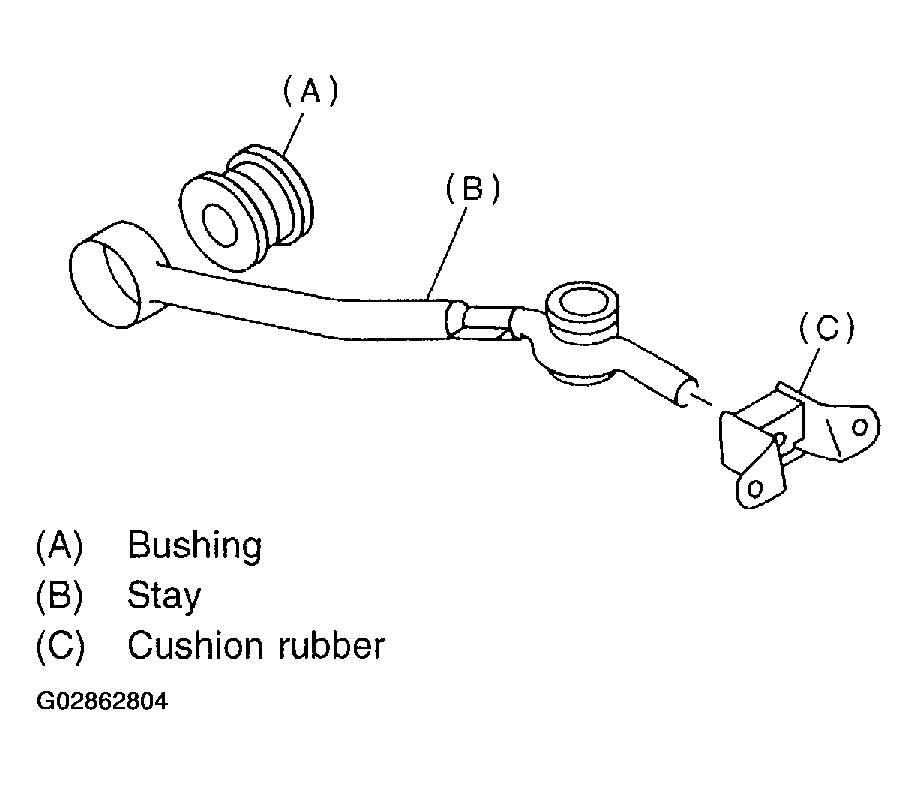

- Remove bushing and cushion rubber from stay.

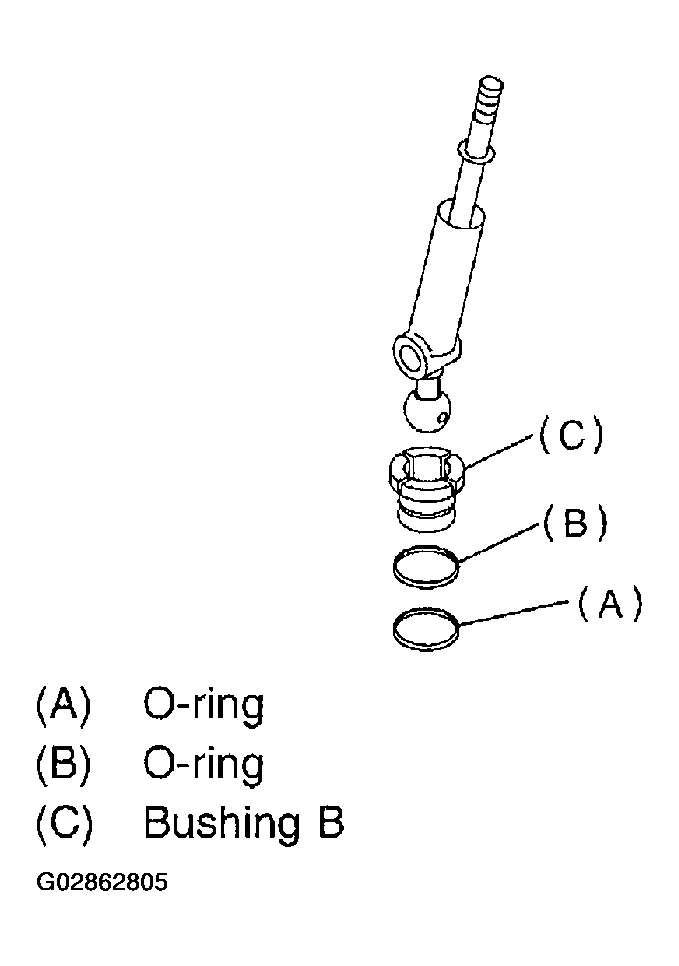

- Remove O-ring, then disconnect bushing B.

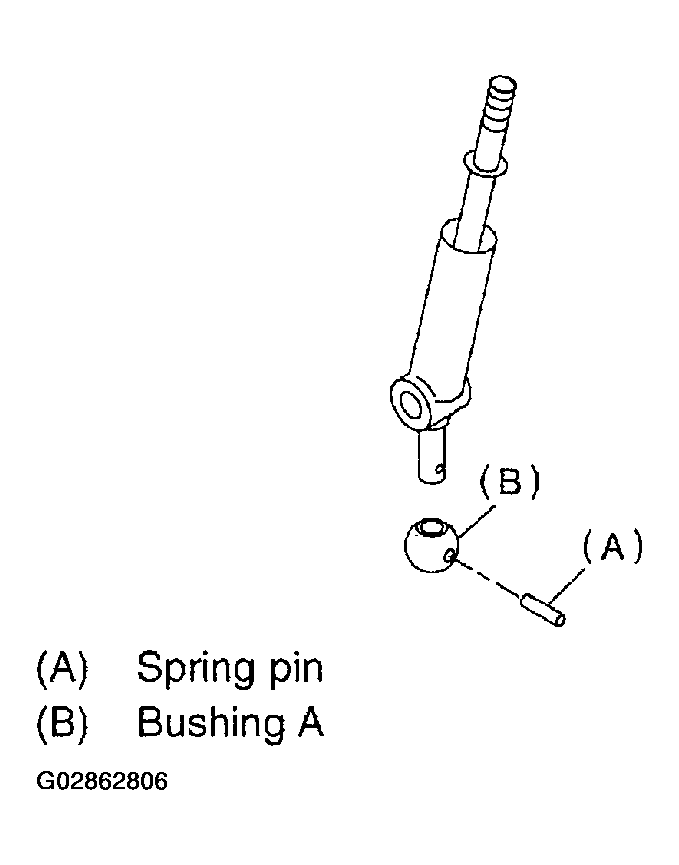

- Draw out spring pin, then remove bushing A from gear shift lever.
