Automatic Transmission Assembly: Installation

Tightening torque:  38 N.m (3.9 kgf-m, 28 ft-lb)

ST 498277200:  STOPPER SET

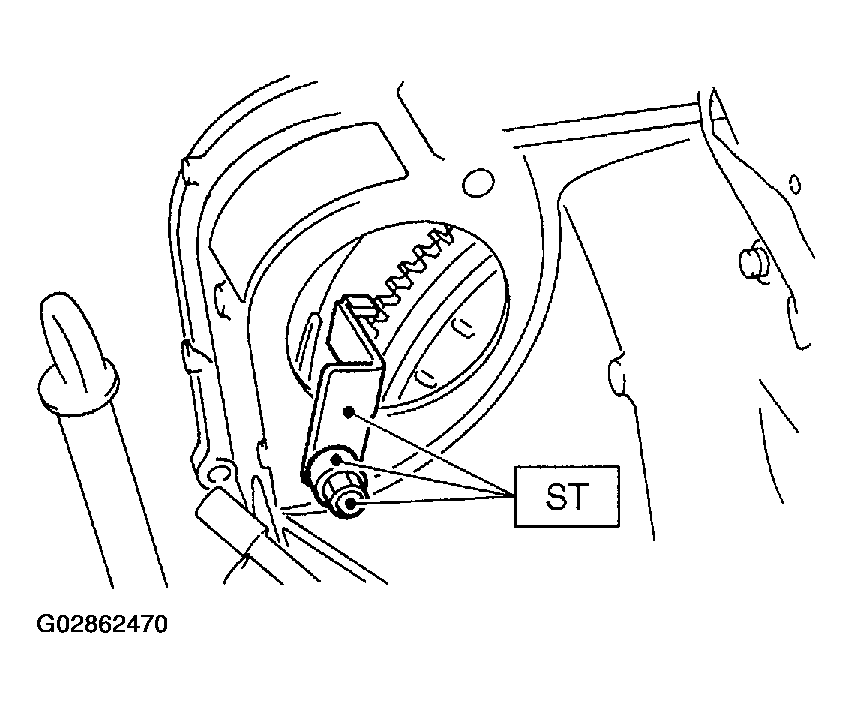

Fig 1: Installing Stopper Set To Torque Converter Clutch Case

Courtesy of SUBARU OF AMERICA, INC.

1. Gradually raise transmission with transmission jack.

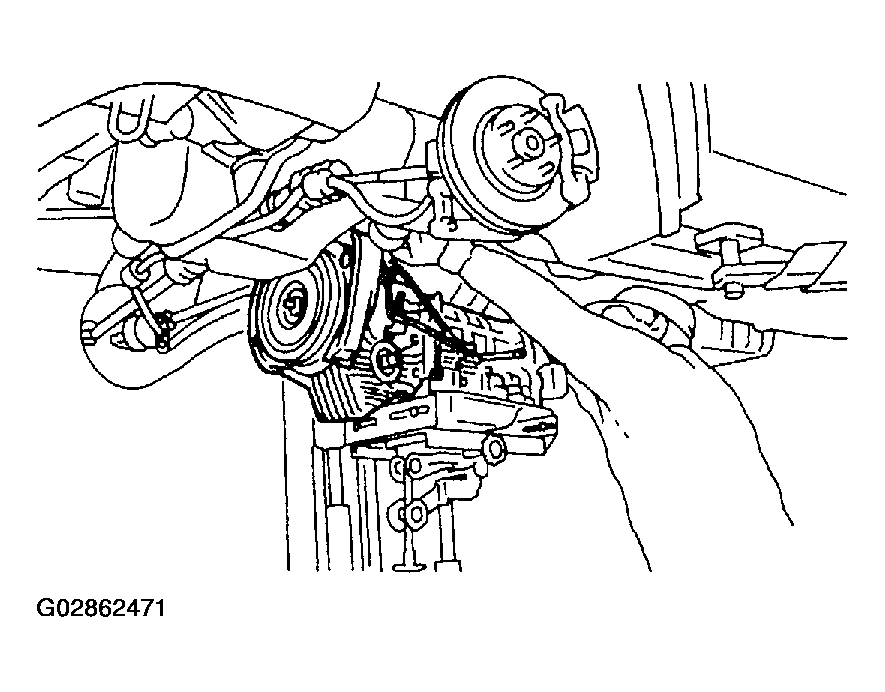

   Fig 2: Raising Transmission With Transmission Jack

   Courtesy of SUBARU OF AMERICA, INC.
2. Engage them at splines.

Tightening torque:

1. T1:  35 N.m (3.6 kgf-m, 26 ft-lb)
2. T2:  70 N.m (7.1 kgf-m, 51.4 ft-lb)

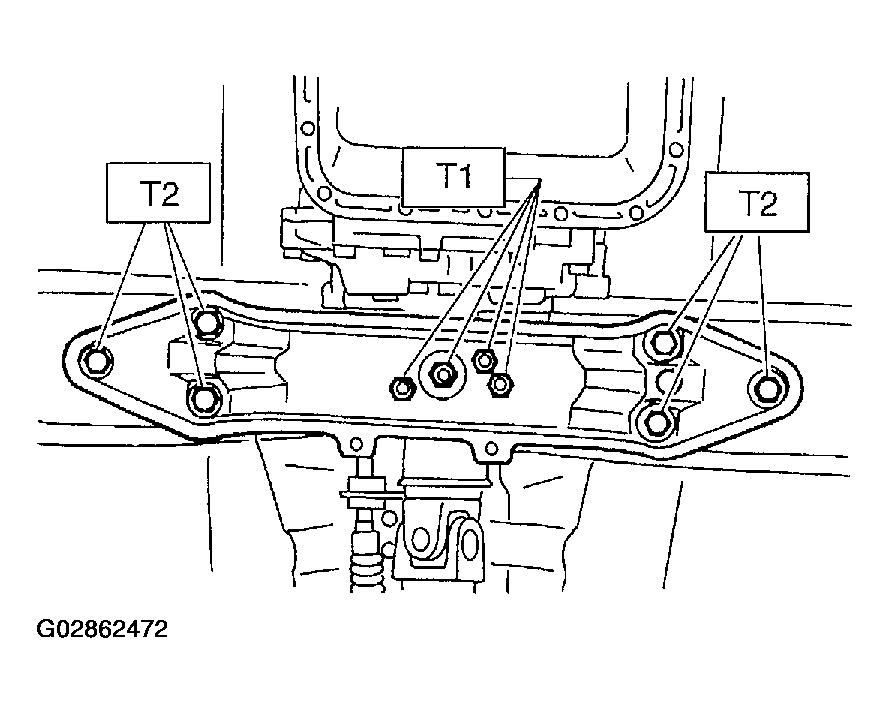

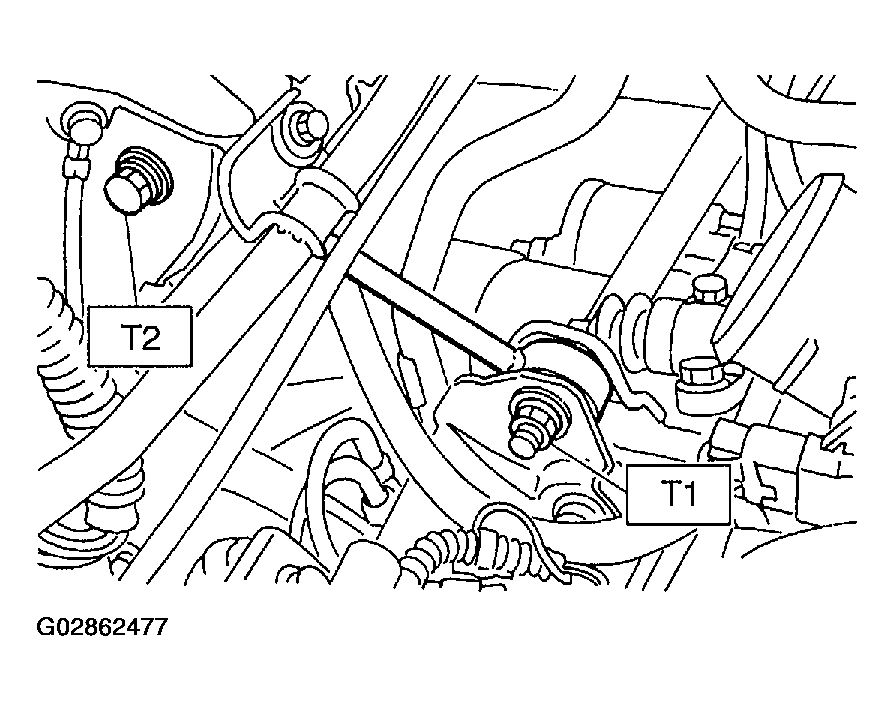

Fig 3: Installing Transmission Rear Crossmember

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  50 N.m (5.1 kgf-m, 36.9 ft-lb)

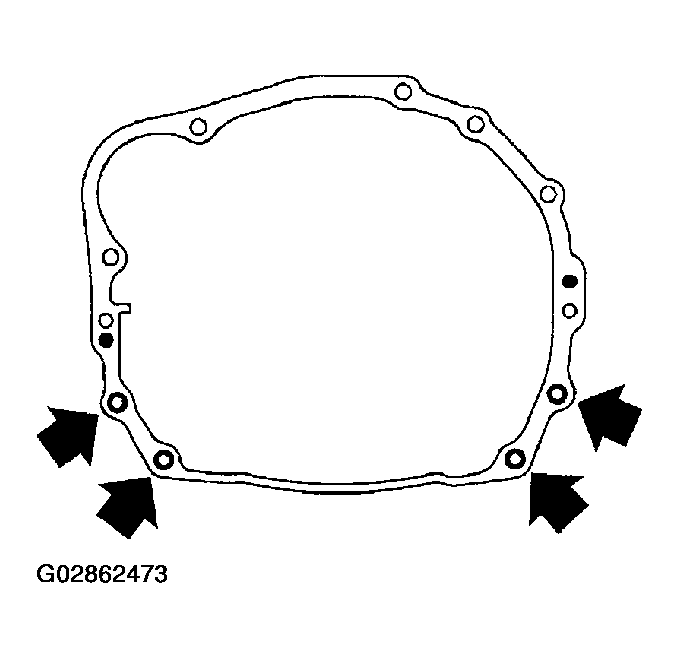

Fig 4: Tightening Nuts And Bolts Which Hold Lower Side Of Transmission To Engine

Courtesy of SUBARU OF AMERICA, INC.

1. Remove ST from torque converter clutch case.
   NOTE: Be careful not to drop the ST into the torque converter clutch case when removing ST.

   ST 498277200:  STOPPER SET

2. Install starter. Refer to INSTALLATION under STARTER .
3. Tighten bolt which holds right upper side of transmission to engine.

Tightening torque:  50 N.m (5.1 kgf-m, 36.9 ft-lb)

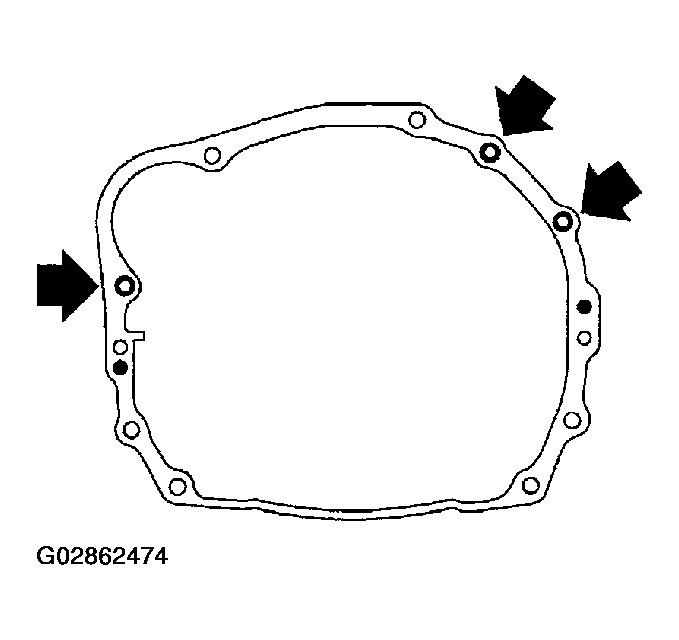

Fig 5: Tightening Bolt Which Holds Right Upper Side Of Transmission To Engine

Courtesy of SUBARU OF AMERICA, INC.

1. Tighten bolts which hold torque converter clutch to drive plate.
2. Tighten other bolts while rotating the engine by using ST.
   CAUTION: Be careful not to drop bolts into torque converter clutch housing.

   ST 499977300:  CRANK PULLEY WRENCH

   Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

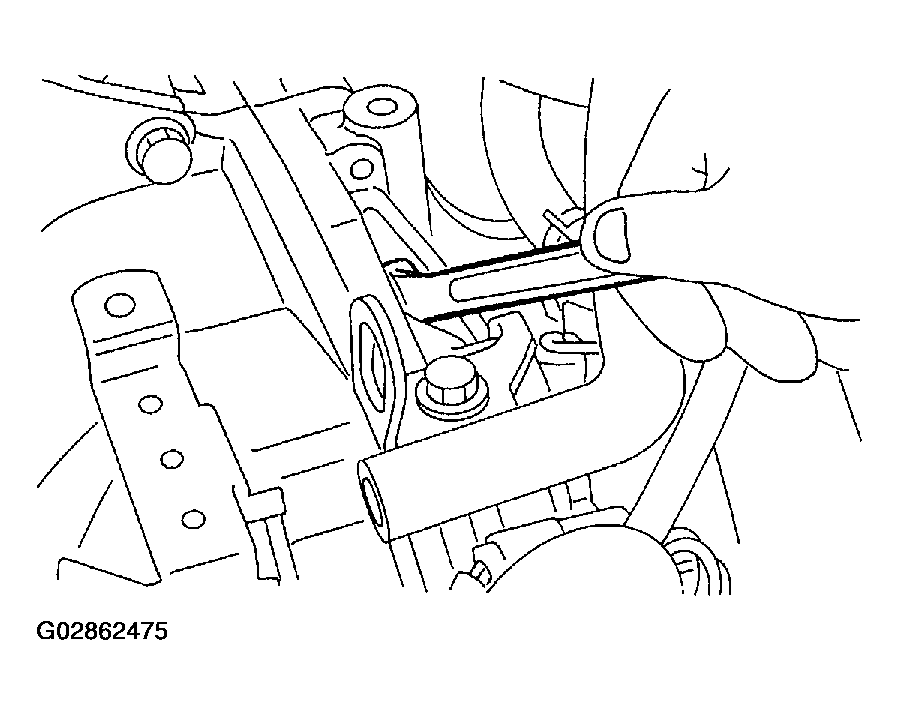

   Fig 6: Installing Torque Converter Clutch To Drive Plate

   Courtesy of SUBARU OF AMERICA, INC.
3. Clog plug onto service hole.

Tightening torque:

1. TV:  50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2:  58 N.m (5.9 kgf-m, 43 ft-lb)

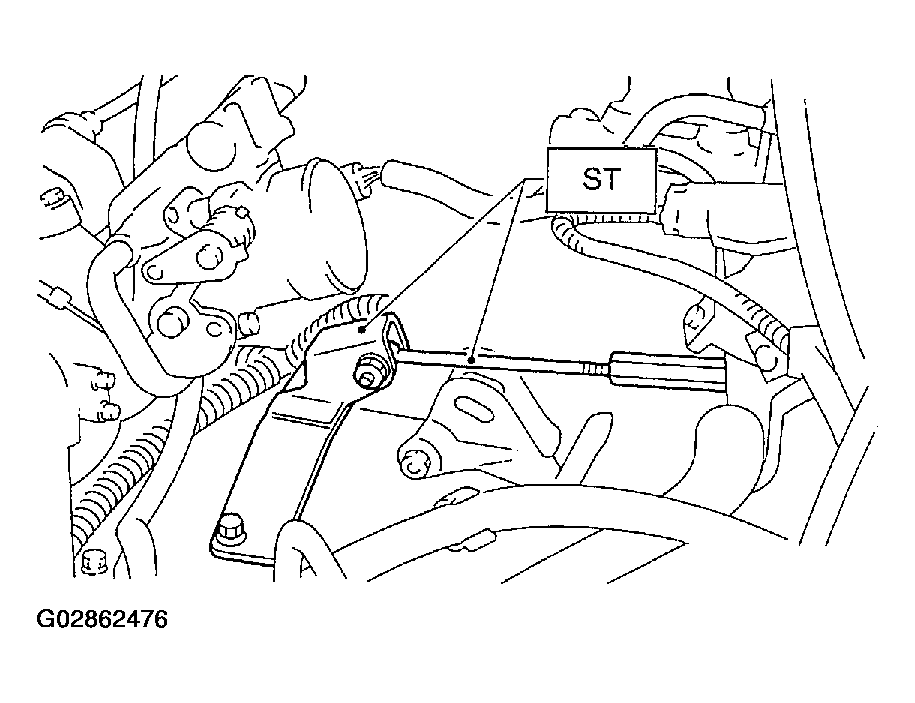

Fig 8: Installing Pitching Stopper

Courtesy of SUBARU OF AMERICA, INC.

Install front drive shafts into transmission.

1. Lift-up the vehicle.
2. Install front drive shaft into transmission.
3. Drive spring pin into chamfered hole of drive shaft.
