2002 Subaru Forester Base

Select Lever: Removal

2002 Subaru Forester BaseSECTION Removal

Set vehicle on a lift.
Disconnect ground cable from battery.
Move the select lever to the "N" position.
Remove heat shield cover.

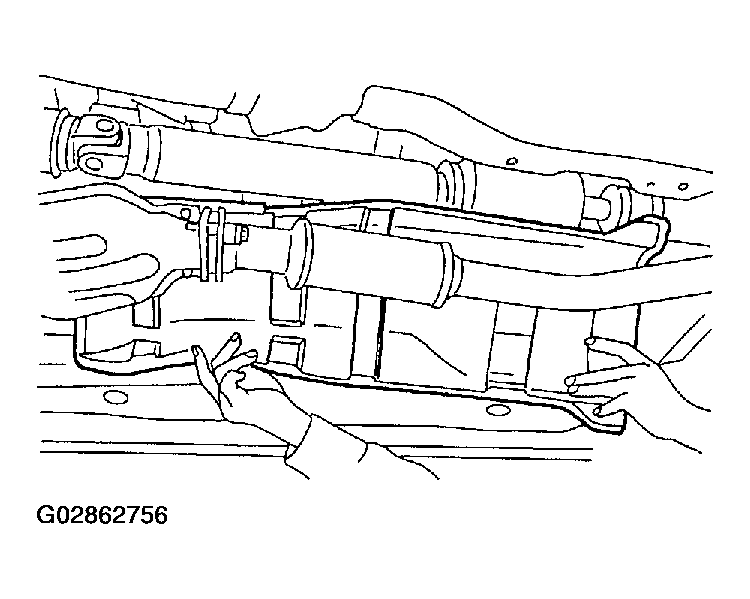

Fig 1: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect cable from select lever and then remove cable bracket.

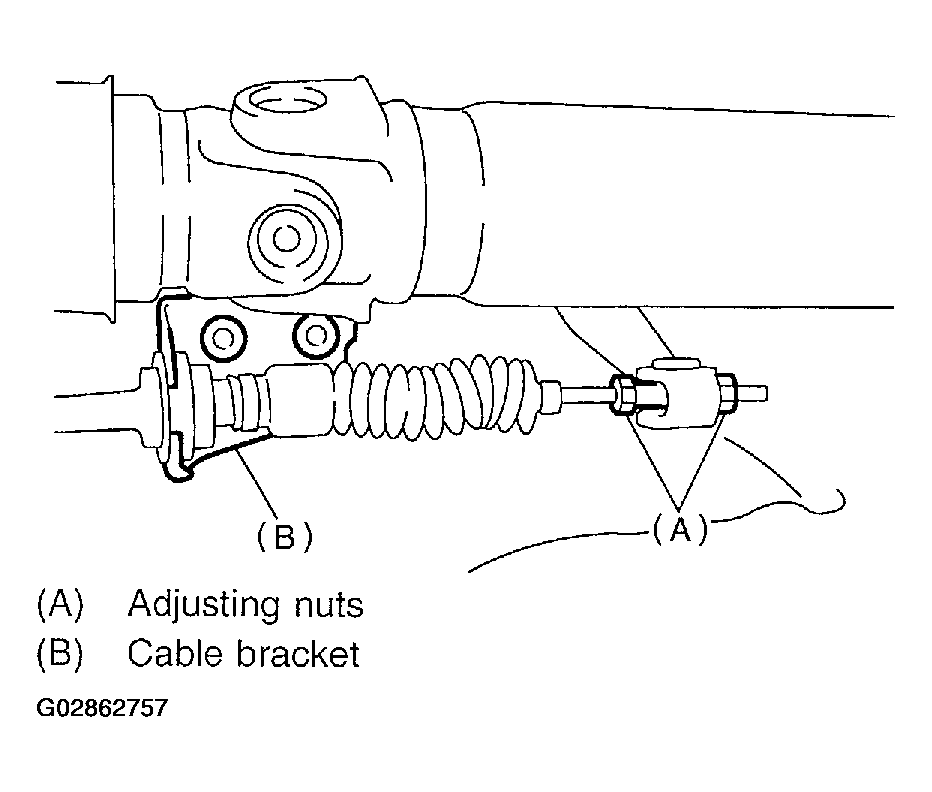

Fig 2: Disconnecting Cable From Select Lever And Removing Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the console box. Refer to REMOVAL under CONSOLE BOX .
Disconnect the connectors, then remove the bolts to take out the select lever assembly from the body.

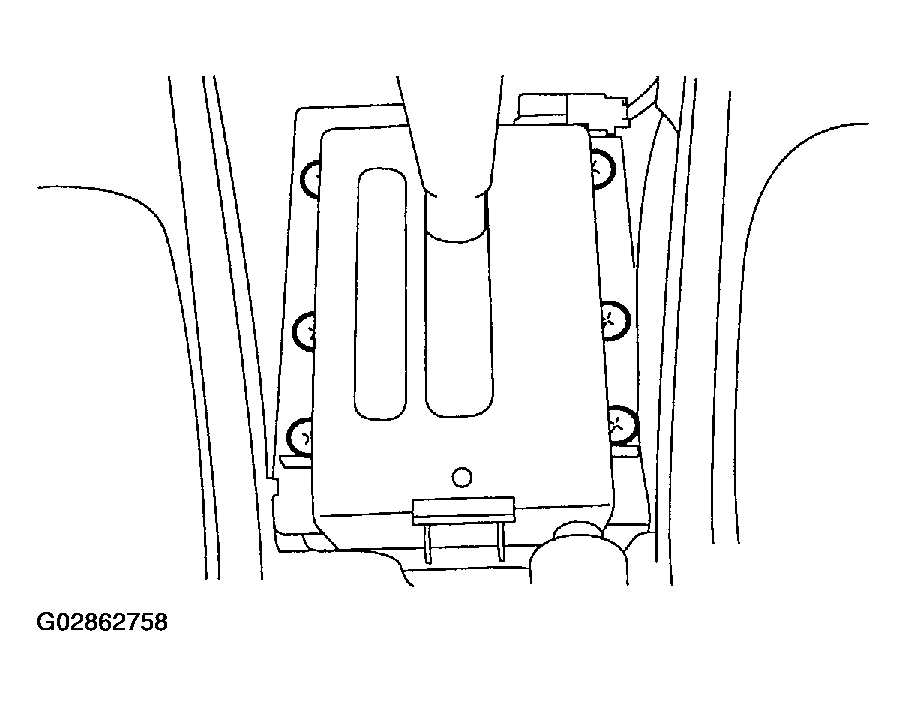

Fig 3: Taking Out Select Lever Assembly From Body
Courtesy of SUBARU OF AMERICA, INC.
