2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Select Lever: Assembly
- Clean all parts before assembly.
- Apply grease [NIGTIGHT LYW No. 2 or equivalent] to each part. Refer to COMPONENT under GENERAL DESCRIPTION .
- Assemble in the reverse order of disassembly.NOTE:

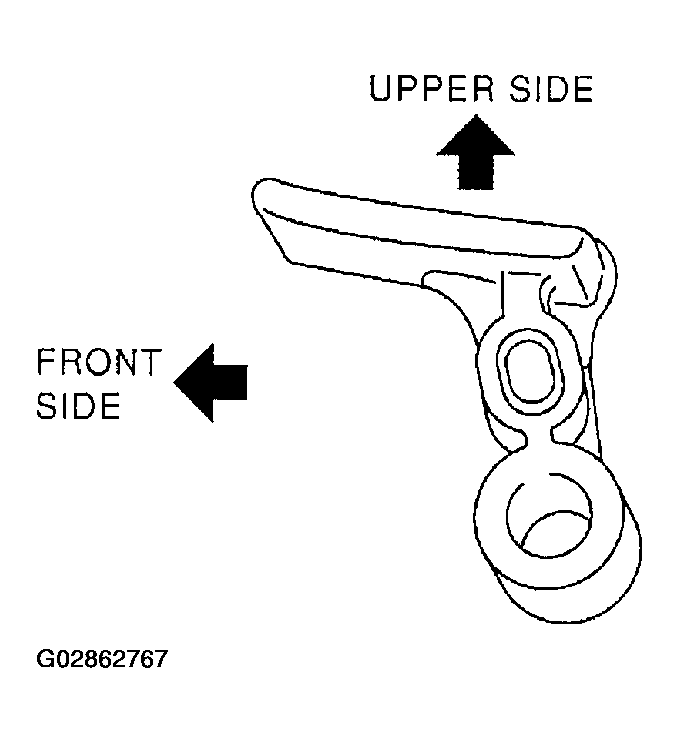

- When installing the lock plate, be careful to position it in the correct direction.

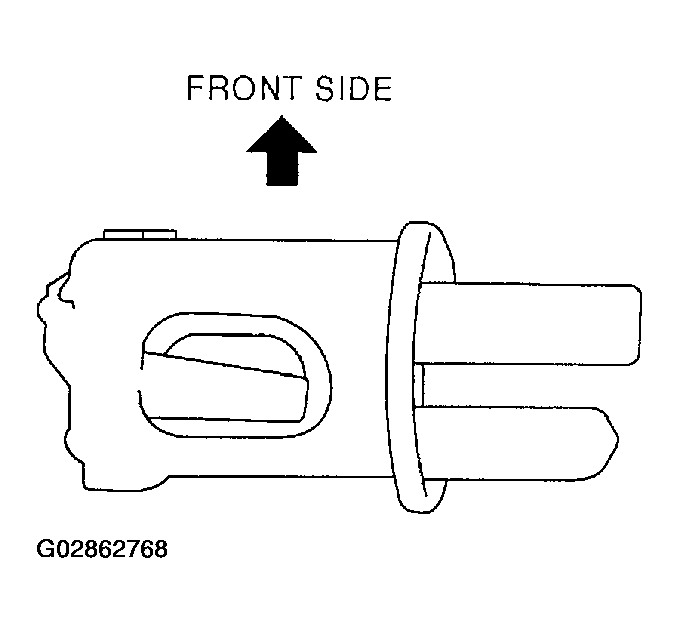

- Be careful to install the spring and button into the select lever grip in the correct direction.
- After completing the fitting, transfer the select lever to position "P"-"1", then check whether the indicator and select lever agree, whether the pointer and select lever agree, and what the operating force is.
