2002 Subaru Forester Base

Select Cable: Removal

2002 Subaru Forester BaseSECTION Removal

Prior to removal, set lever to "N" position.
Remove heat shield cover.

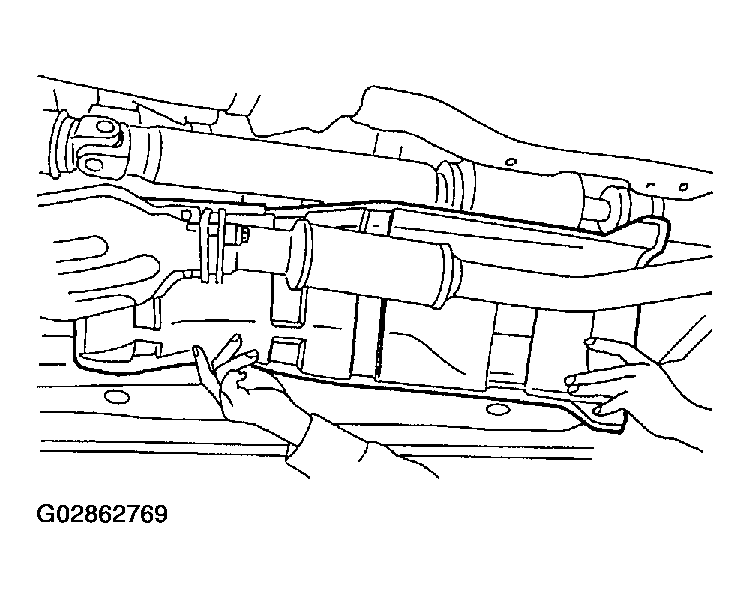

Fig 1: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove snap pin from range select lever.

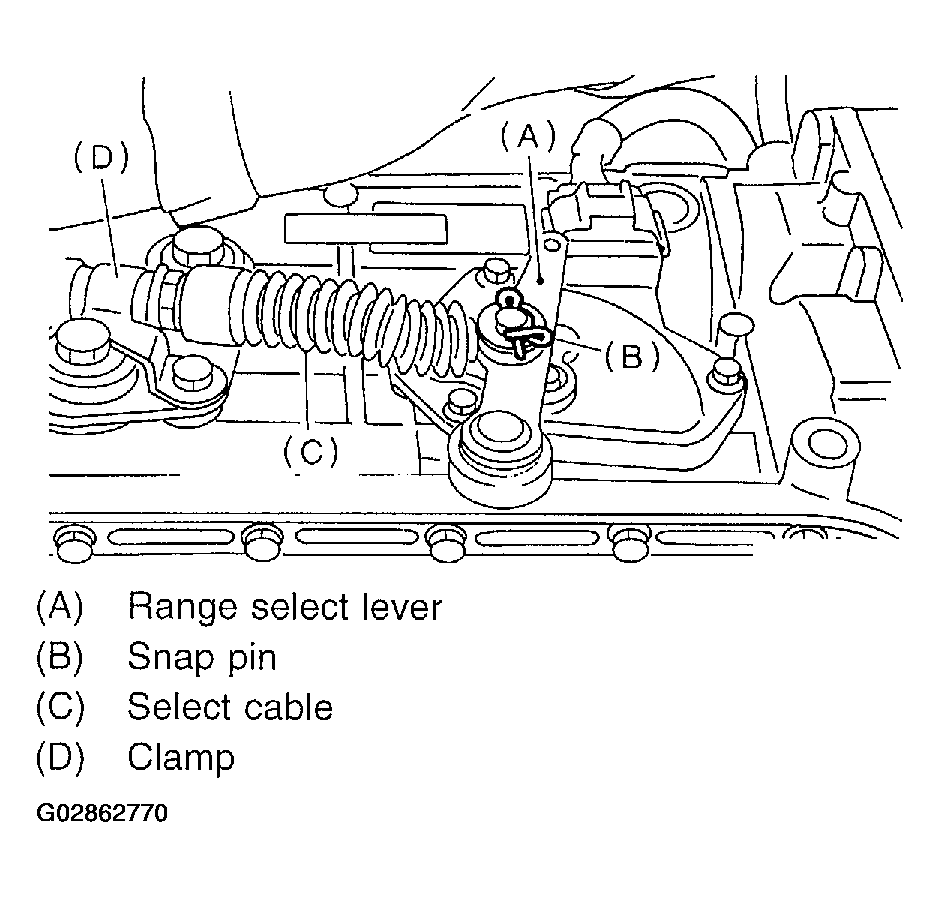

Fig 2: Removing Snap Pin From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove plate assembly from transmission case.

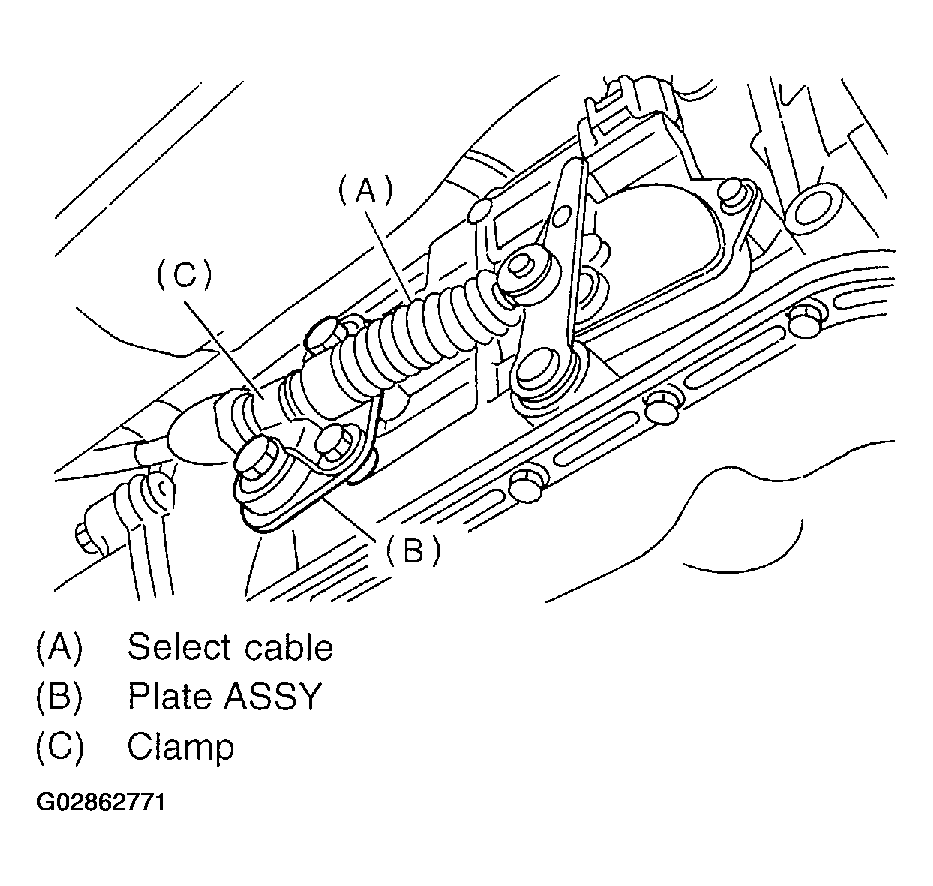

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Disconnect cable from select lever and then remove cable bracket.

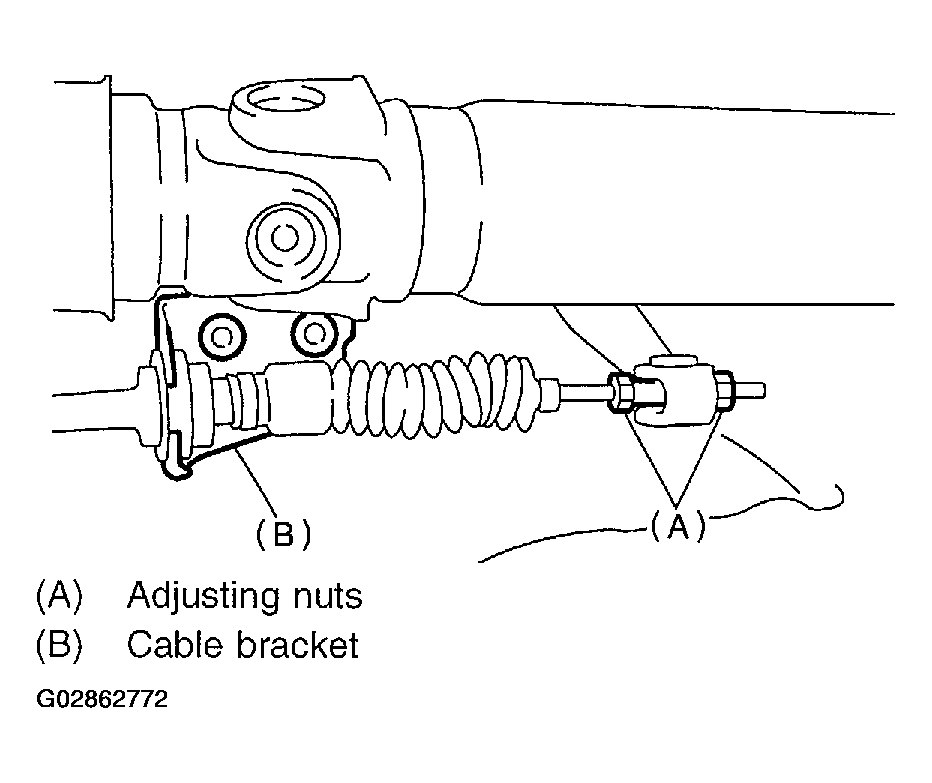

Fig 4: Disconnecting Cable From Select Lever And Removing Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove select cable from plate assembly.
