Select Cable: Installation
- Install select cable to plate assembly.
Tightening torque: 32 N.m (3.3 kgf-m, 24 ft-lb)

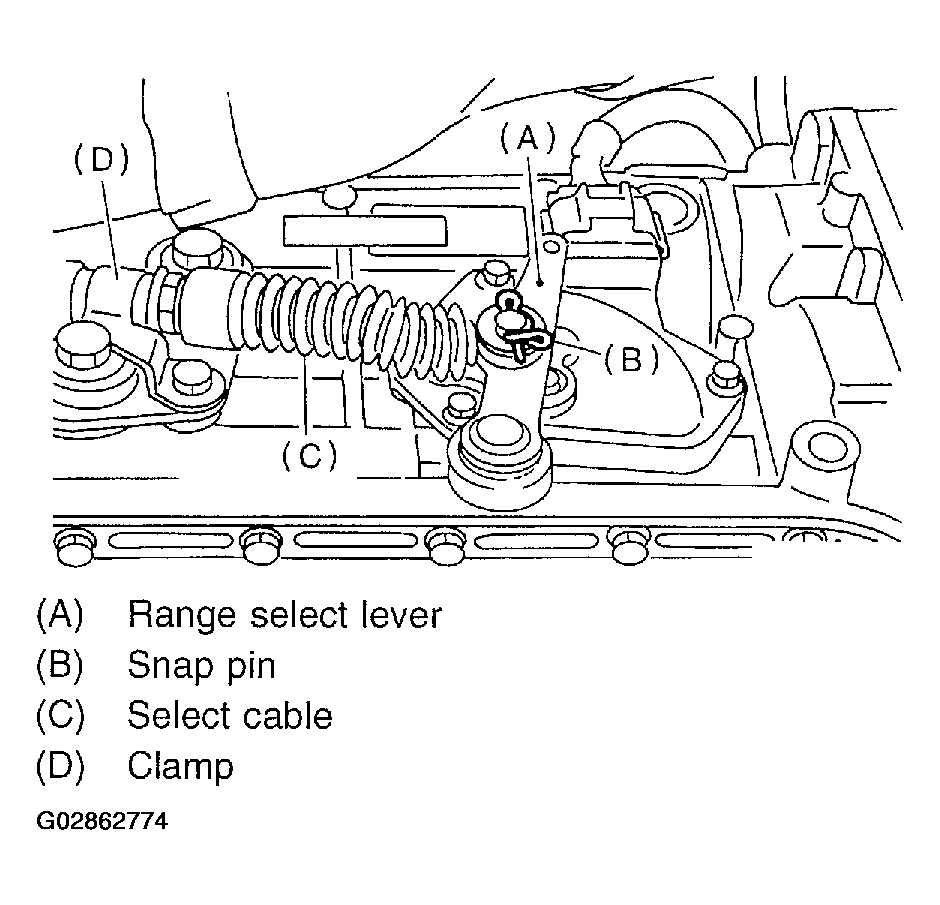

- Install select cable to range select lever.

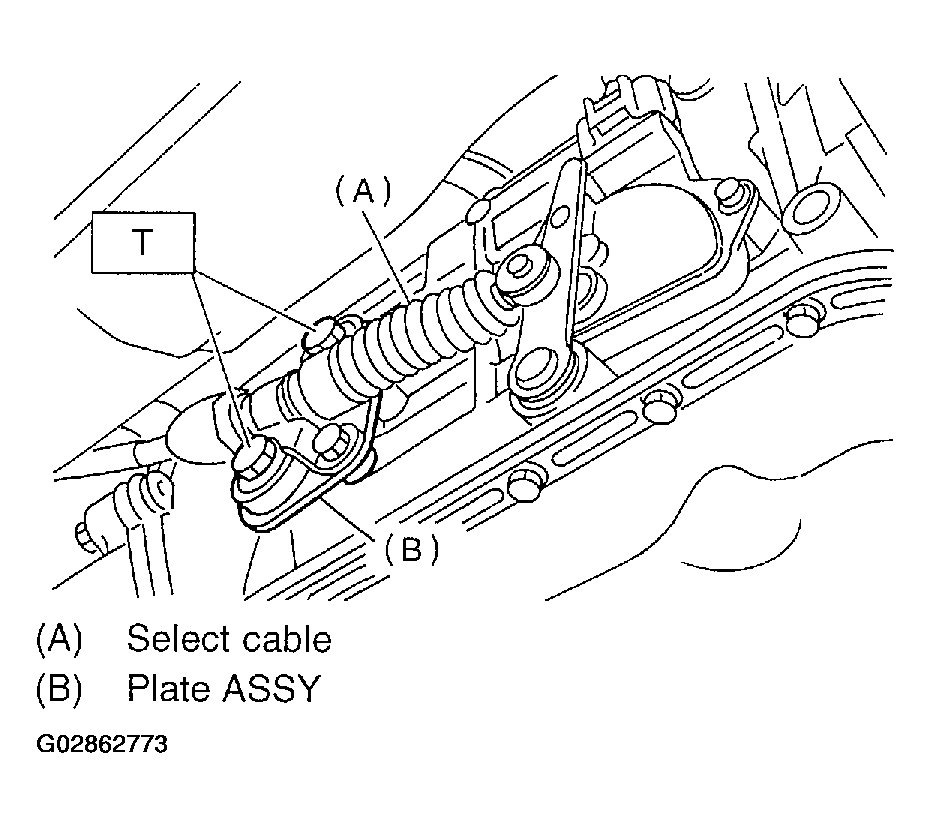

- Install plate assembly to transmission.
Tightening torque:
- T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)
- Install snap pin to range select lever.
- Move the select lever to the "N" position, then adjust the select cable position. ADJUSTMENT under Select Cable .

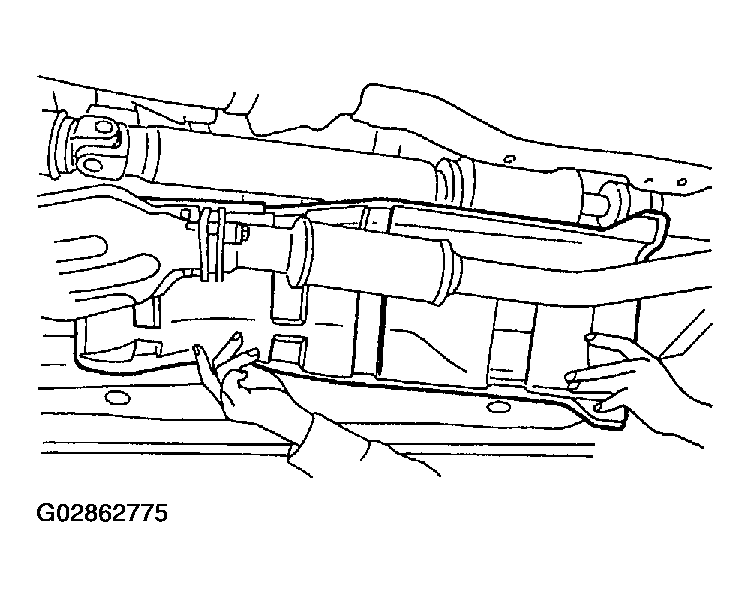

- Install heat shield cover.
