2002 Subaru Forester Base

AT Shift Lock Control Module: Removal

2002 Subaru Forester BaseSECTION Removal

Disconnect battery ground cable.

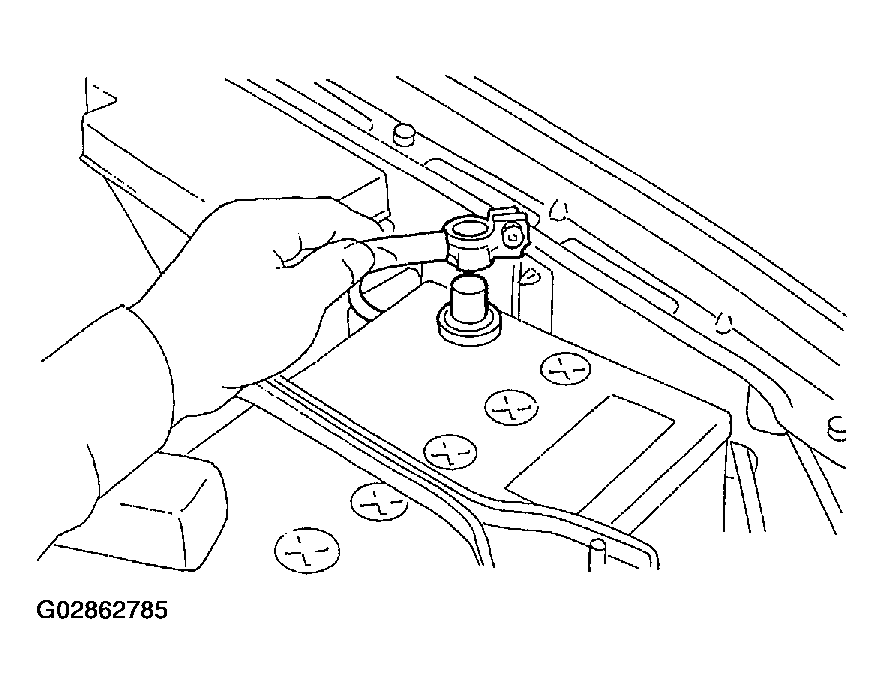

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover and then disconnect connector.

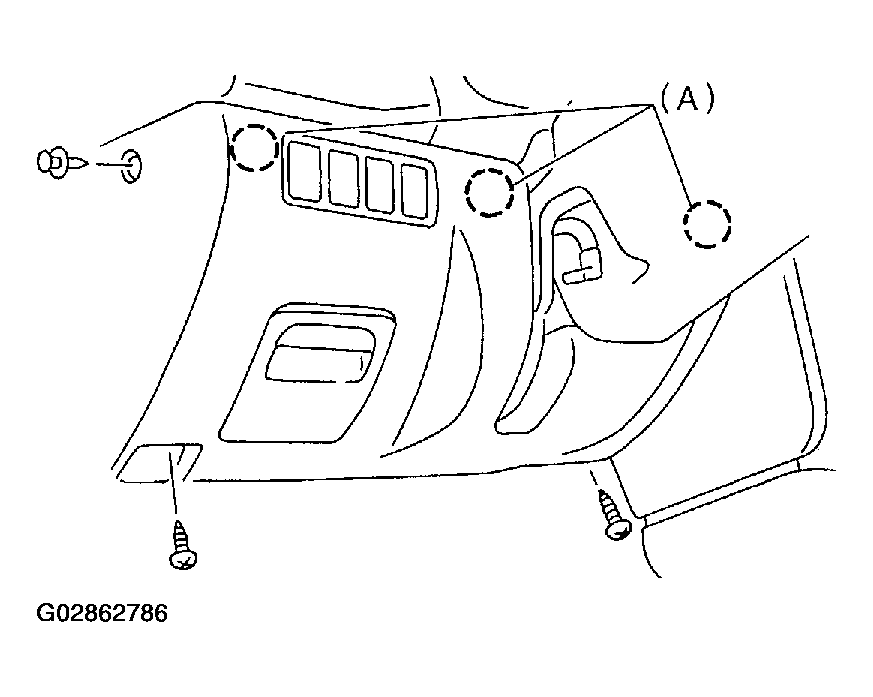

Fig 2: Removing Lower Cover And Disconnecting Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from AT shift lock control module.

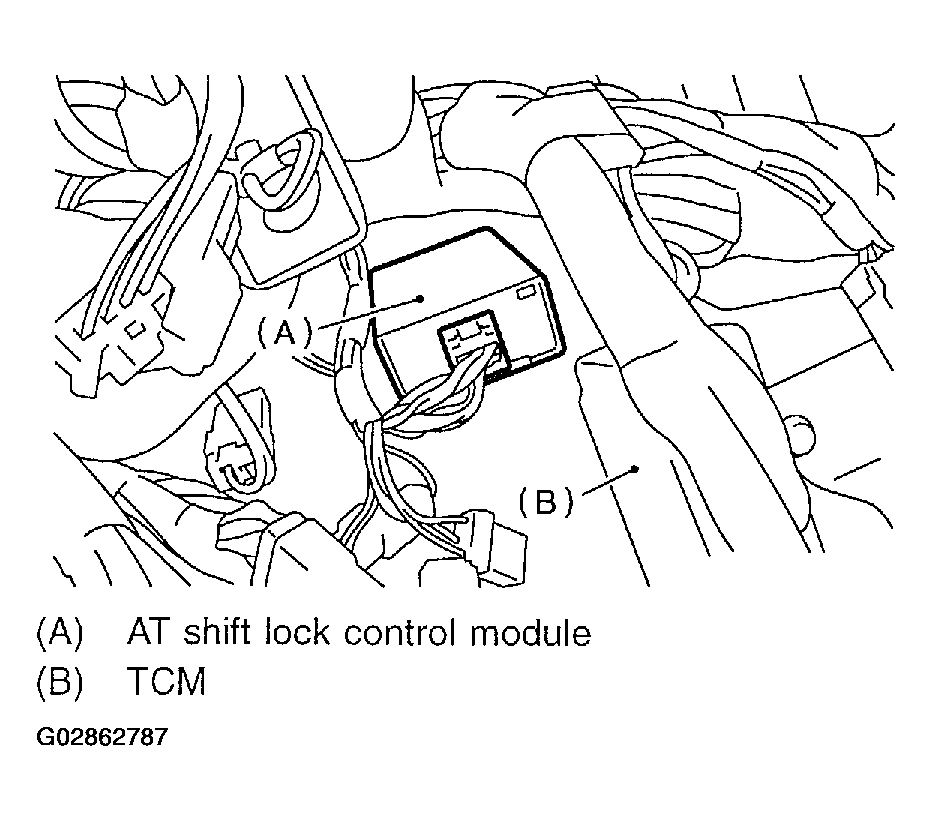

Fig 3: Disconnecting Connector From AT Shift Lock Control Module
Courtesy of SUBARU OF AMERICA, INC.
Remove the AT shift lock control module.
