2002 Subaru Forester Base
Service Limit
2002 Subaru Forester BaseSECTION Service Limit
Make a measurement as follows. If it exceeds the specified service limit, adjust or replace.
NOTE:
When making a measurement, vise gearbox by using ST. Never vise gearbox by inserting aluminum plates, etc. between vise and gearbox.
ST 926200000 STAND

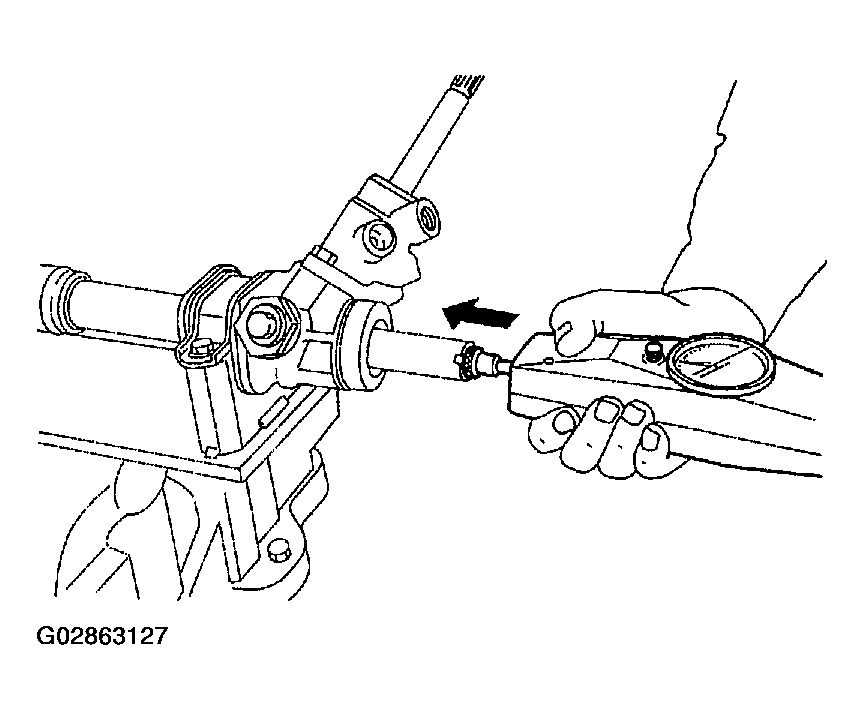

Sliding resistance of rack shaft:
- Service limit 304 N (31 kgf, 68 lb) or less
