Control Valve Assembly
- Specified steering grease: VALIANT GREASE M2 (Part No. 003608001)
- Clean all parts and tools before reassembling.

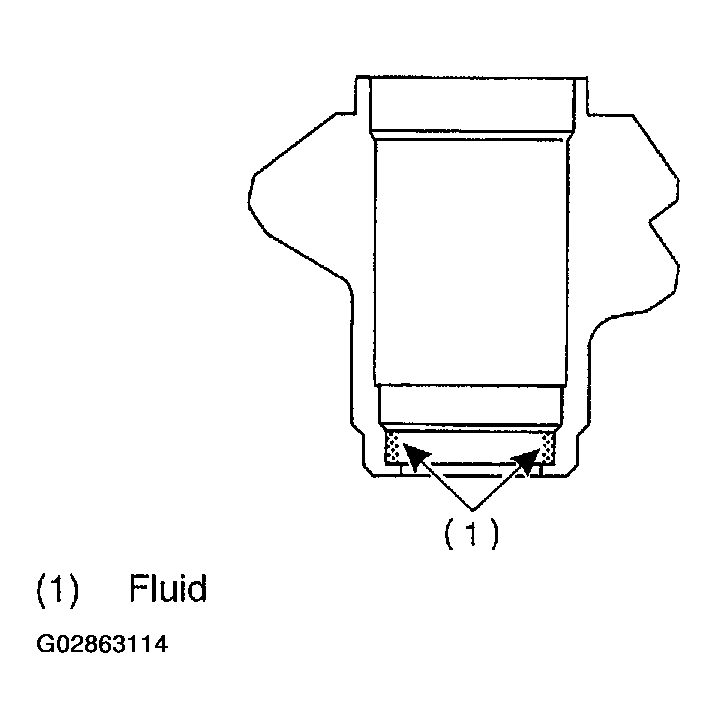

- Apply a coat of specified power steering fluid to inner wall of valve housing.

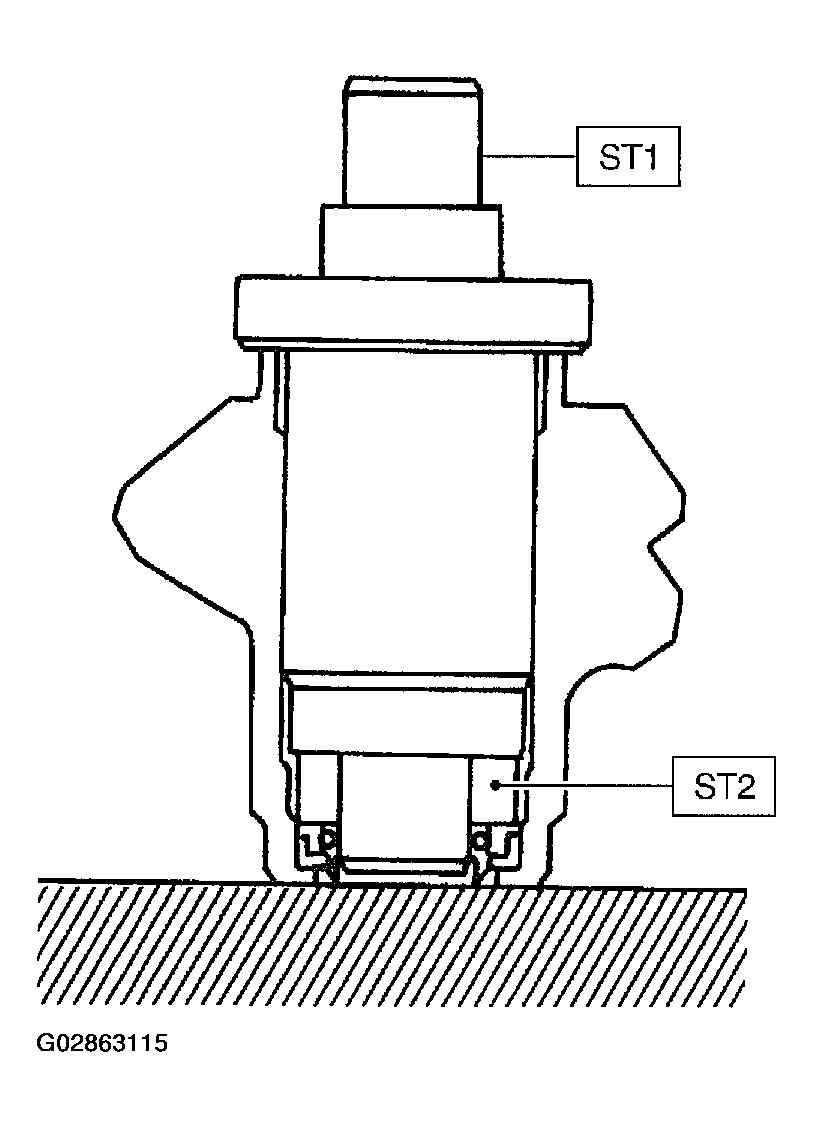

- Attach ST2 to ST1, and press oil seal into place using a press.
ST1 34099FA120 SEAL INSTALLER & REMOVER
ST2 34099FA130 SEAL INSTALLER
- Face oil seal in the direction shown in figure when installing.
- To avoid scratching oil seal, apply a coat of grease to contact surface of installer and oil seal.
- To facilitate installation, attach oil seal to installer and position in valve housing before pressing into place.
- Using ST and press, install special bearing in valve housing.
ST 34099FA120 SEAL INSTALLER & REMOVER
NOTE: To facilitate installation, attach ball bearing to remover and position in valve housing before pressing it into place.
