2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Service Limit
Make a measurement as follows. If it exceeds the specified service limit, replace the parts with new ones.
CAUTION:
- Fix oil pump on a vise to make a measurement. At this time, hold oil pump with the least possible force between two wood pieces.
- Do not set outside of flow control valve or pulley on a vise; otherwise outside or pulley might be deformed. Select properly sized wood pieces.

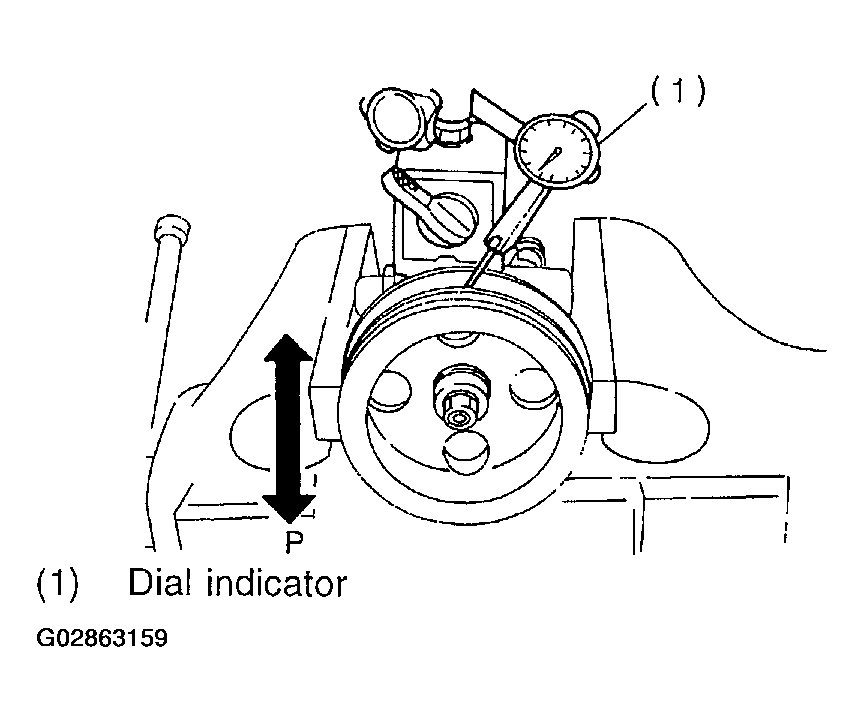

- Play of pulley shaft
On condition:
- P: 9.8 N (1.0 kgf, 2.2 lb)
Service limit:
- Radial play: 0.4 mm (0.016 in) or less
- Axial play: 0.9 mm (0.035 in) or less

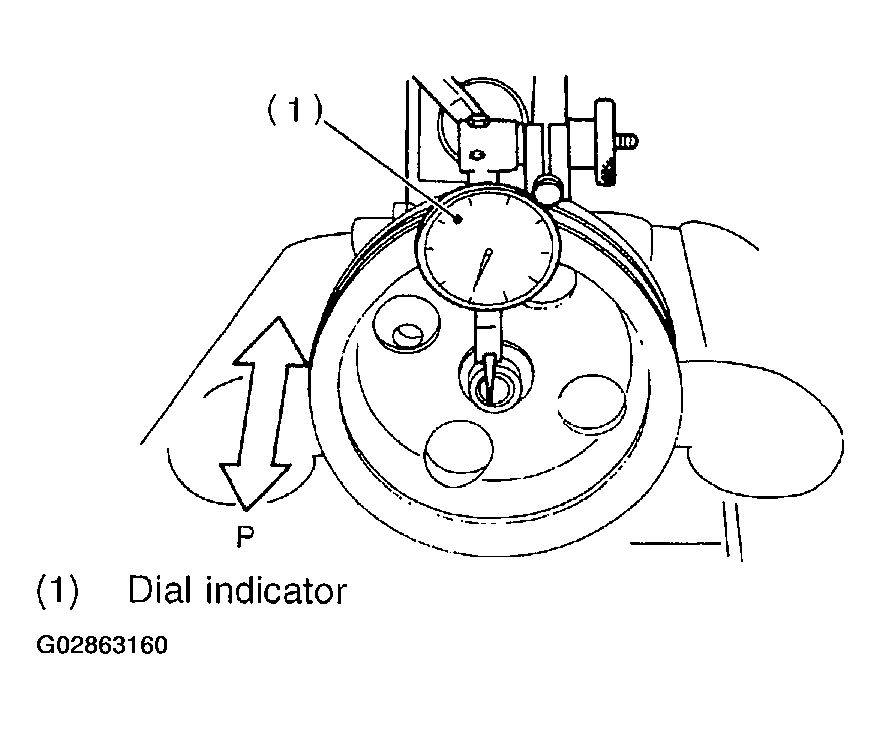

- Ditch deflection of pulley
- Service limit: 1.0 mm (0.039 in) or less
NOTE: Read the value for one surface of V ditch, and then the value for another off the dial.
