2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Select Lever: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the packing.

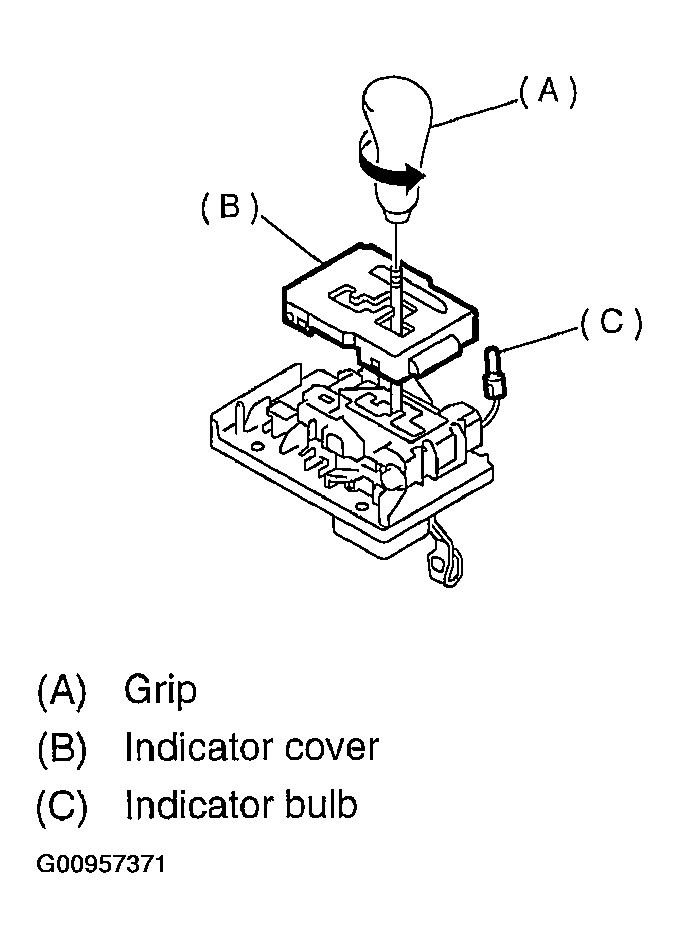

  2. Remove the grip.
  3. Remove the indicator bulb from indicator cover.
  4. Remove the indicator cover.
    Fig 1: Removing Indicator Bulb From Indicator Cover
    G00957371Courtesy of SUBARU OF AMERICA, INC.

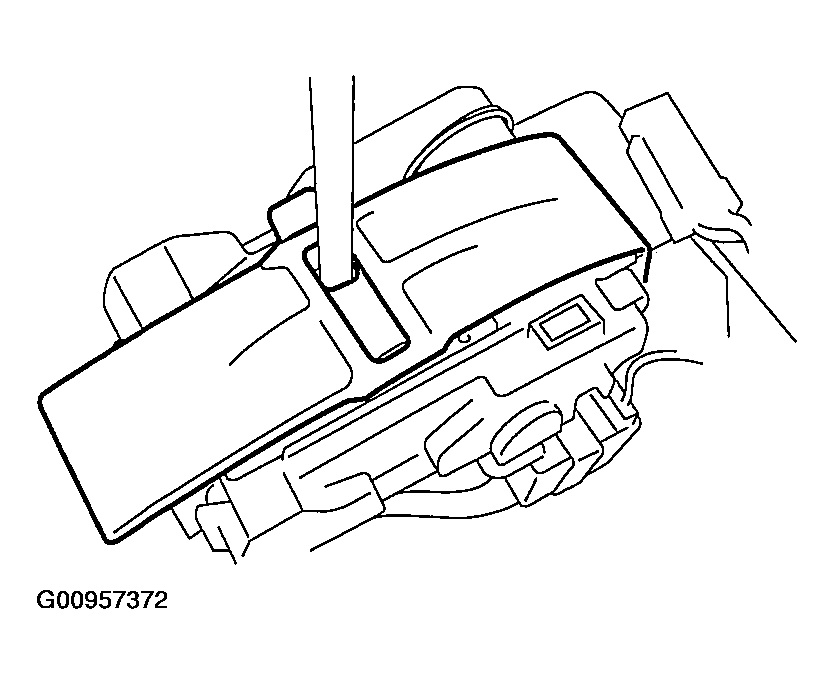

  5. Remove the blind.
    Fig 2: Removing Sift Level Blind
    G00957372Courtesy of SUBARU OF AMERICA, INC.

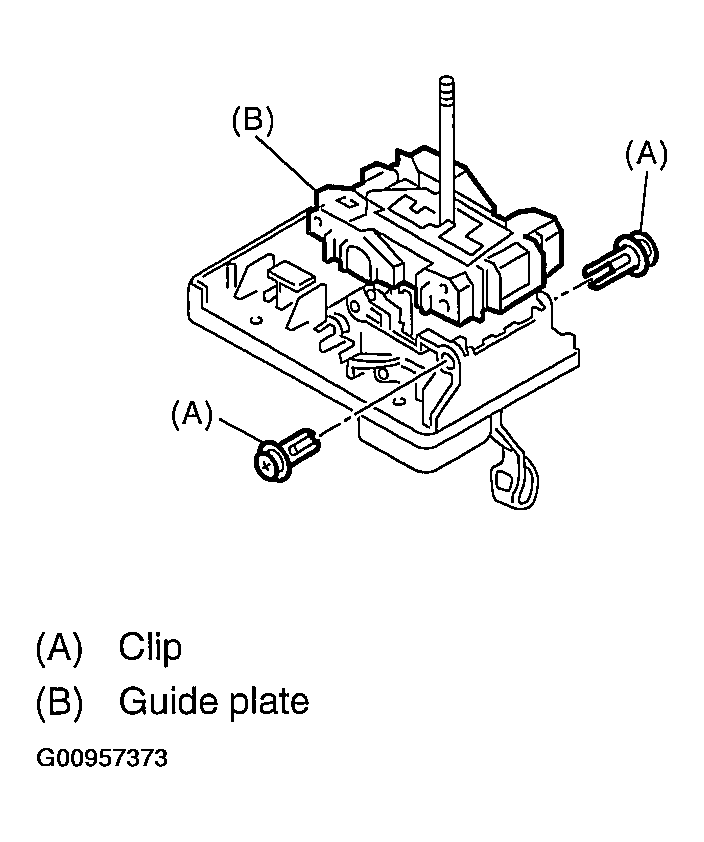

  6. Remove the clip, and then remove the guide plate.
    Fig 3: Removing Clip & Guide Plate
    G00957373Courtesy of SUBARU OF AMERICA, INC.

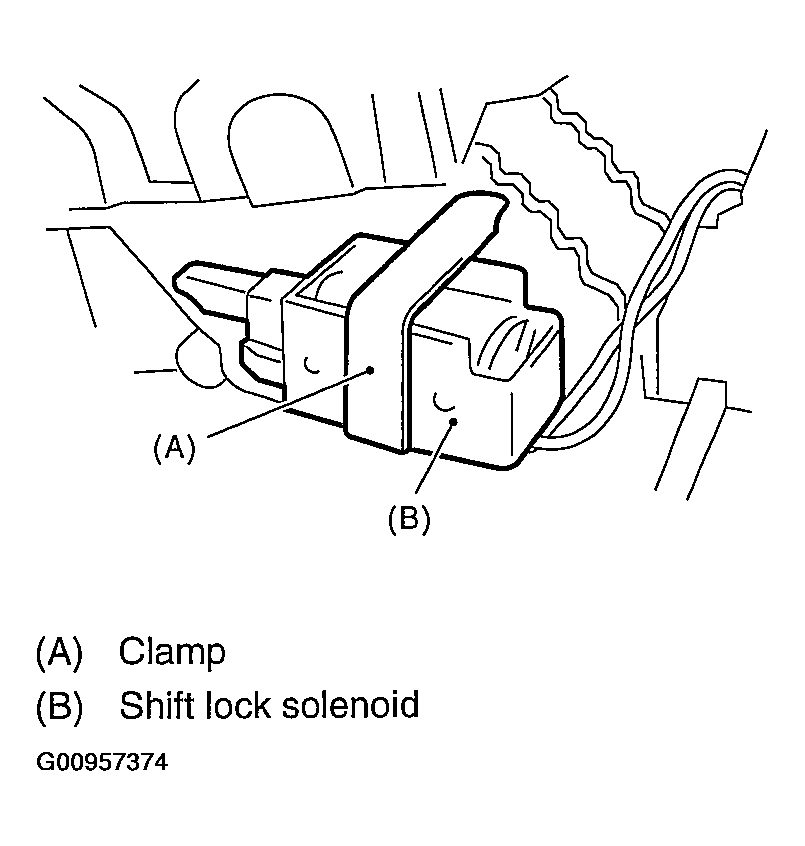

  7. Remove the clamp, and then remove the shift lock solenoid.
    Fig 4: Removing Clamp & Shift Lock Solenoid
    G00957374Courtesy of SUBARU OF AMERICA, INC.

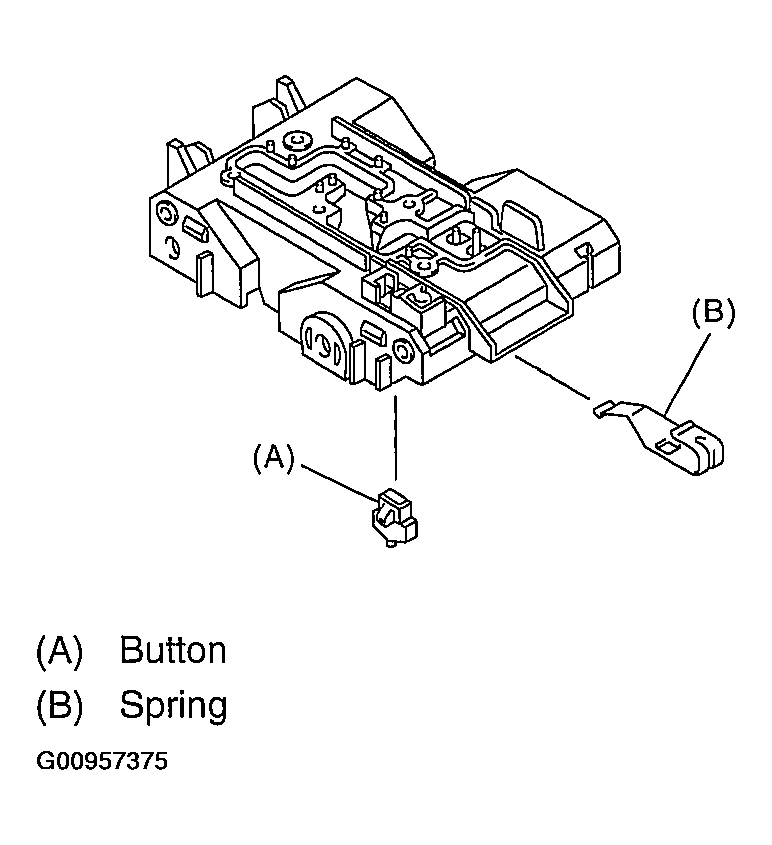

  8. Remove the spring, and button.
    Fig 5: Removing Spring, & Button
    G00957375Courtesy of SUBARU OF AMERICA, INC.

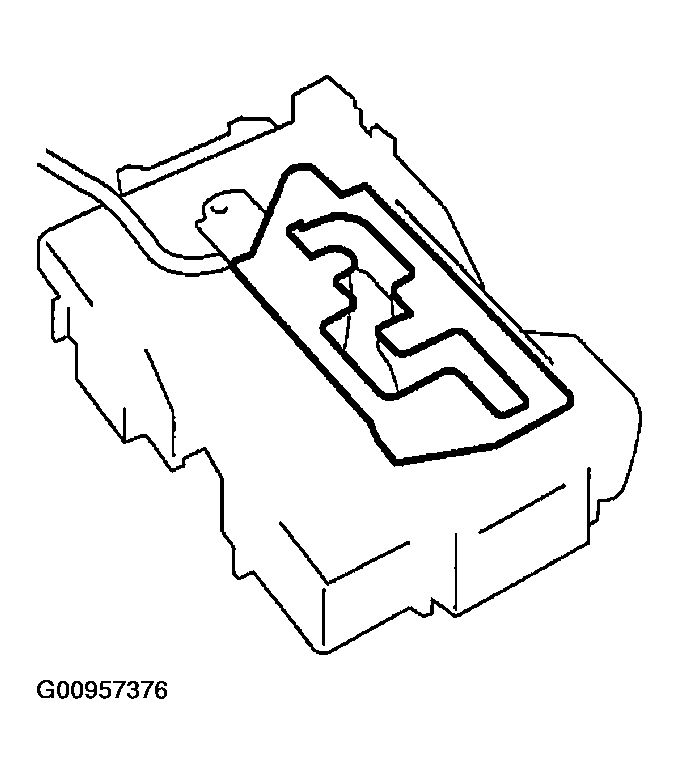

  9. Remove the cushion plate.
    Fig 6: Removing Cushion Plate
    G00957376Courtesy of SUBARU OF AMERICA, INC.

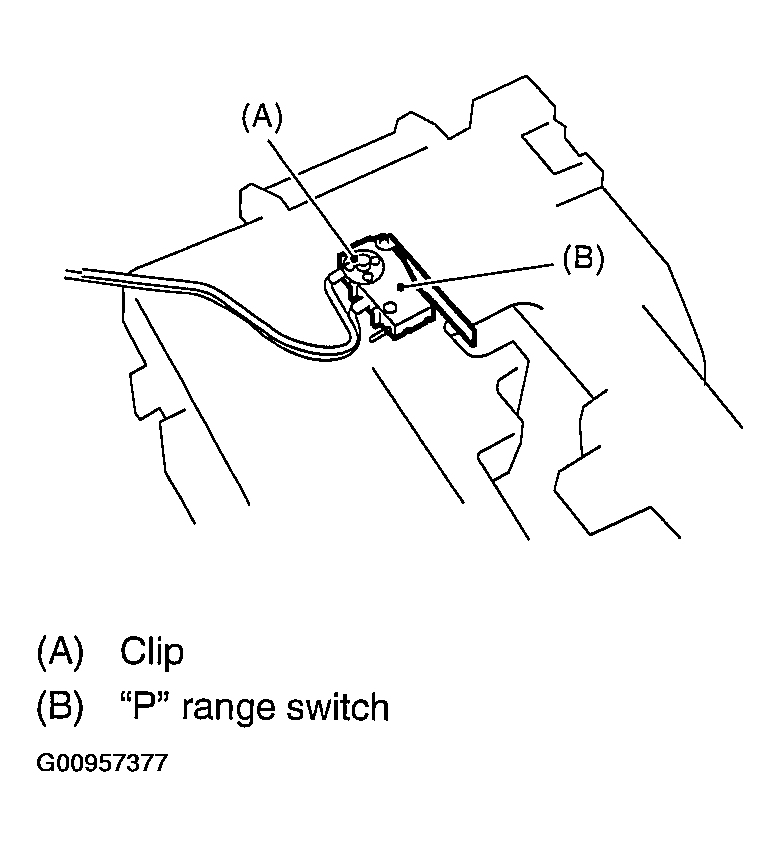

  10. Remove the clip, and then remove the "P" range switch.
    Fig 7: Removing Clip & Range Switch
    G00957377Courtesy of SUBARU OF AMERICA, INC.

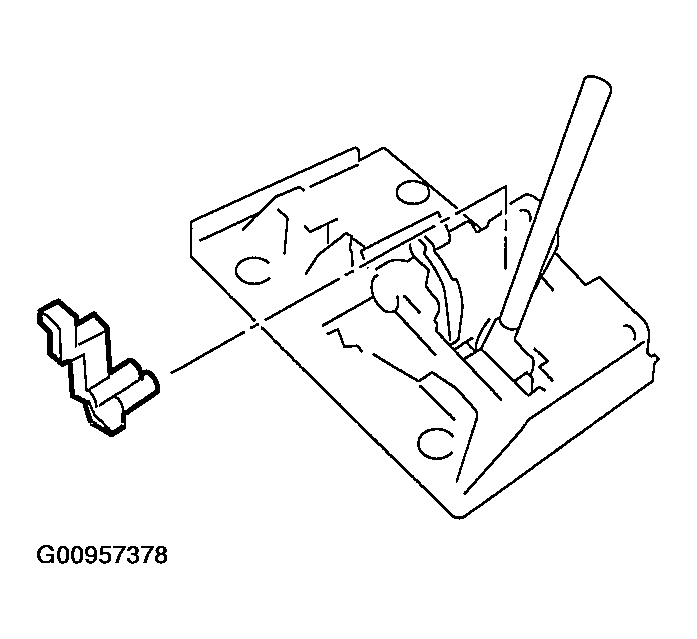

  11. Remove the lock plate.
    Fig 8: Removing Lock Plate
    G00957378Courtesy of SUBARU OF AMERICA, INC.

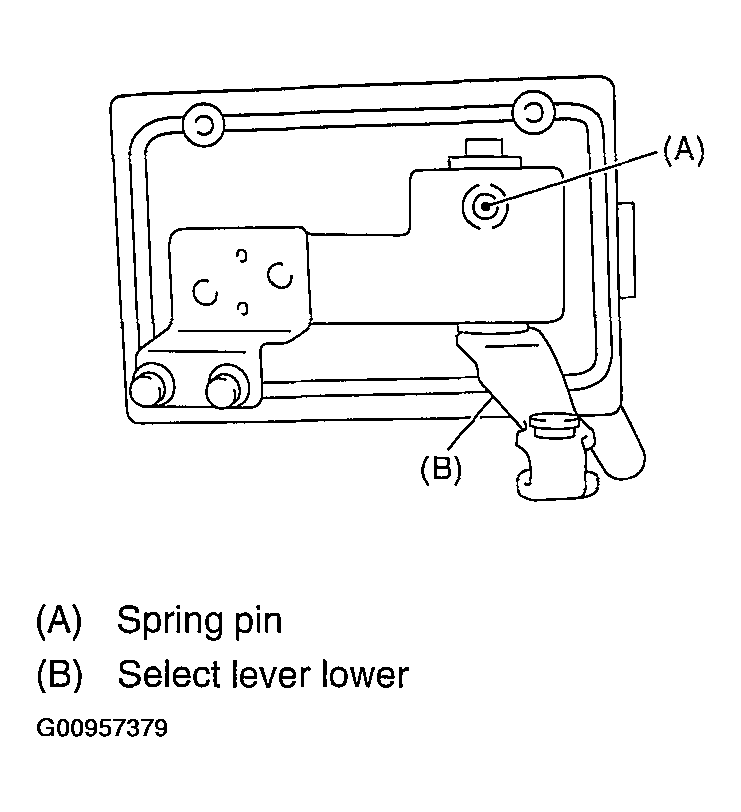

  12. Remove the grommet, and then remove the spring pin.
    Fig 9: Removing Grommet & Spring Pin
    G00957379Courtesy of SUBARU OF AMERICA, INC.

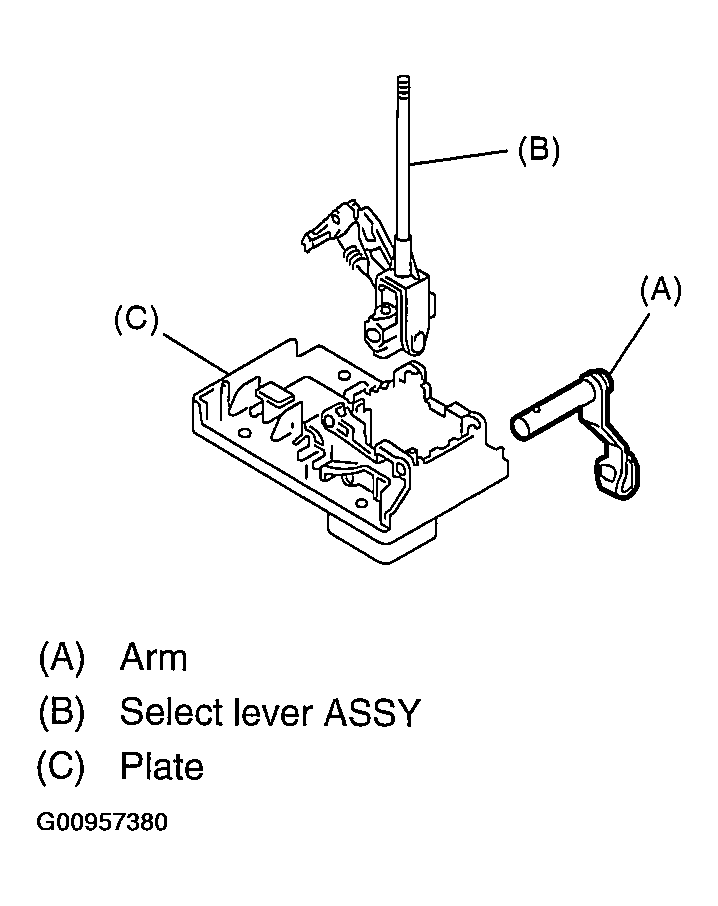

  13. Remove the arm, and then remove the select lever assembly from guide plate.
    Fig 10: Removing Arm, & Select Lever Assembly From Guide Plate
    G00957380Courtesy of SUBARU OF AMERICA, INC.

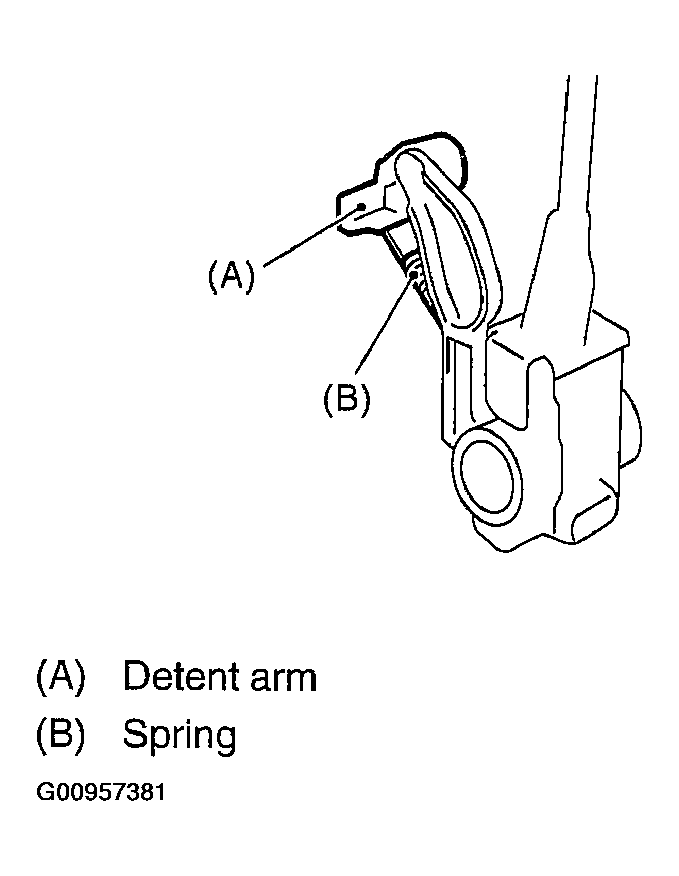

  14. Remove the spring and detent arm.
    Fig 11: Removing Spring & Detent Arm
    G00957381Courtesy of SUBARU OF AMERICA, INC.
