2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the vehicle on a lift.
  2. Set the select lever to "N" range.
  3. Disconnect negative cable from battery.
  4. Lift-up the vehicle.
  5. Remove the front, center, rear exhaust pipe and muffler. (SOHC model)  :

    < Ref. to REMOVAL , Front Exhaust Pipe >,

    < Ref. to REMOVAL , Center Exhaust Pipe >,

    < Ref. to REMOVAL , Rear Exhaust Pipe > and

    < Ref. to REMOVAL , Muffler >

  6. Remove the center and rear exhaust pipes and muffler. (DOHC turbo model)  :

    < Ref. to REMOVAL , Center Exhaust Pipe >,

    < Ref. to REMOVAL , Rear Exhaust Pipe > and

    < Ref. to REMOVAL , Muffler >

  7. Remove the heat shield cover. (If equipped)

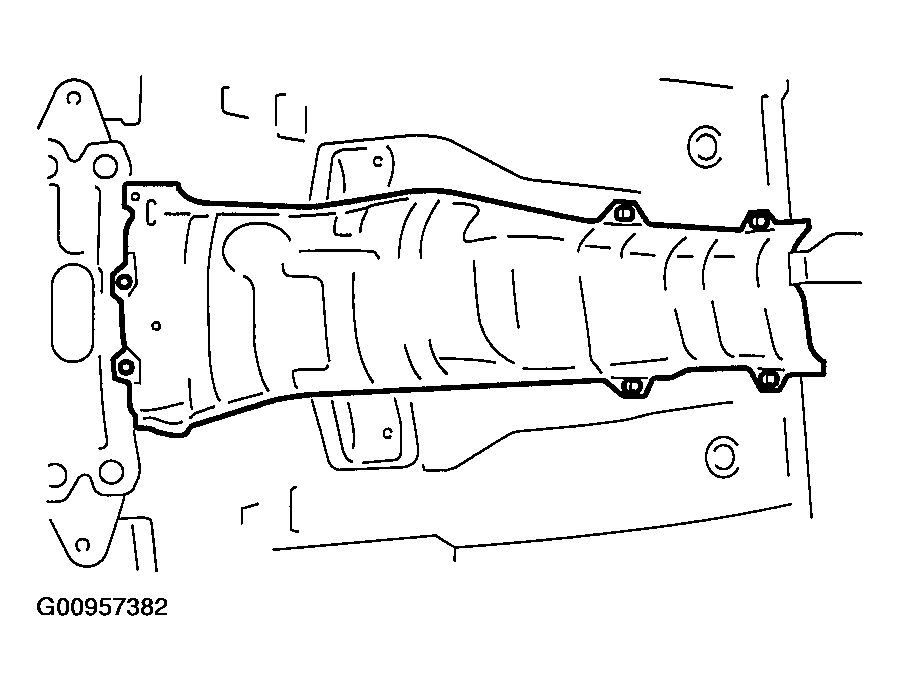

    Fig 1: Removing Heat Shield Cover (If Equipped)
    G00957382Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the snap pin and washer from range select lever.

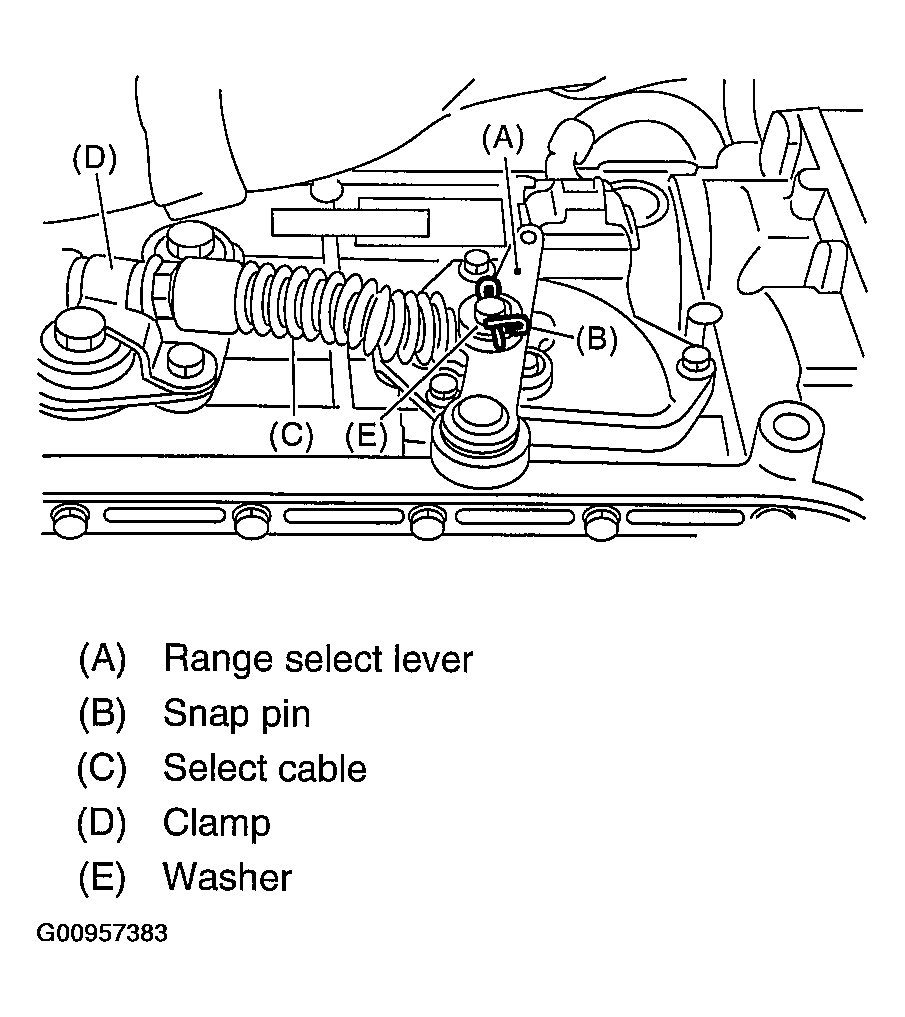

    Fig 2: Removing Snap Pin & Washer From Range Select Lever
    G00957383Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the plate assembly from transmission case.

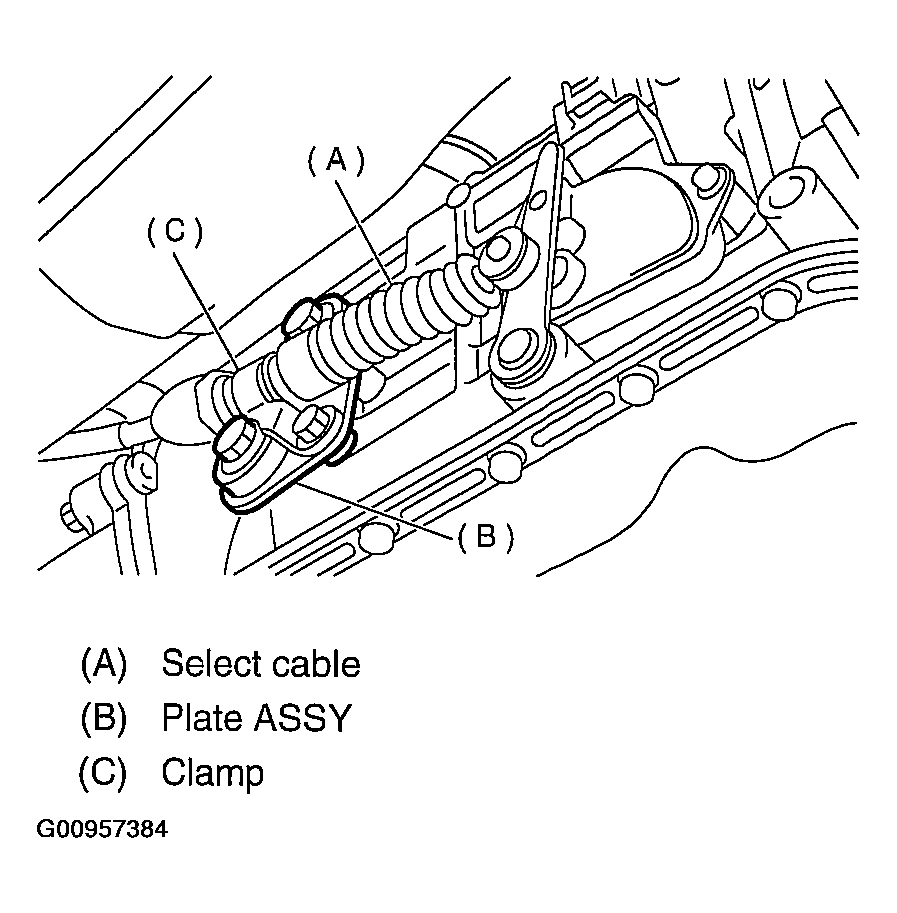

    Fig 3: Removing Plate Assembly From Transmission Case
    G00957384Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the cable from select lever, and then remove the cable bracket.

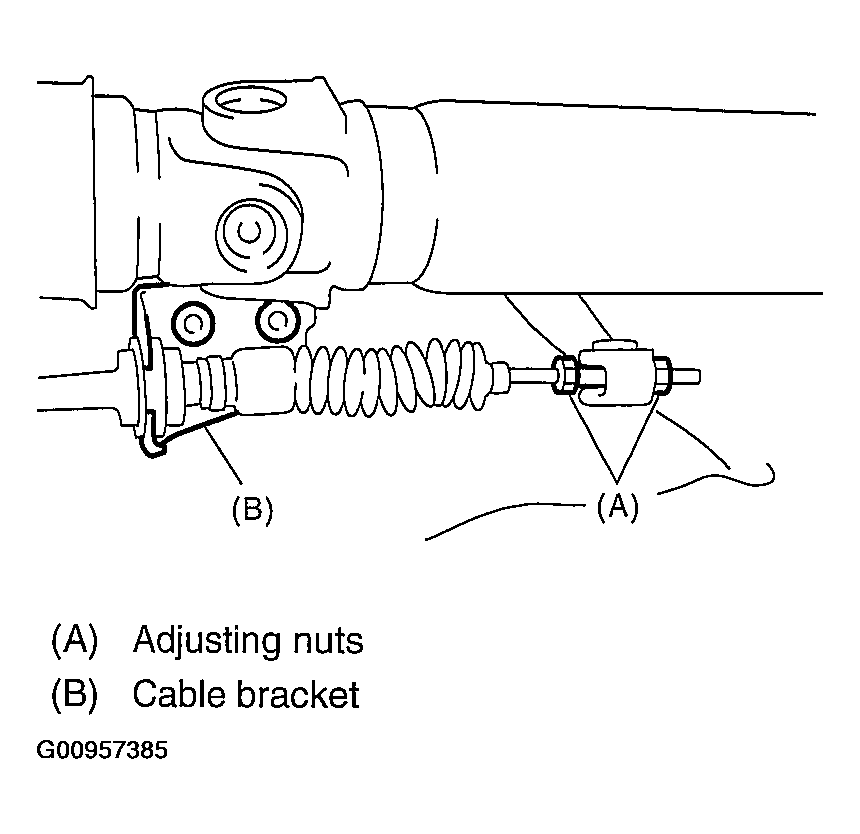

    Fig 4: Disconnecting Cable From Select Lever & Remove Cable Bracket
    G00957385Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
