2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Power Window Control Switch: Removal: Sub-Switch

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the screw which secures switch panel.

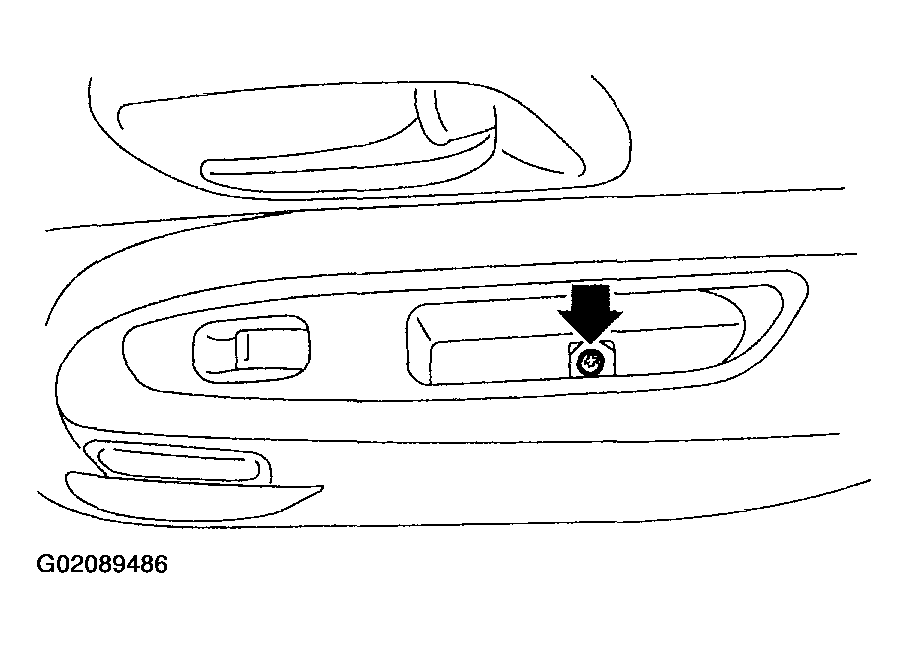

Fig 1: Removing Switch Panel Screw
Courtesy of SUBARU OF AMERICA, INC.
Remove the switch panel.

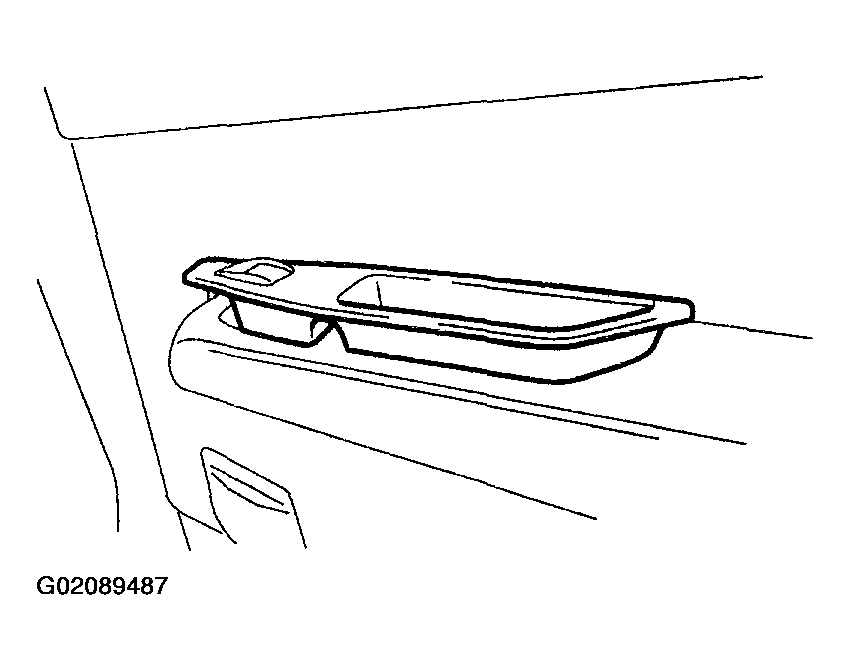

Fig 2: Removing Switch Panel
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector.
