2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Power Window Control Switch: Inspection: Sub-Switch

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Measure the switch resistance.

Front passenger's door switch and rear door switch:

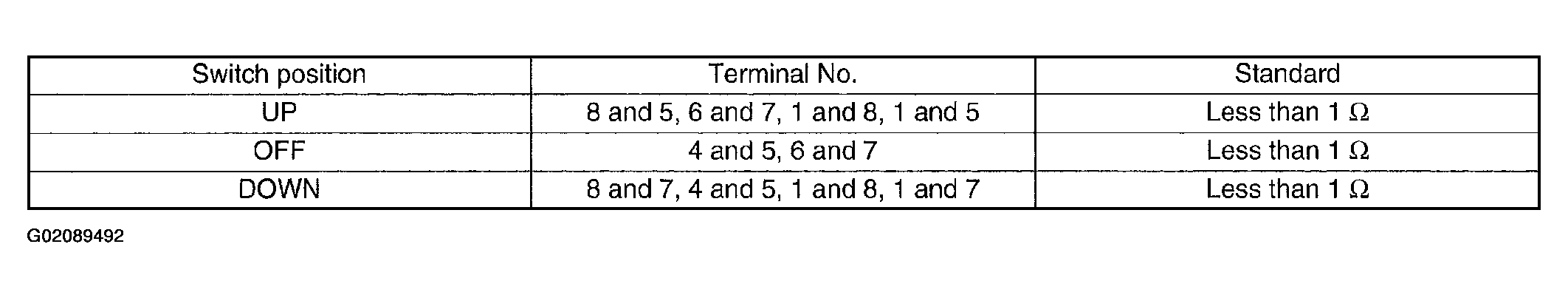

Fig 1: Front Passenger's Door & Rear Door Switch Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the sub-switch.
