Legacy & Outback

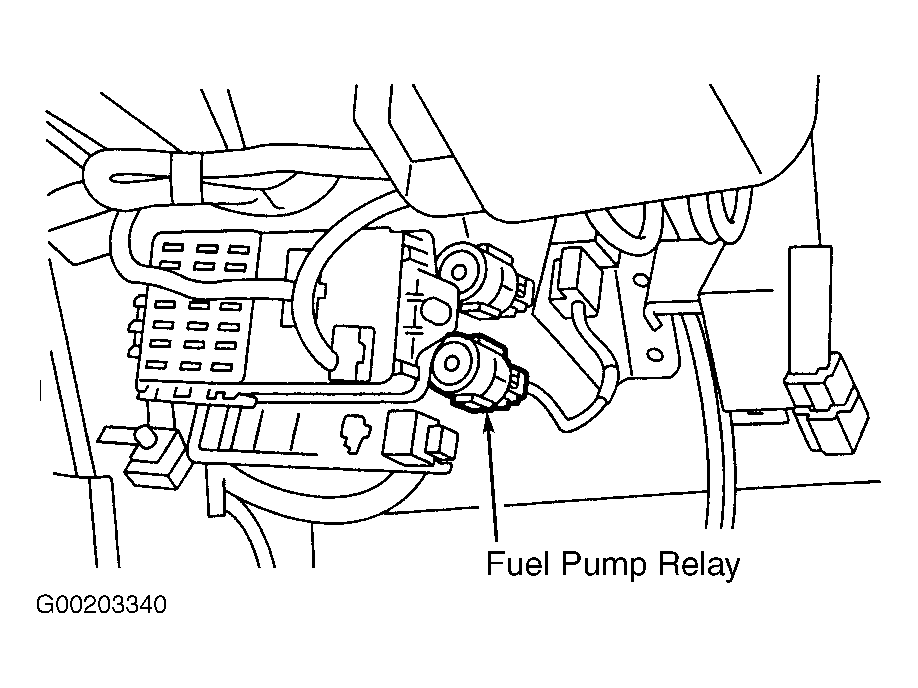

Turn ignition off. Disconnect Green electrical harness connector from fuel pump relay. Fuel pump relay is located under left side of instrument panel, to right of fuse block. See Fig 1 . Start and run engine until it stalls. After engine stalls, crank engine for 5 seconds. Turn ignition off. Reconnect fuel pump relay connector.
