2002 Subaru Forester Base

Main Relay: Removal

2002 Subaru Forester BaseSECTION Removal

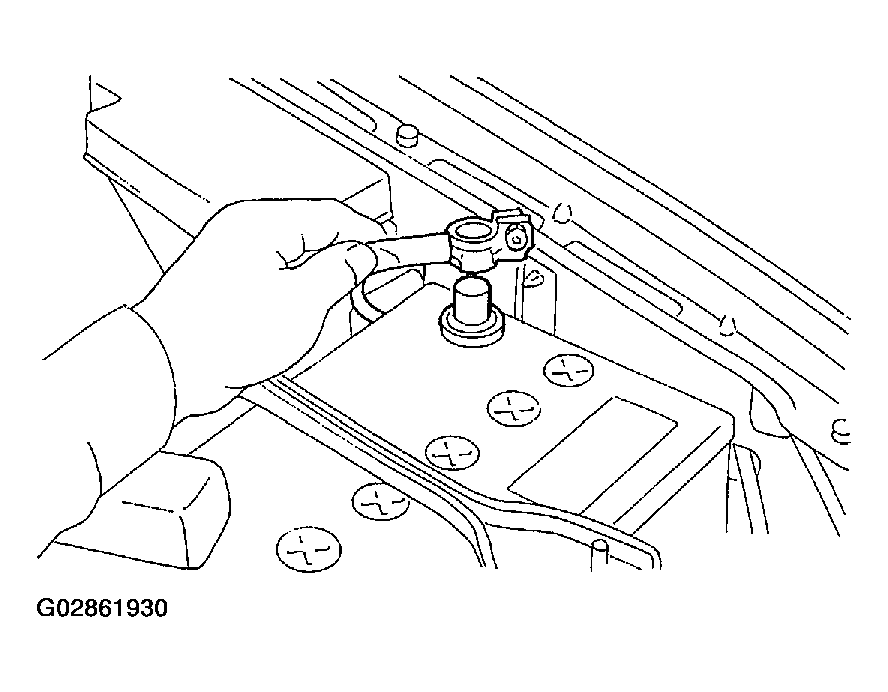

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.

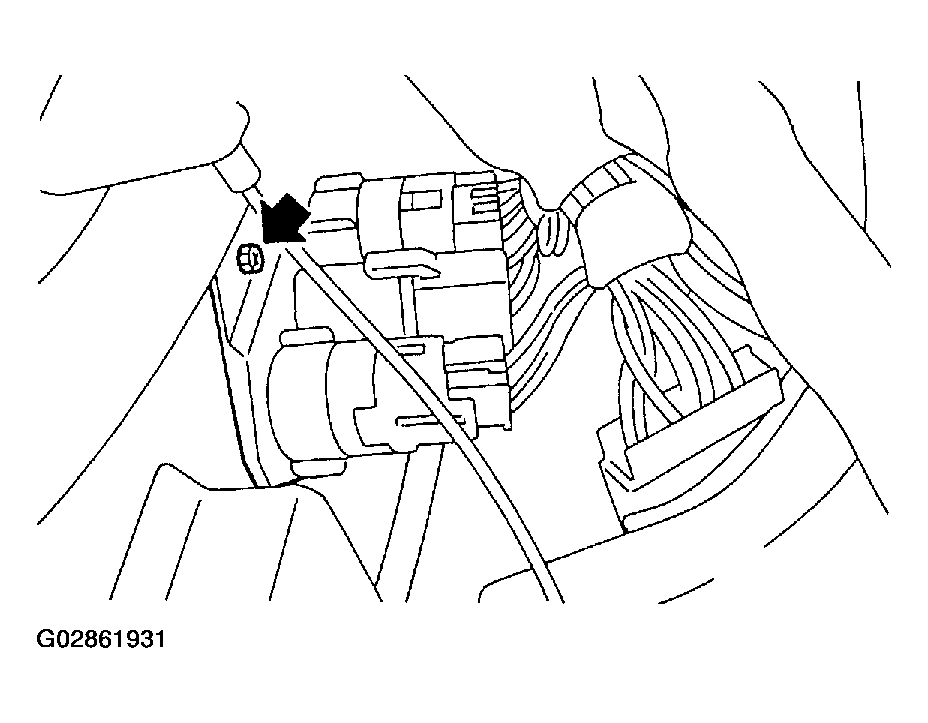

Remove bolt which holds bracket of main relay and fuel pump relay.

Fig 2: Removing Main Relay And Fuel Pump Relay Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

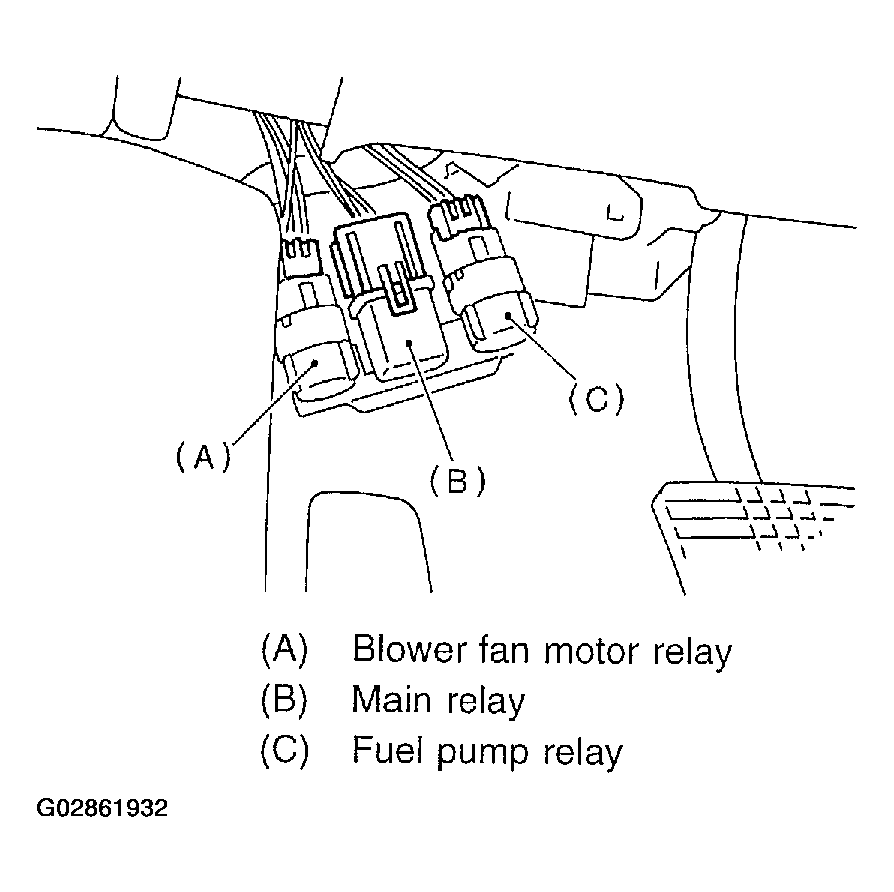

Disconnect connectors from relays.

Fig 3: Disconnecting Connectors From Relays
Courtesy of SUBARU OF AMERICA, INC.

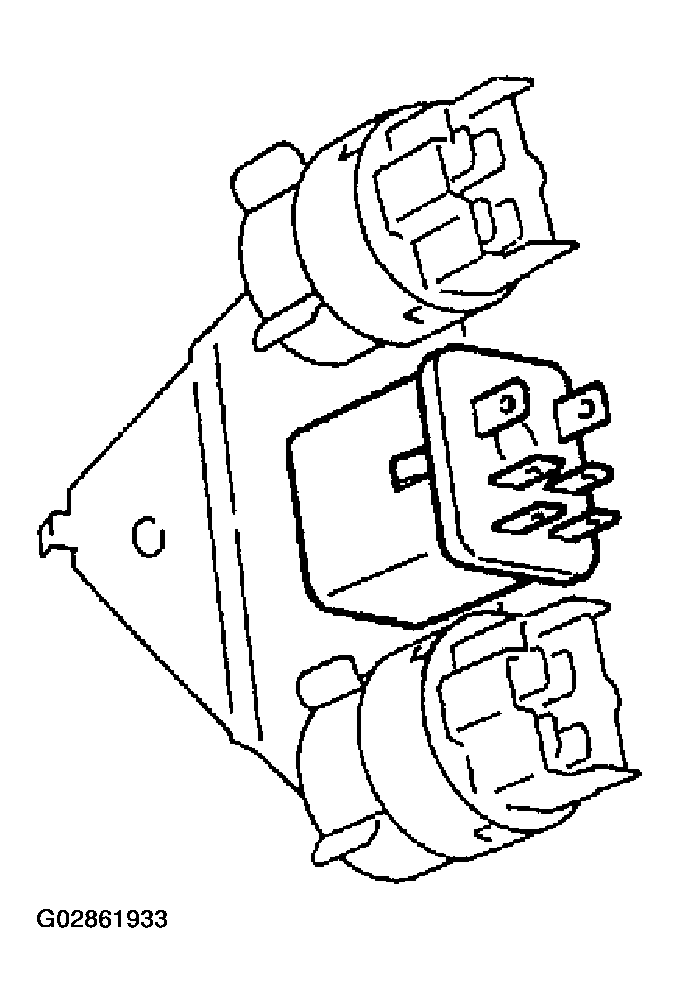

Remove main relay from mounting bracket.

Fig 4: Removing Main Relay From Mounting Bracket
Courtesy of SUBARU OF AMERICA, INC.
