2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Fuel Sub Level Sensor: Removal
WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

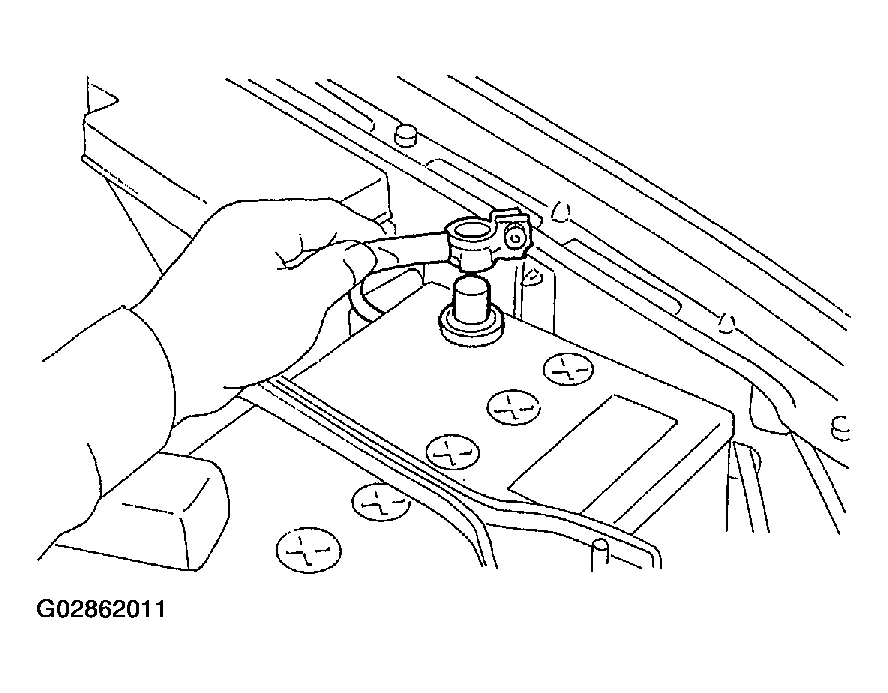

- Disconnect battery ground cable.
- Remove the floor box located just behind the rear seats.

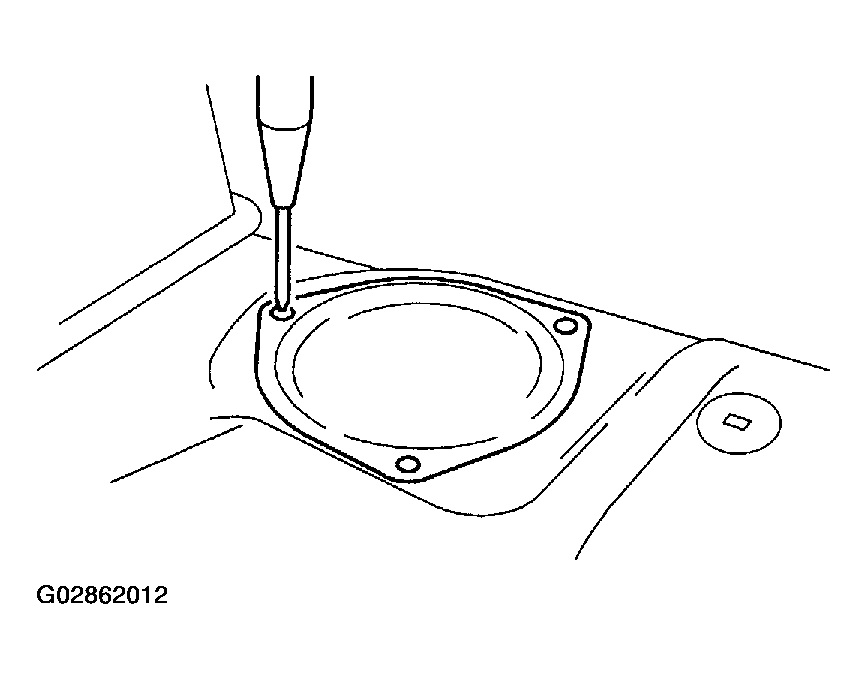

- Remove service hole cover.

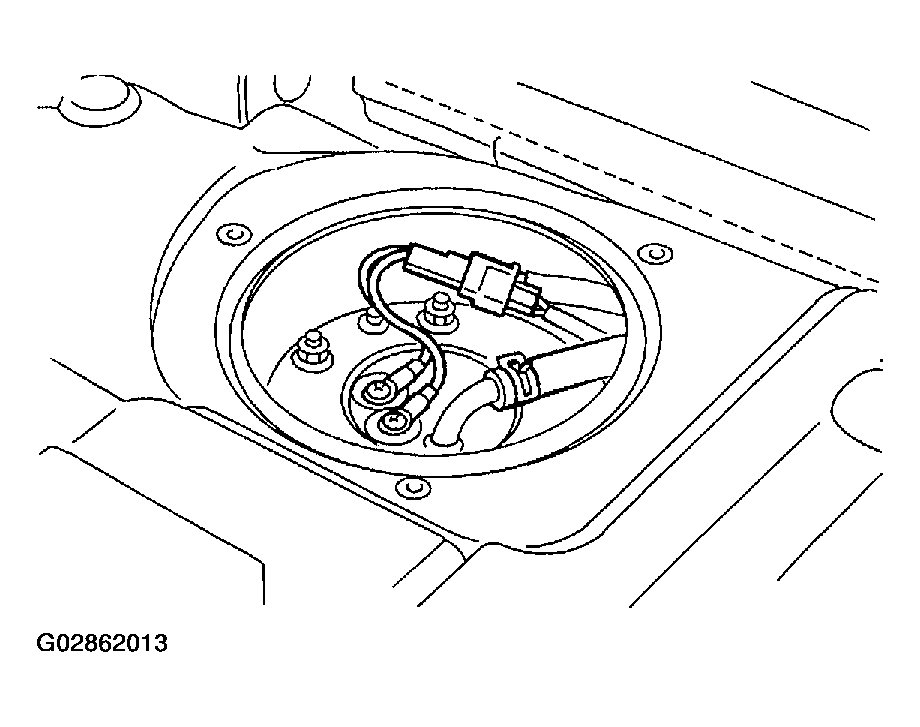

- Disconnect connector from fuel sub meter.
- Disconnect fuel jet pump hose.

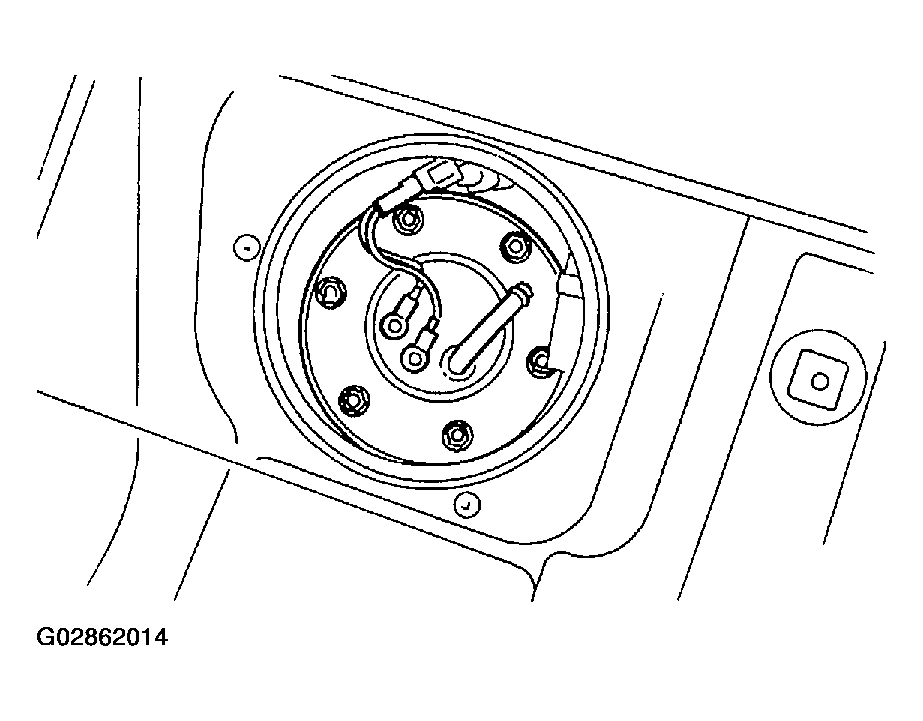

- Remove bolts which install fuel sub meter unit on fuel tank.

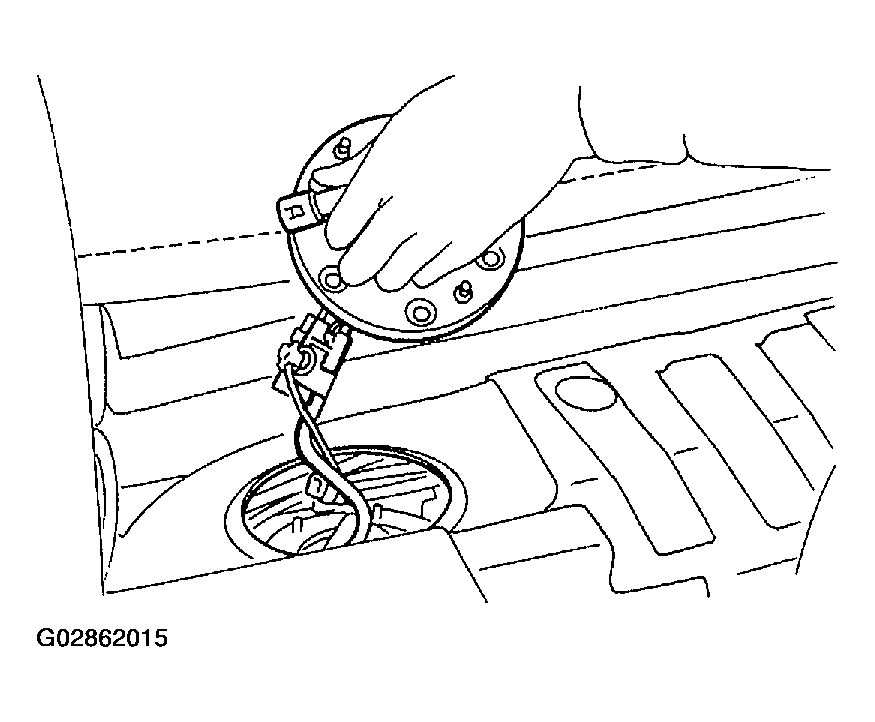

- Remove fuel sub meter unit.
