2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Removal

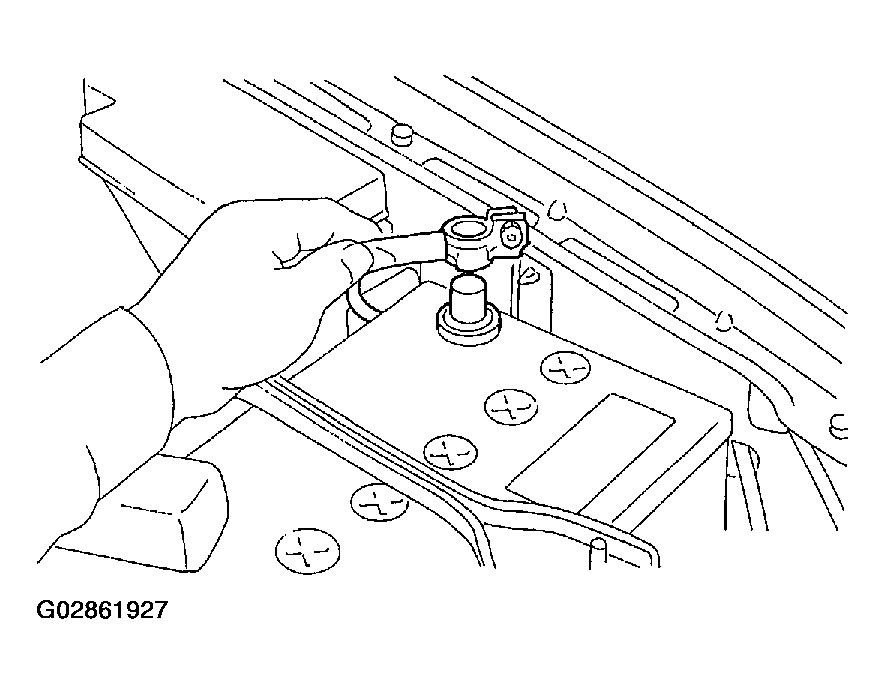

- Disconnect battery ground cable.
- Remove lower inner trim of passenger side. LOWER INNER TRIM
- Detach floor mat of front passenger seat.

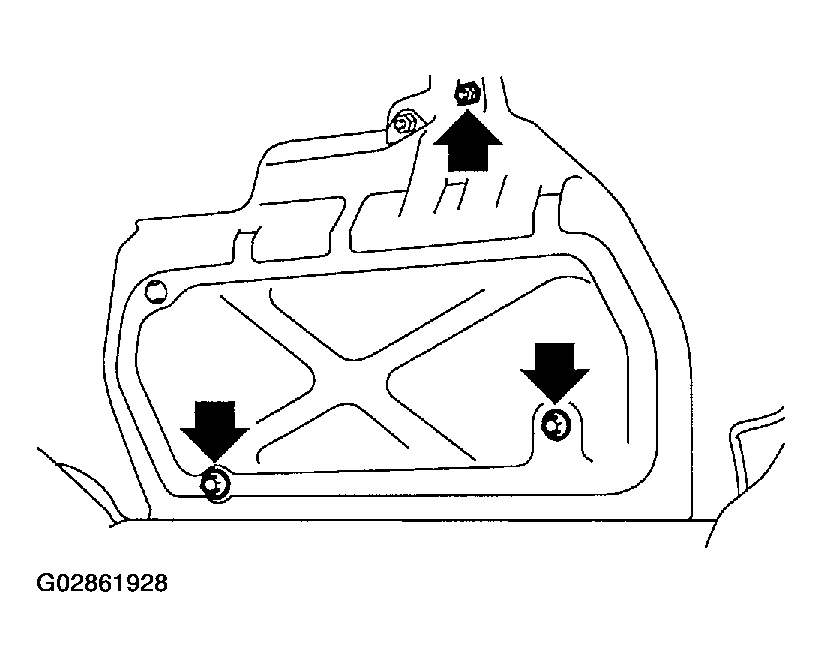

- Remove protect cover.

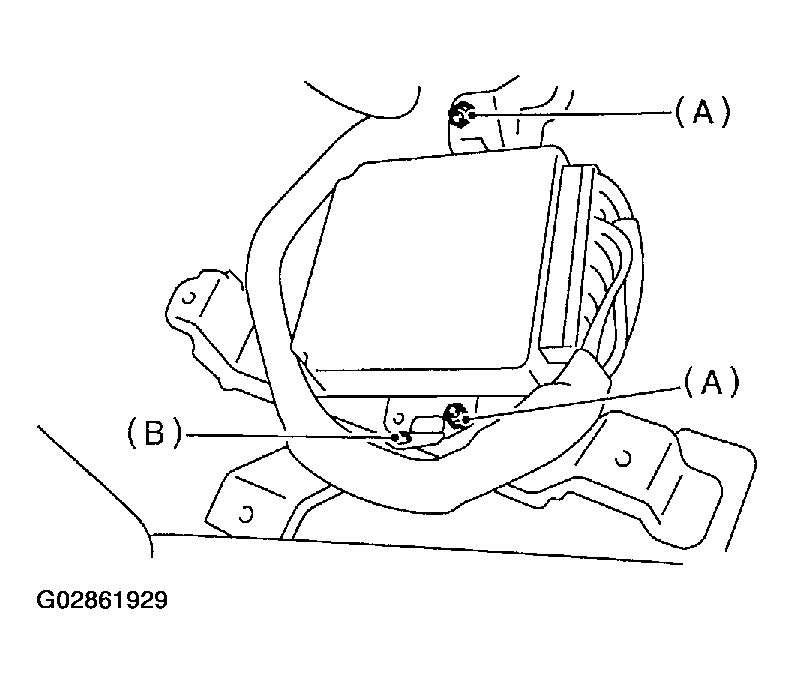

- Remove nuts (A) which hold ECM to bracket.
- Remove clip (B) from bracket.
- Disconnect ECM connectors and take out ECM.
