2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal

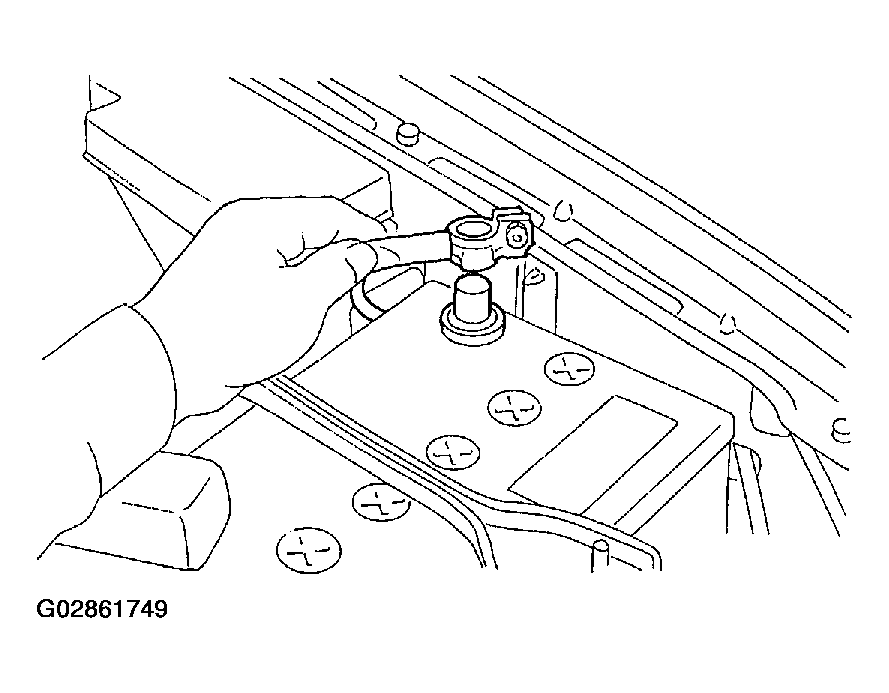

- Disconnect battery ground cable.

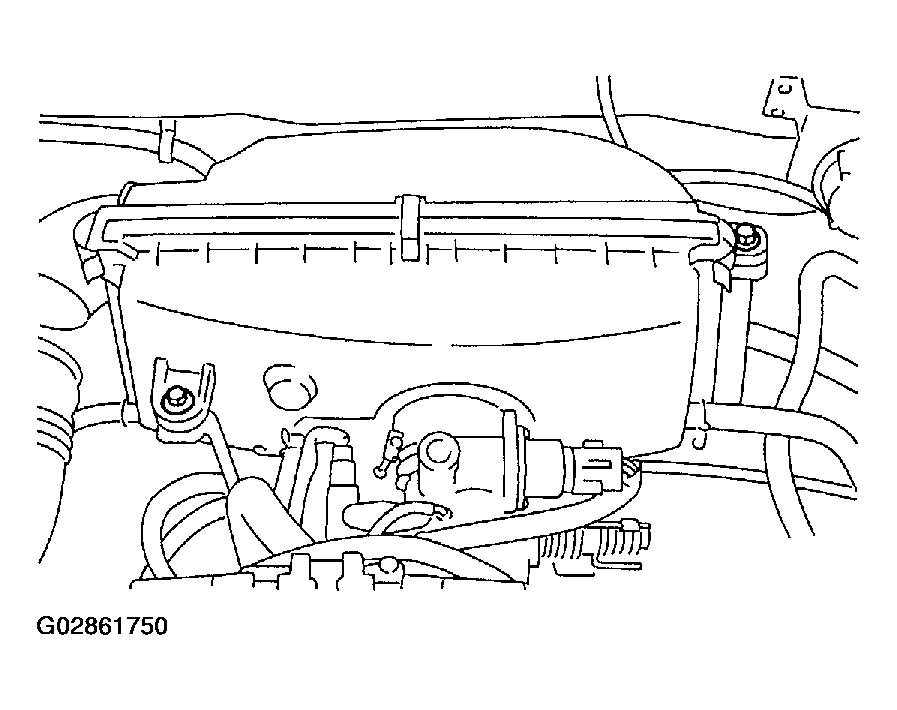

- Remove air cleaner case. Refer to AIR CLEANER CASE .

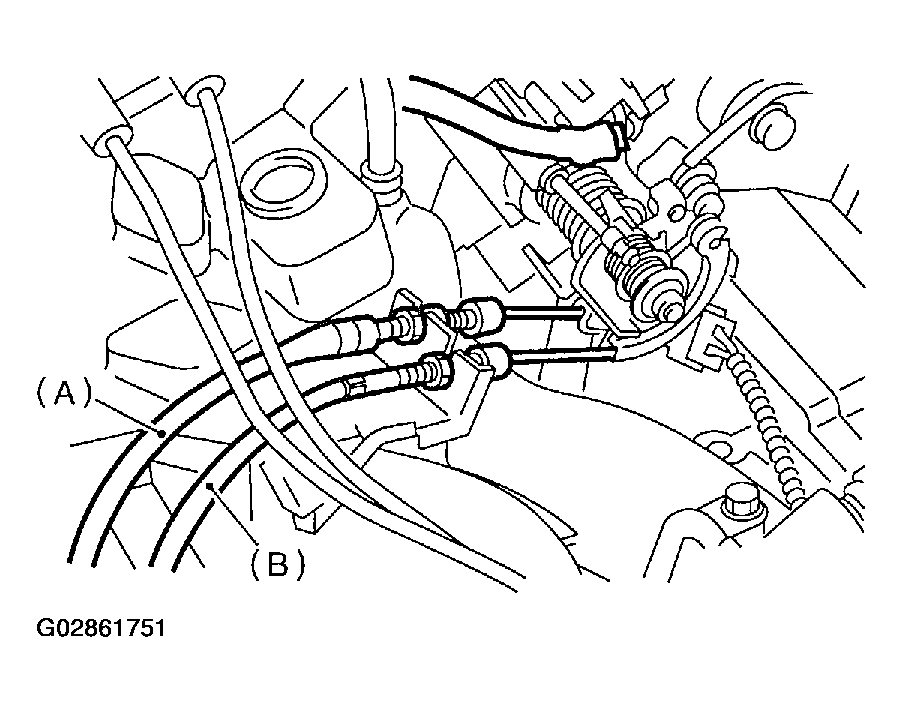

- Disconnect accelerator cable (A).
- Disconnect cruise control cable (B). (With cruise control model)

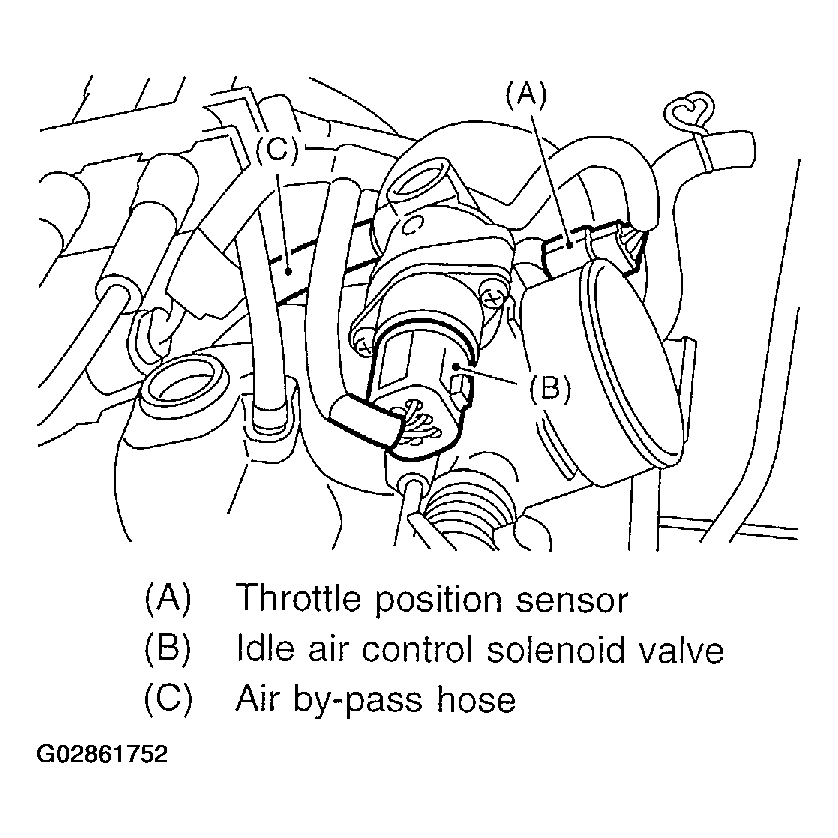

- Disconnect connectors from idle air control solenoid valve, throttle position sensor.
- Disconnect air by-pass hose from throttle body.

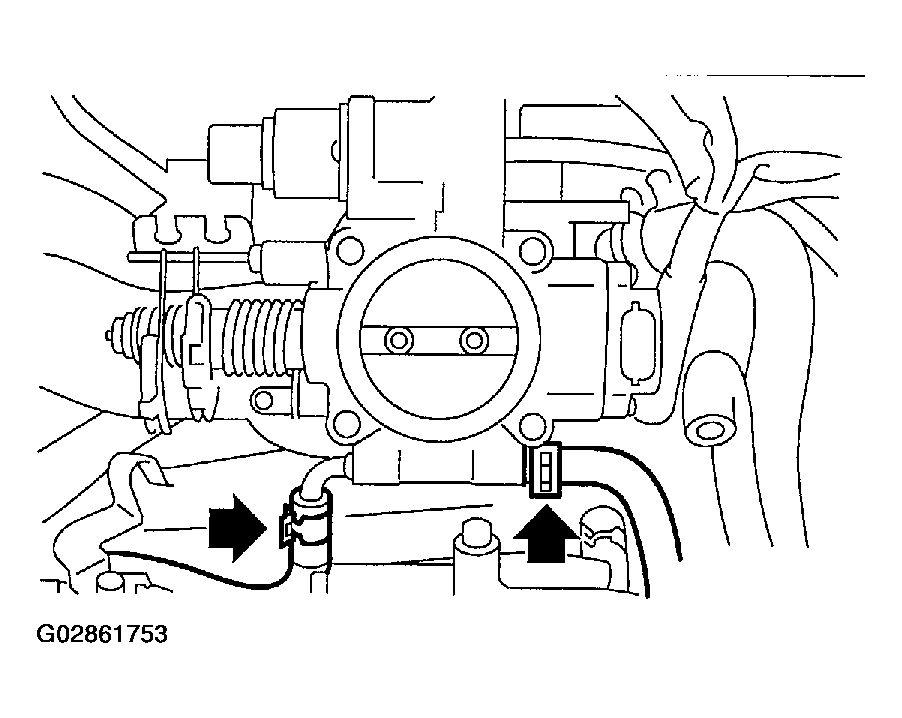

- Disconnect engine coolant hoses from throttle body.
- Remove bolts which install throttle body to intake manifold
