Roll Over Valve: Installation
Install in the reverse order of removal.
- Do not install top side of valve down.
- Before installing bracket on body, securely fit concave part of bracket to hole in body.
- Connect hoses to roll over valve as shown in Figure.

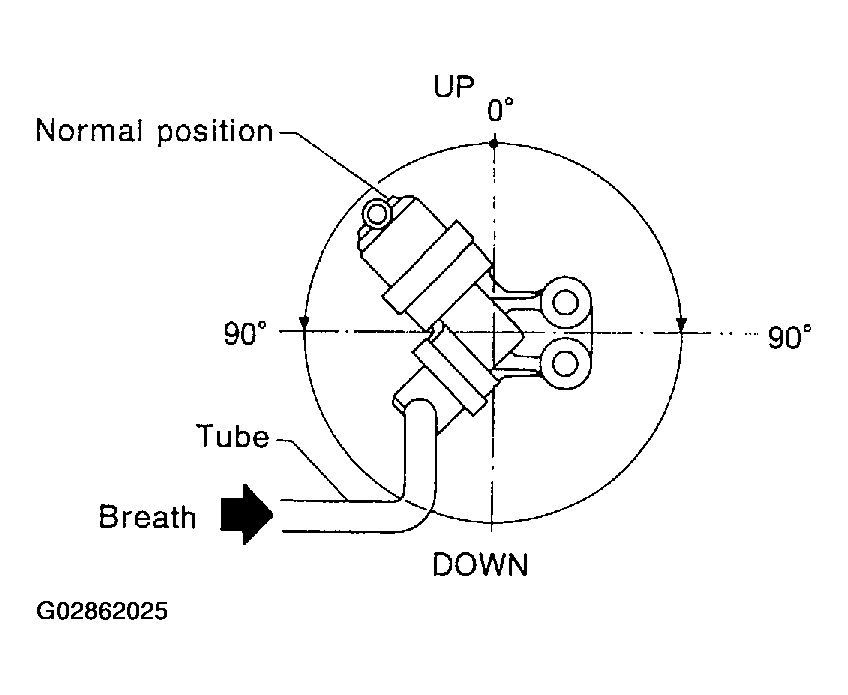

- While blowing through open end of hose, tilt valve at least 90° left and right from normal position.
- Ensure that there is no air flow when hose is tilted greater than 90°.
