2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Idle Air Control Solenoid Valve: Removal

Disconnect battery ground cable.

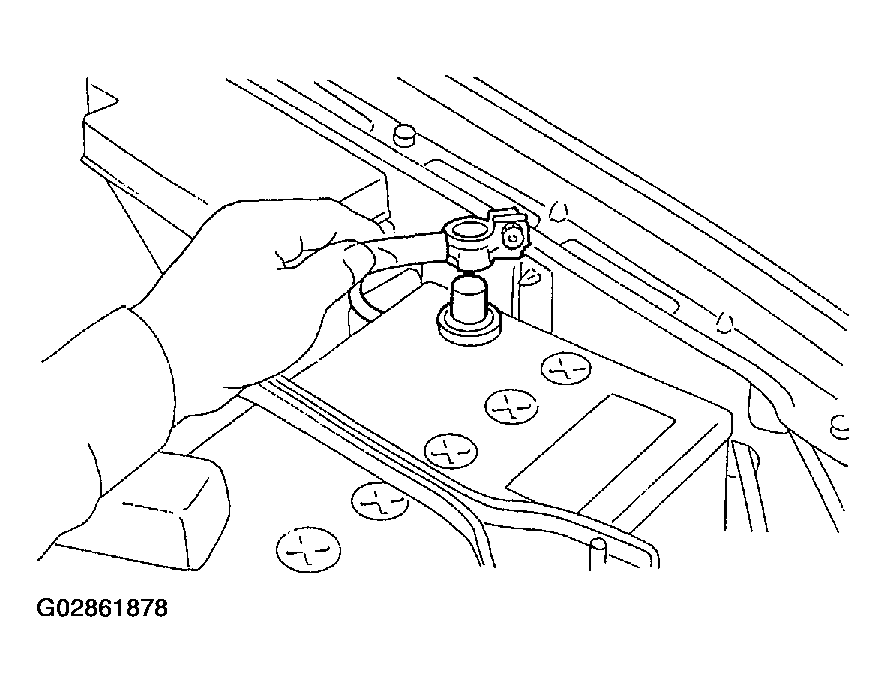

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from idle air control solenoid valve.

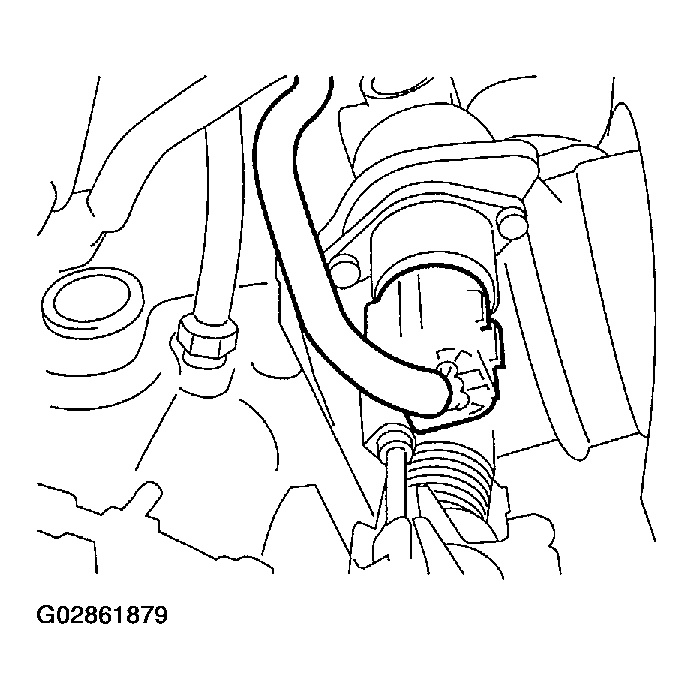

Fig 2: Disconnecting Connector From Idle Air Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove idle air control solenoid valve from throttle body.

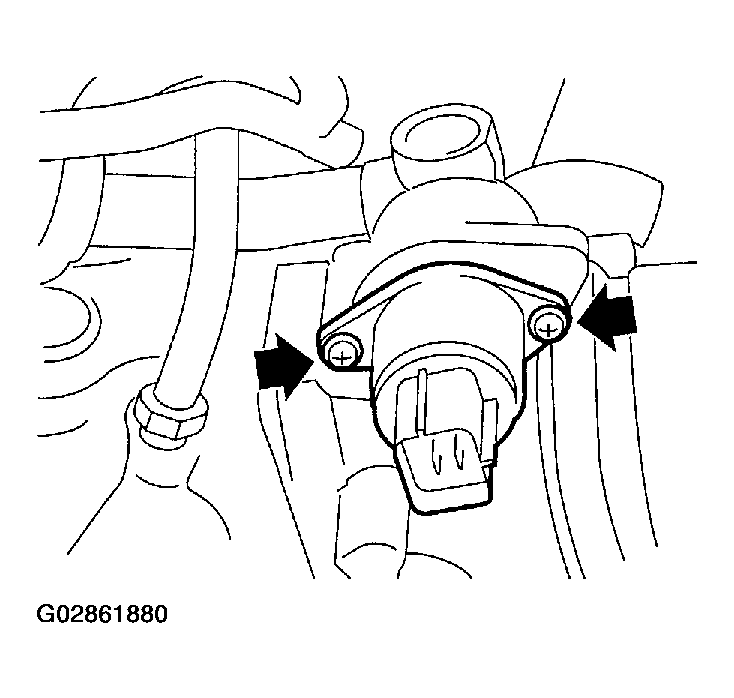

Fig 3: Removing Idle Air Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
