2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Draining Of Fuel

WARNING:
  • Place "No fire" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE  .
  2. Open fuel flap lid, and remove fuel filler cap.

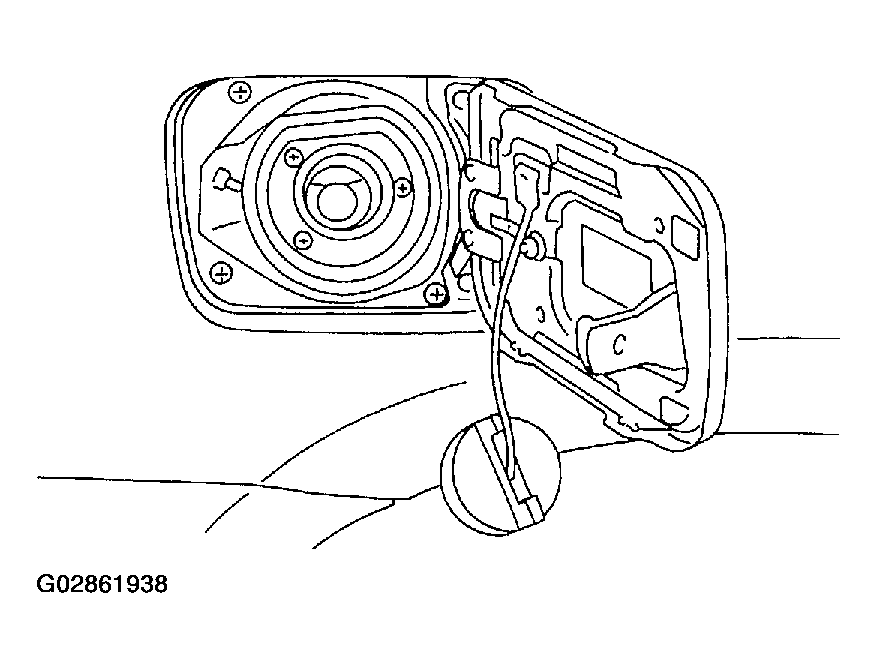

    Fig 1: Removing Fuel Filler Cap
    G02861938Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect battery ground cable.

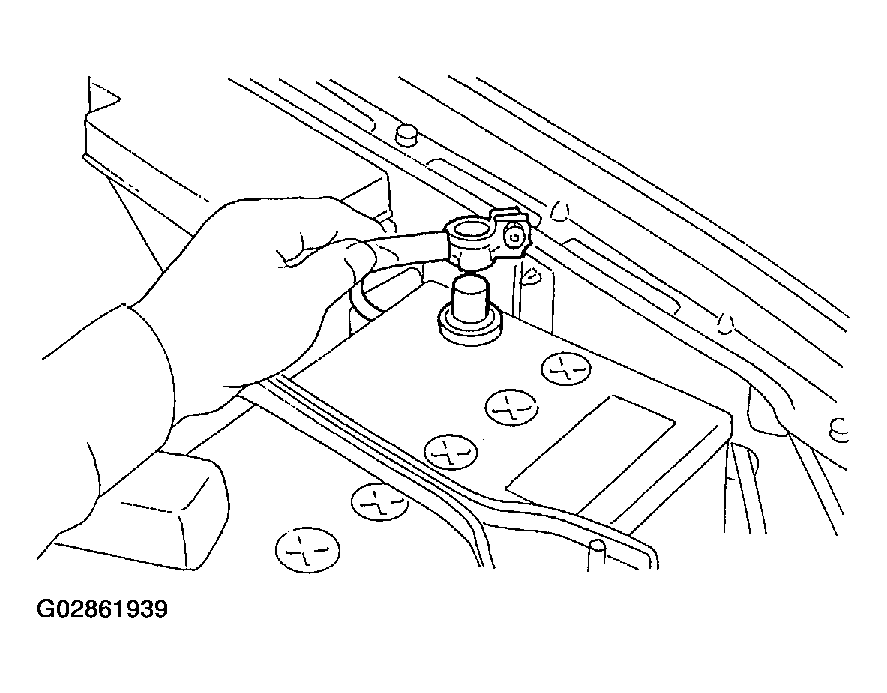

    Fig 2: Disconnecting Battery Ground Cable
    G02861939Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the floor box located just behind the rear seats.
  5. Remove access hole lid.

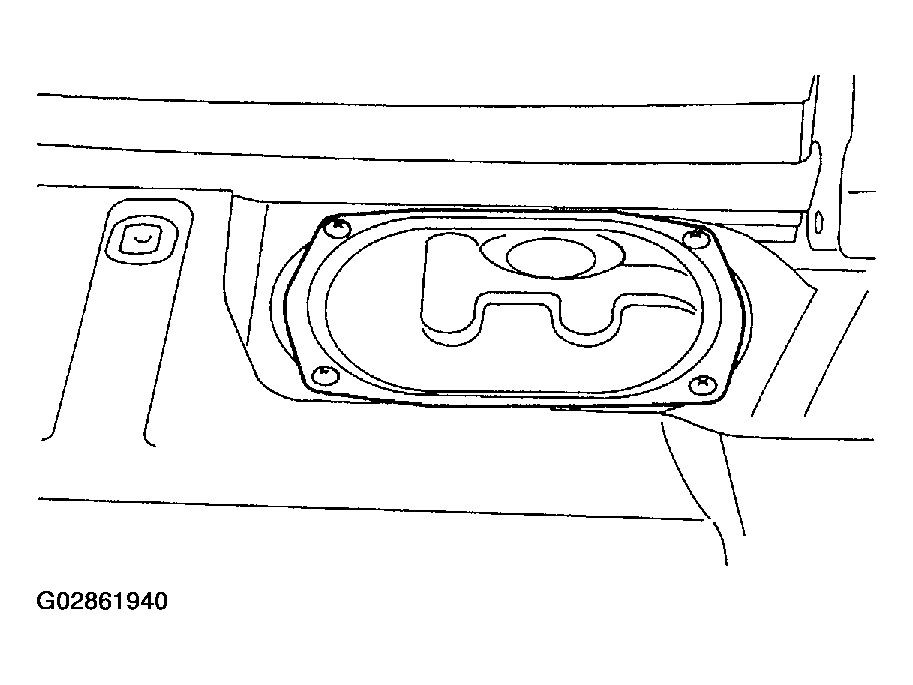

    Fig 3: Removing Access Hole Lid
    G02861940Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect connector from fuel pump.

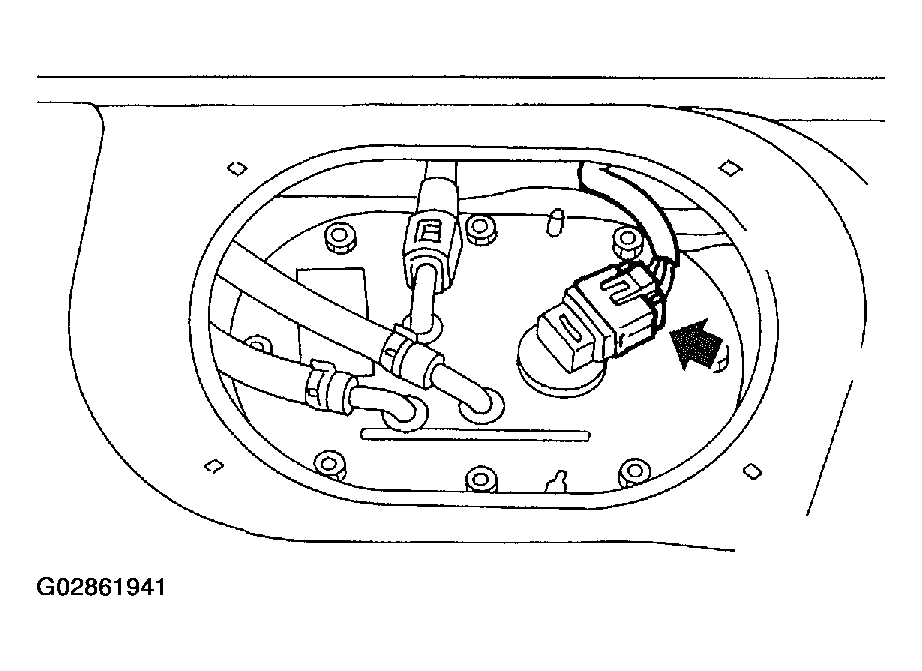

    Fig 4: Disconnecting Connector From Fuel Pump
    G02861941Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect quick connector, and then disconnect fuel delivery hose (A). Refer to Fuel Delivery, Return and Evaporation Lines  .
  8. Move clips, and then disconnect fuel return hose (B) and jet pump hose (C).

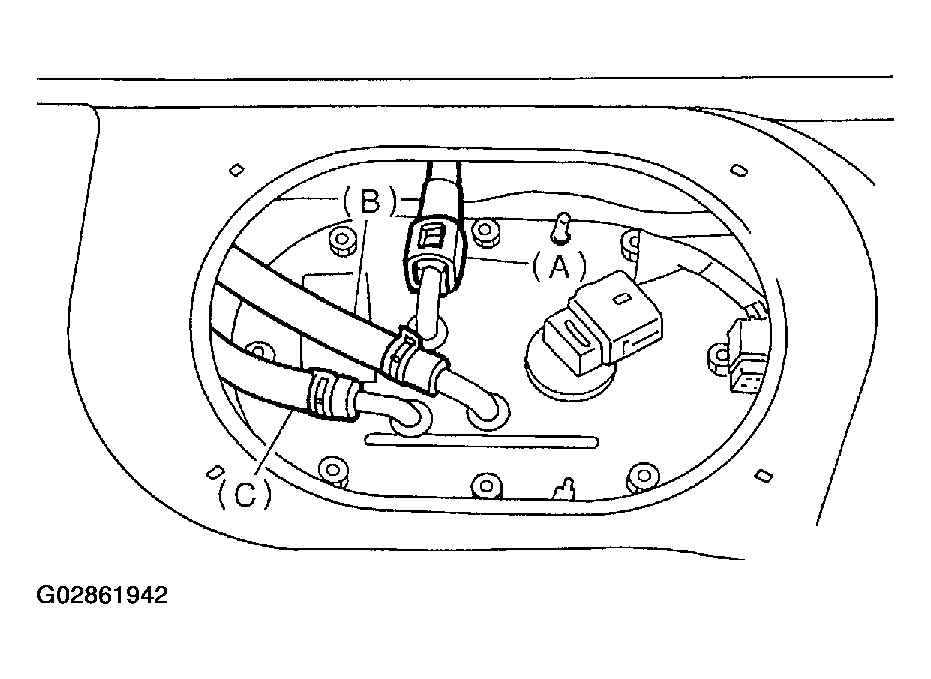

    Fig 5: Disconnecting Fuel Return Hose And Jet Pump Hose
    G02861942Courtesy of SUBARU OF AMERICA, INC.
  9. Remove nuts which install fuel pump assembly onto fuel tank.

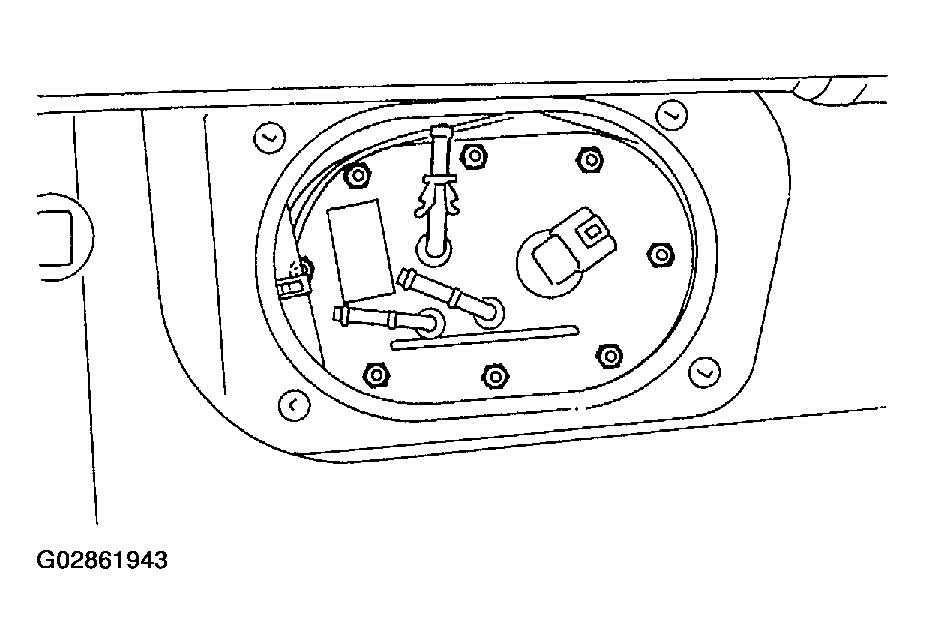

    Fig 6: Removing Fuel Pump Assembly Nuts
    G02861943Courtesy of SUBARU OF AMERICA, INC.
  10. Take off fuel pump from fuel tank.

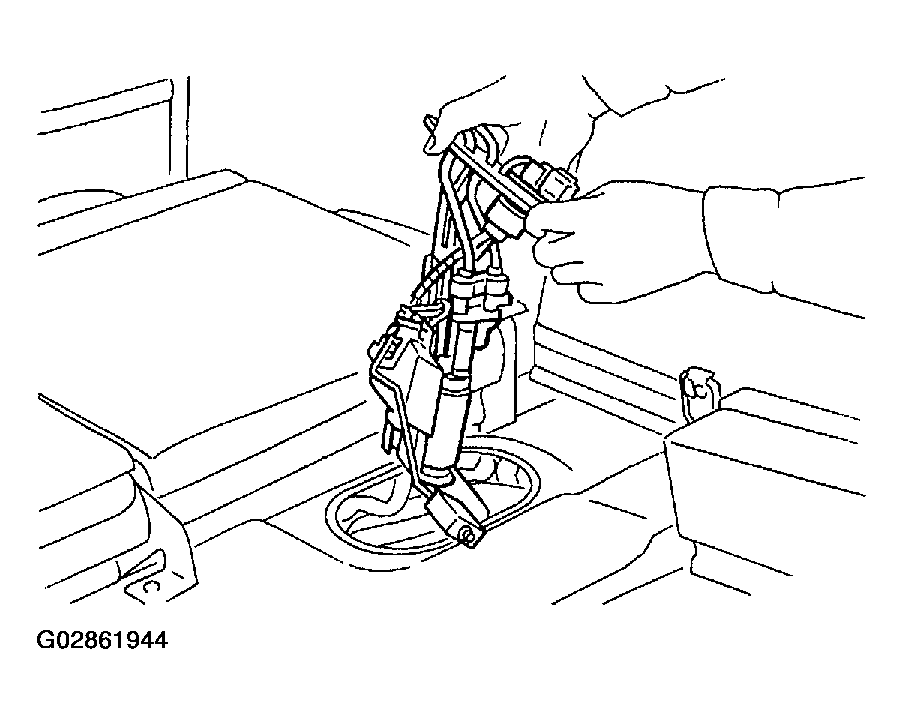

    Fig 7: Removing Fuel Pump
    G02861944Courtesy of SUBARU OF AMERICA, INC.
  11. Drain fuel from fuel tank by using a hand pump.
    WARNING: Do not use a motor pump when draining fuel.
