2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

LH Side

  1. Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE  .
  2. Open fuel flap lid, and remove fuel filler cap.
  3. Disconnect battery ground cable.

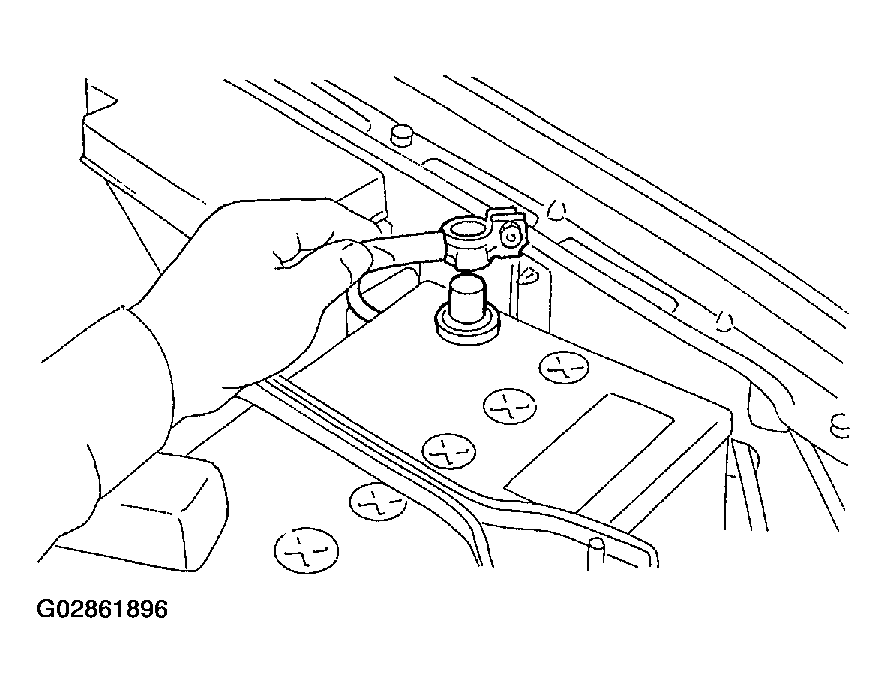

    Fig 1: Disconnecting Battery Ground Cable
    G02861896Courtesy of SUBARU OF AMERICA, INC.
  4. Remove two bolts which install washer tank on body.

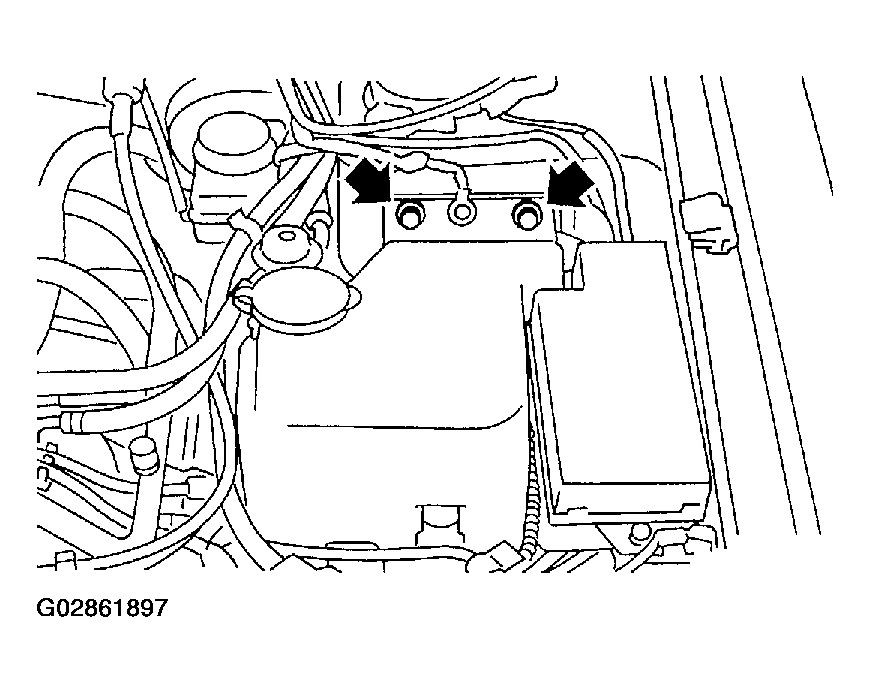

    Fig 2: Removing Washer Tank Bolts
    G02861897Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect connector from front window washer motor.
  6. Disconnect connector from rear gate glass washer motor.

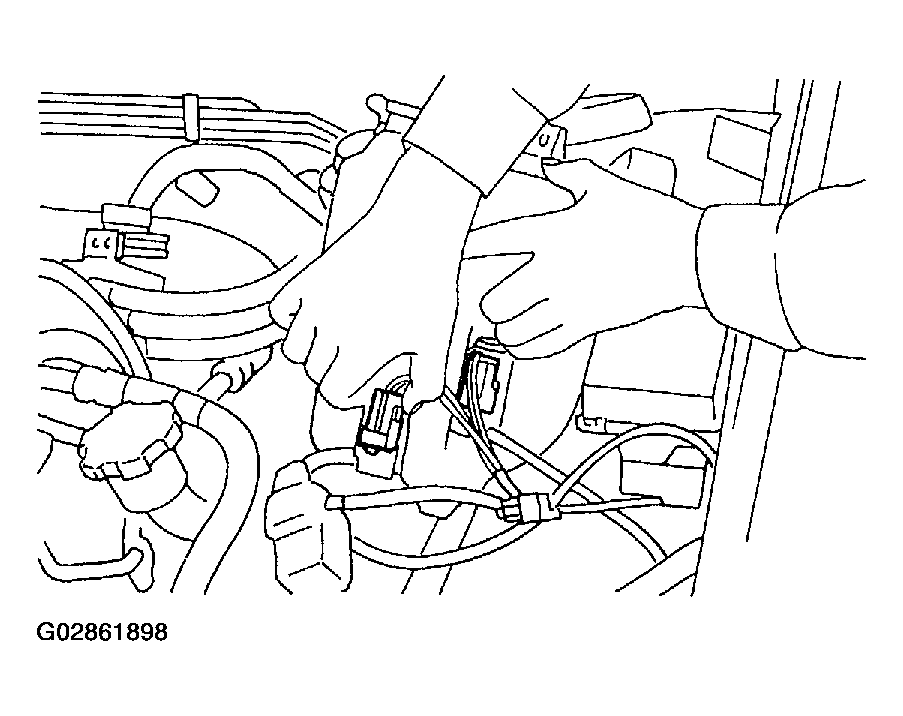

    Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor
    G02861898Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
  8. Move washer tank, and secure it away from working area.

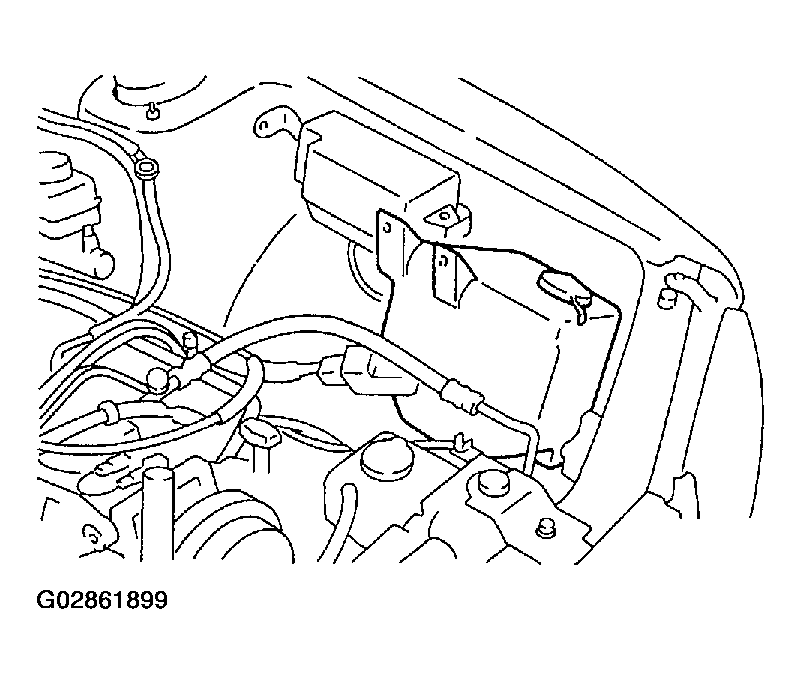

    Fig 4: Moving Washer Tank
    G02861899Courtesy of SUBARU OF AMERICA, INC.
  9. Remove spark plug cords from spark plugs (#2 and #4 cylinders).
  10. Disconnect connector from fuel injector

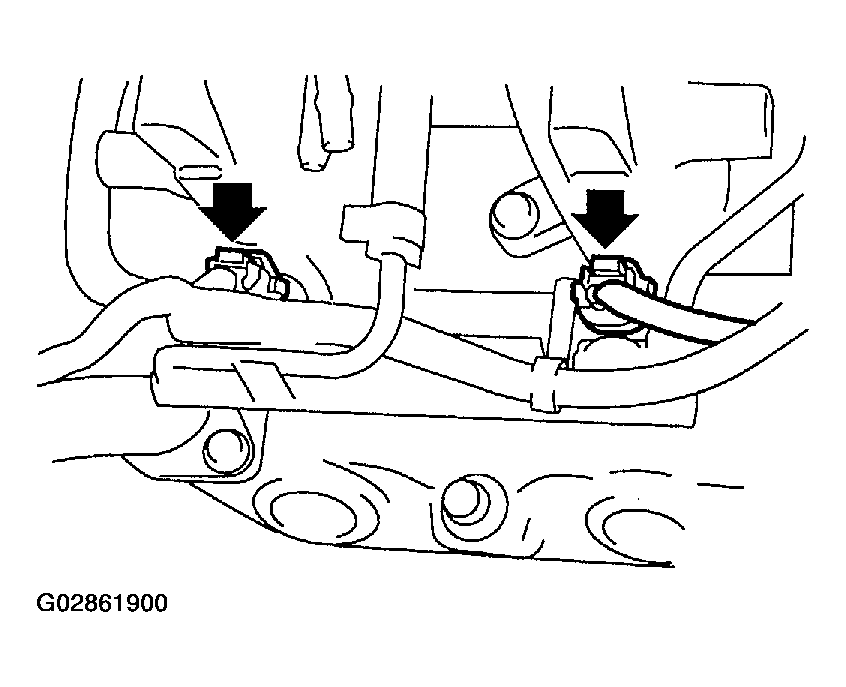

    Fig 5: Disconnecting Connector From Fuel Injector
    G02861900Courtesy of SUBARU OF AMERICA, INC.
  11. Remove bolt which holds injector pipe to intake manifold.

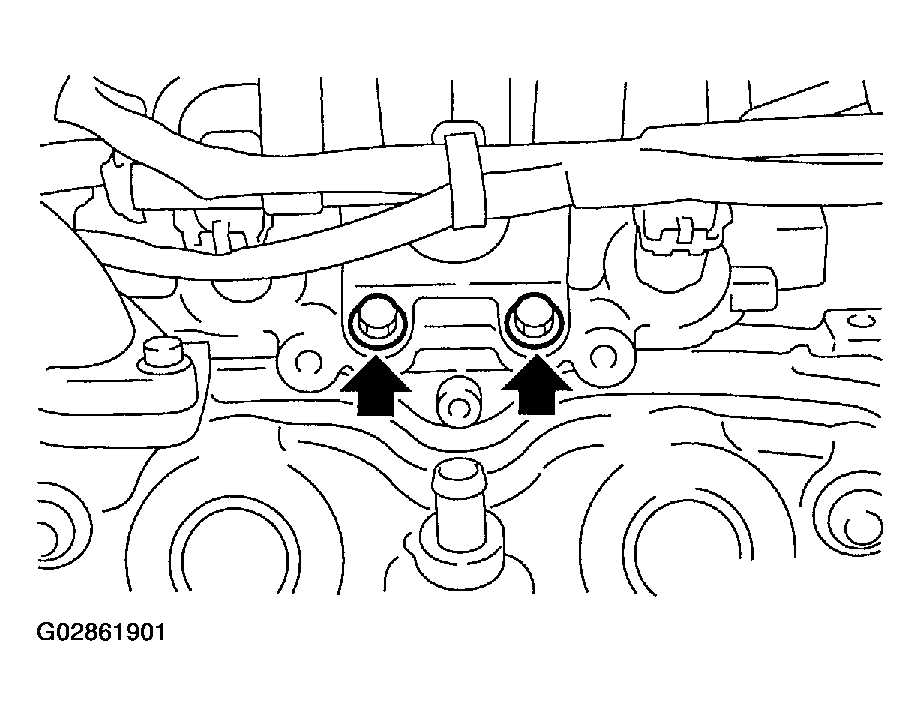

    Fig 6: Removing Injector Pipe Bolts (1 Of 2)
    G02861901Courtesy of SUBARU OF AMERICA, INC.
