2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Fuel Filler Pipe: Installation

  1. Set fuel filler pipe from under side of vehicle, and hold it on fuel filler flap .

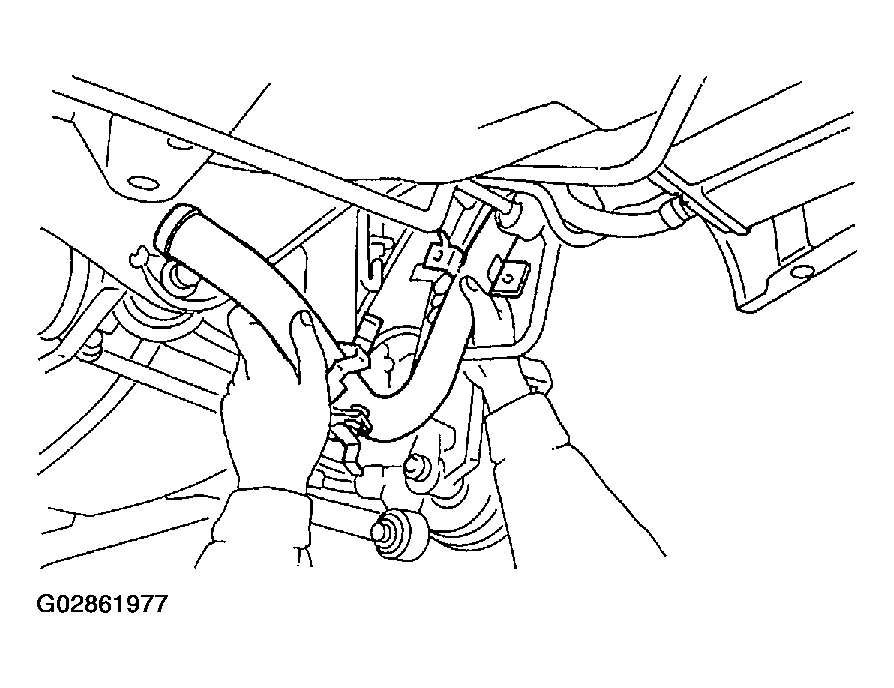

    Fig 1: Installing Fuel Filler Pipe
    G02861977Courtesy of SUBARU OF AMERICA, INC.
  2. Connect fuel filler pipe into fuel filler hose.

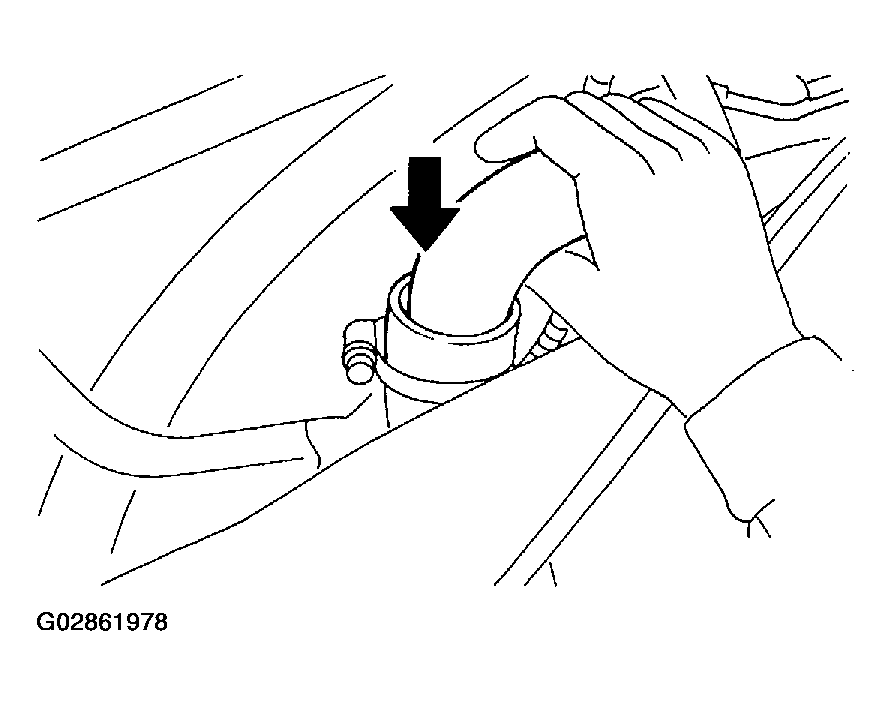

    Fig 2: Connecting Fuel Filler Pipe Into Fuel Filler Hose
    G02861978Courtesy of SUBARU OF AMERICA, INC.
  3. Lower the vehicle.
  4. Temporarily tighten screws which install fuel filler pipe on filler lid open.
    Fig 3: Installing Fuel Filler Pipe Screws
    G02861979Courtesy of SUBARU OF AMERICA, INC.
  5. Connect evaporation hoses to pipes.

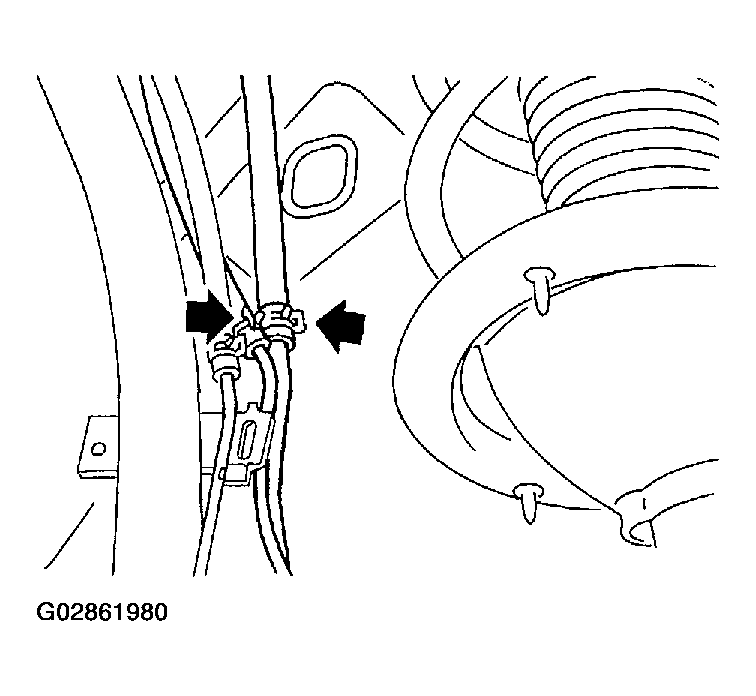

    Fig 4: Connecting Evaporation Hoses
    G02861980Courtesy of SUBARU OF AMERICA, INC.
  6. Lift-up the vehicle.
  7. Tighten clamp bolt which holds fuel filler hose.

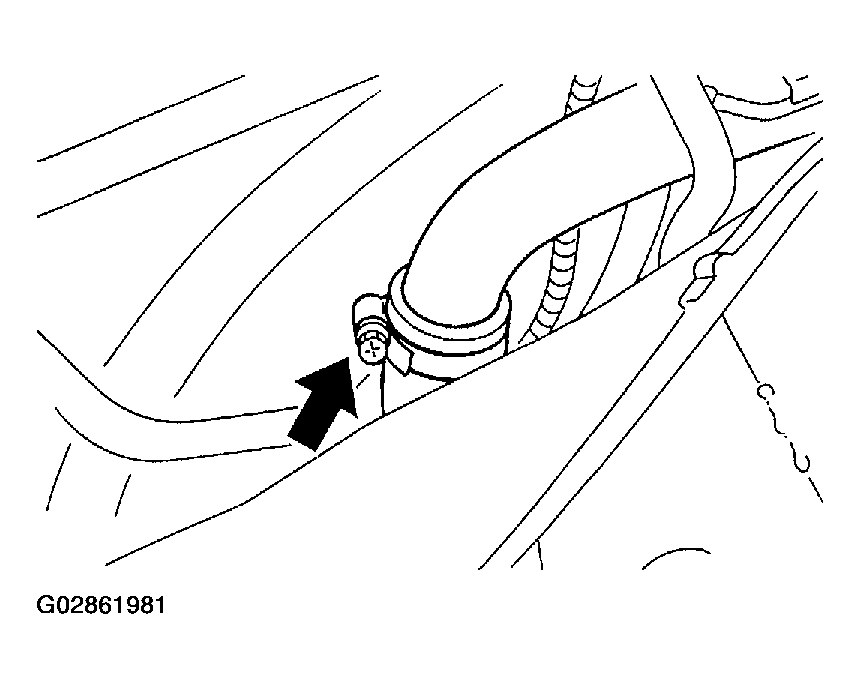

    Fig 5: Tightening Fuel Filler Hose Clamp Bolt
    G02861981Courtesy of SUBARU OF AMERICA, INC.
  8. Install two evaporation hoses to clip.

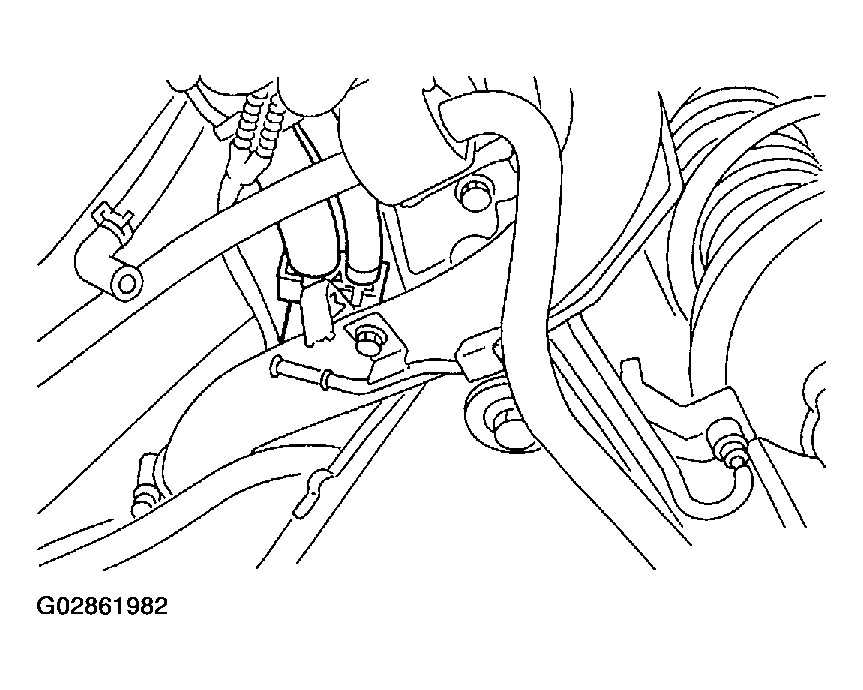

    Fig 6: Installing Two Evaporation Hoses To Clip
    G02861982Courtesy of SUBARU OF AMERICA, INC.
  9. Connect evaporation hose to joint pipe.

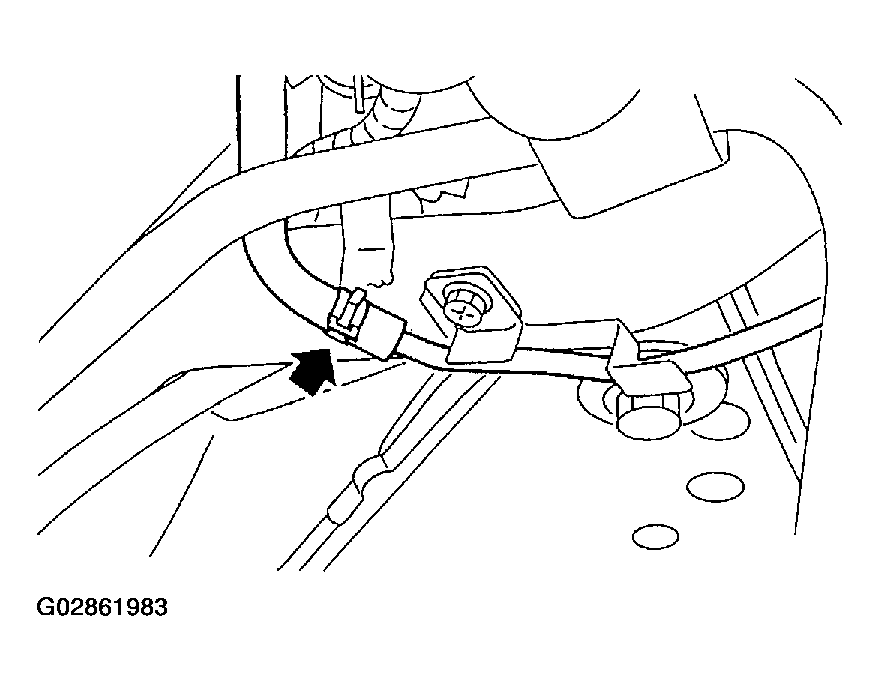

    Fig 7: Connecting Evaporation Hose
    G02861983Courtesy of SUBARU OF AMERICA, INC.
  10. Lower the vehicle.
  11. While holding the under side of protector cover on bracket, install it.

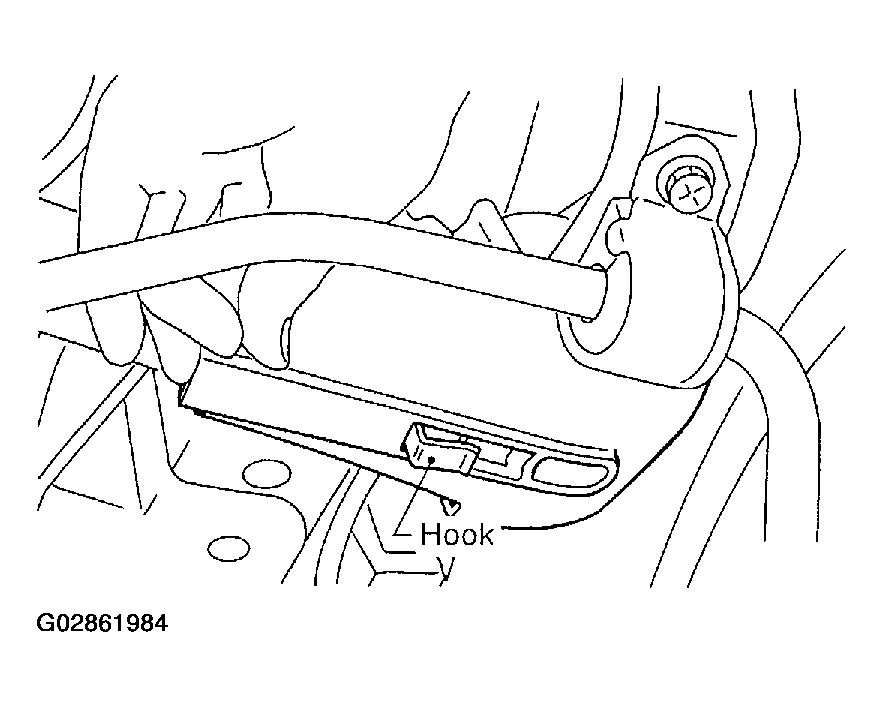

    Fig 8: Installing Protector Cover
    G02861984Courtesy of SUBARU OF AMERICA, INC.
  12. Tighten bolts which install protector cover on body.

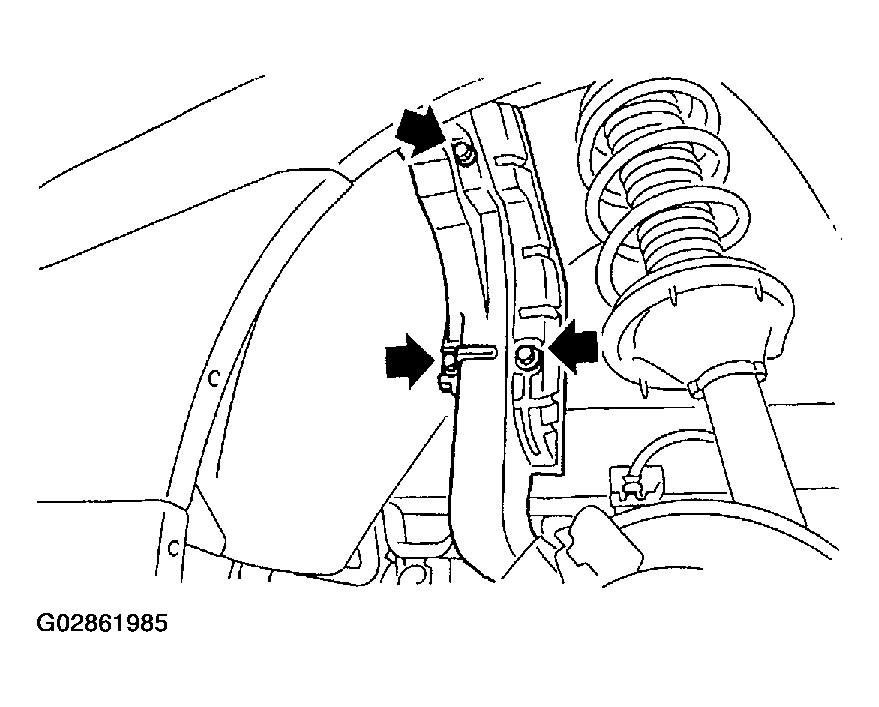

    Fig 9: Tightening Protector Cover Bolts
    G02861985Courtesy of SUBARU OF AMERICA, INC.
  13. Tighten screws which install fuel filler pipe on filler lid open.

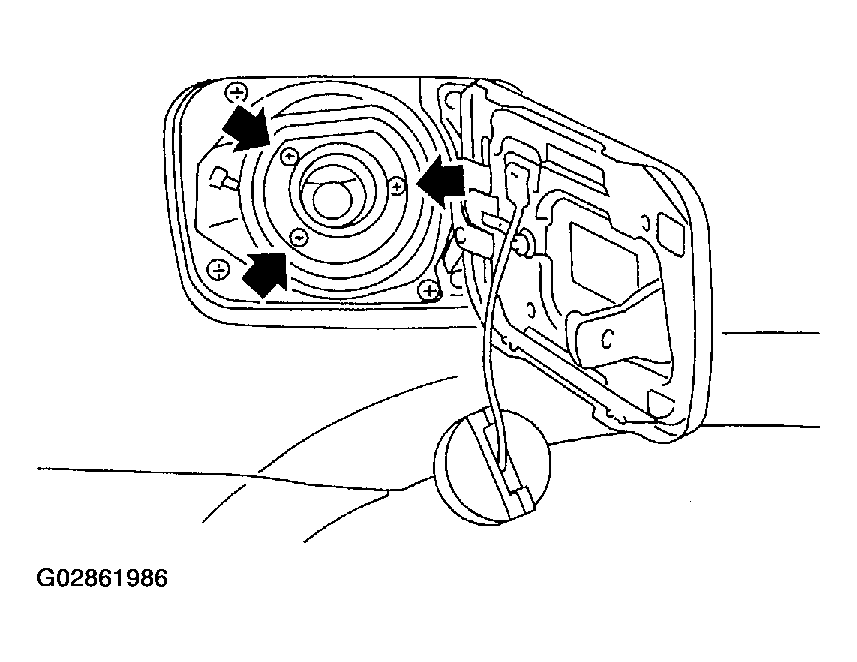

    Fig 10: Tightening Fuel Filler Pipe Screws
    G02861986Courtesy of SUBARU OF AMERICA, INC.
  14. Install rear right wheel.

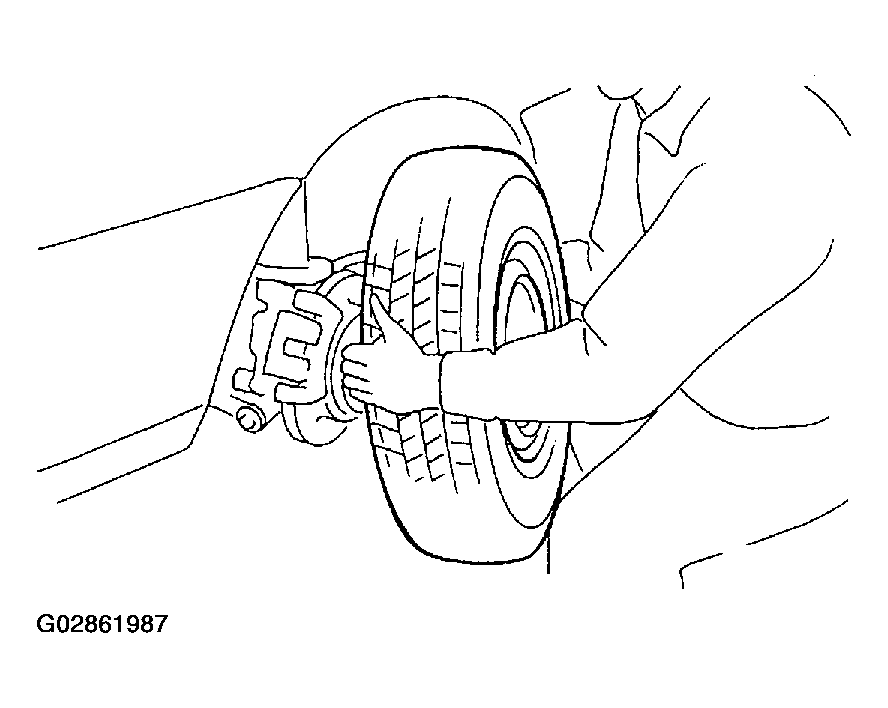

    Fig 11: Installing Rear Right Wheel
    G02861987Courtesy of SUBARU OF AMERICA, INC.
  15. install fuel filler cap.
  16. Connect connector to fuel pump relay.

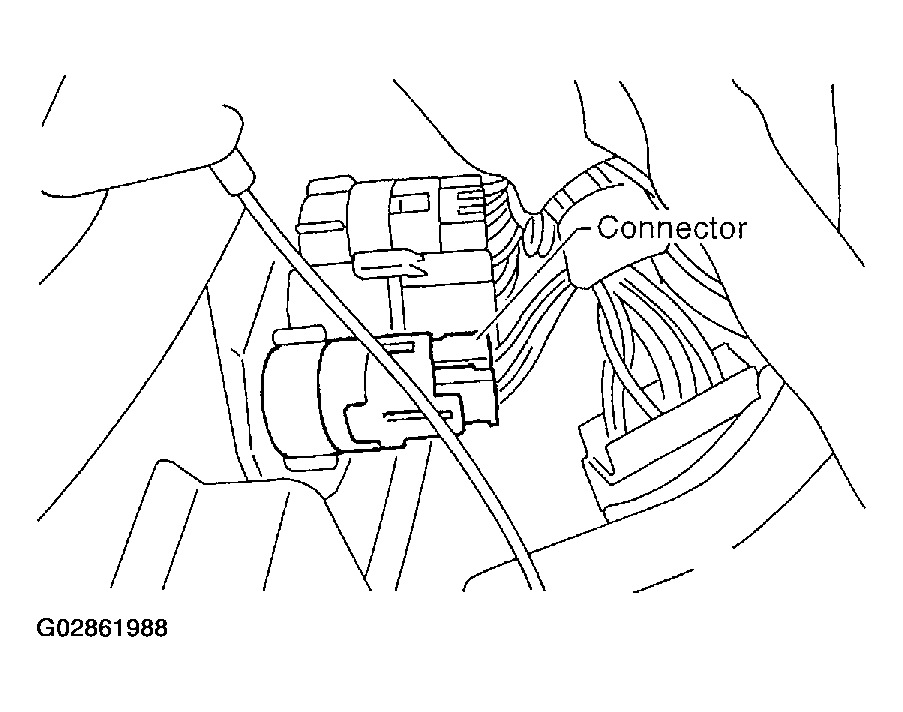

    Fig 12: Connecting Connector To Fuel Pump Relay
    G02861988Courtesy of SUBARU OF AMERICA, INC.
  17. Connect battery ground terminal.

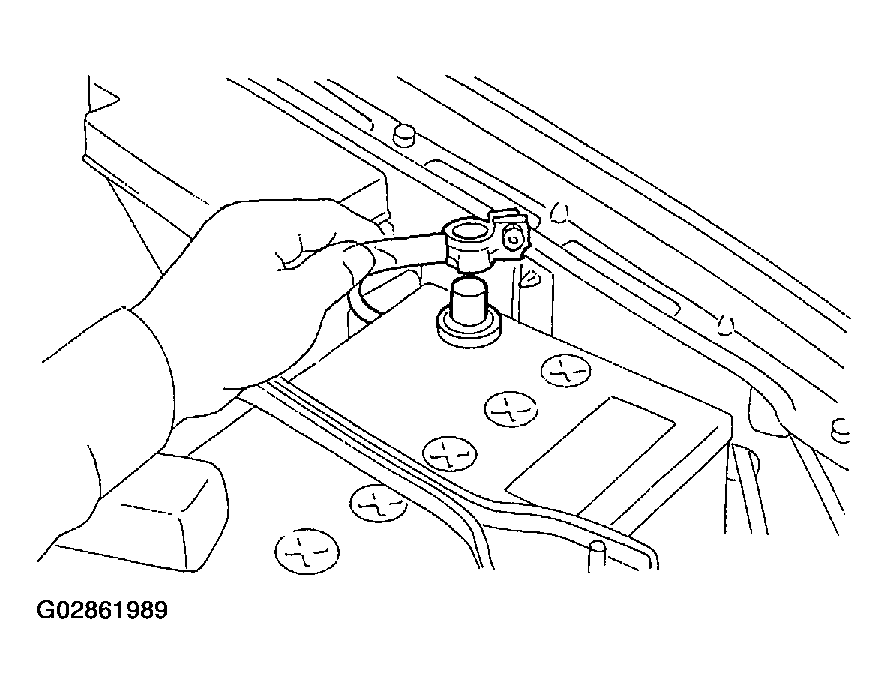

    Fig 13: Connecting Battery Ground Terminal
    G02861989Courtesy of SUBARU OF AMERICA, INC.
