2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Fuel Filler Pipe: Disassembly

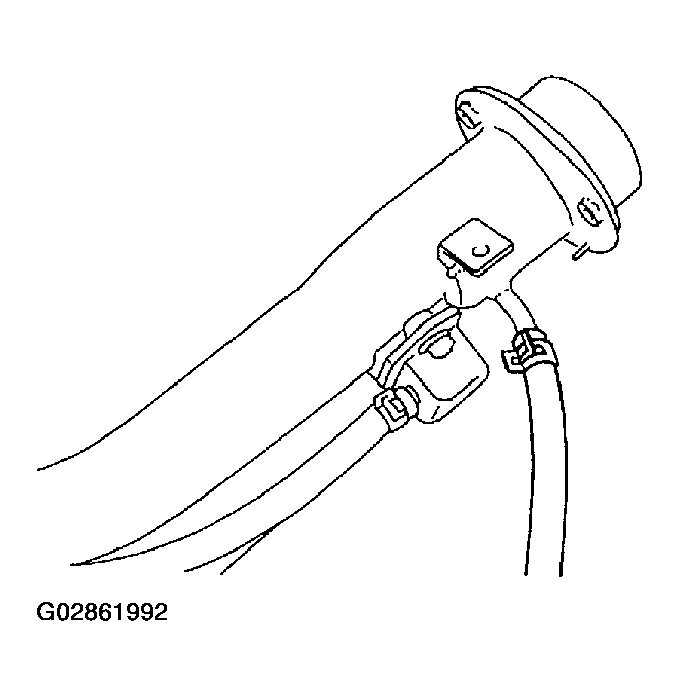

- Move clip, and disconnect evaporation hose from joint pipe.

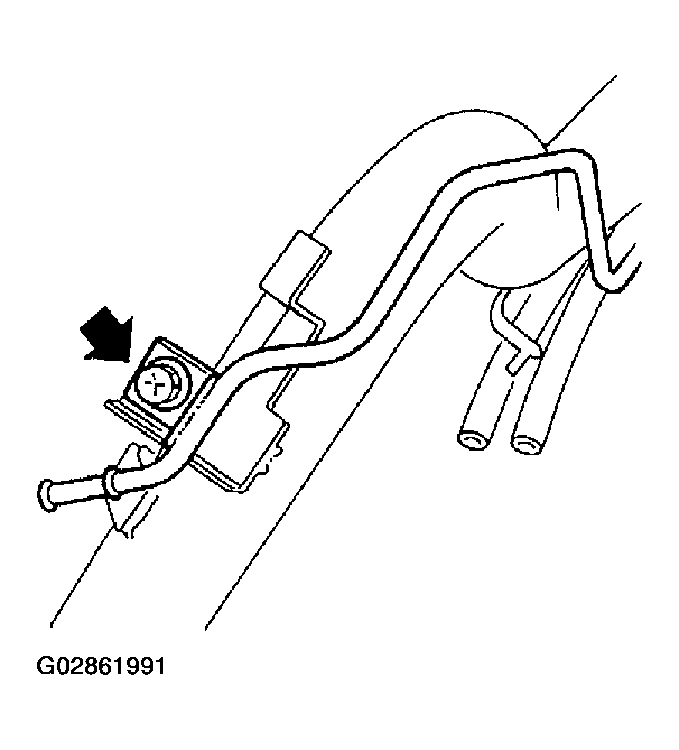

- Remove bolt which installs joint pipe on fuel filler pipe.

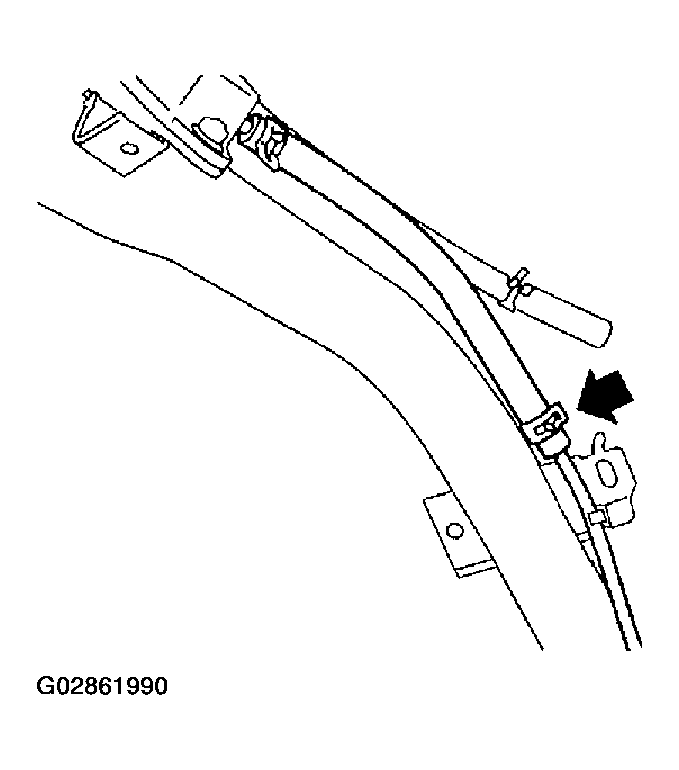

- Disconnect evaporation hose from fuel filler pipe.

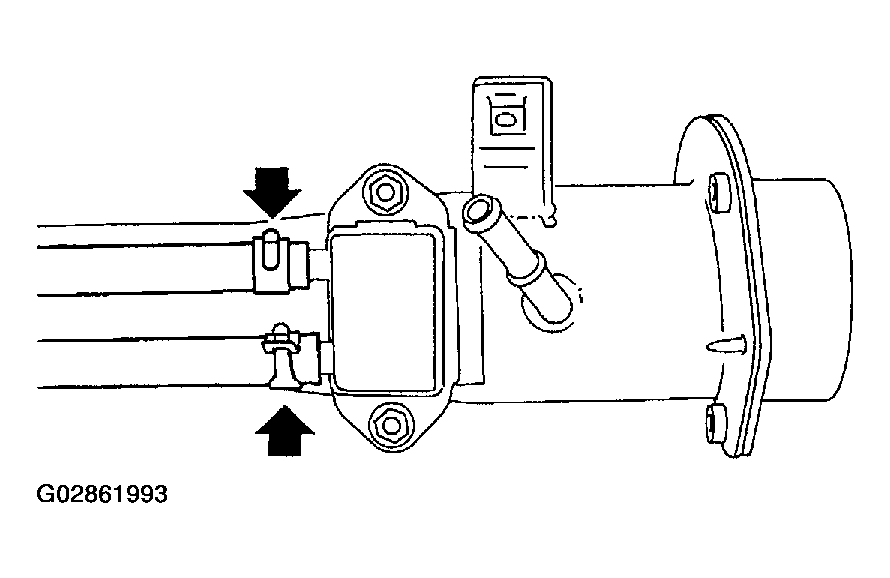

- Disconnect evaporation hoses from shut valve.

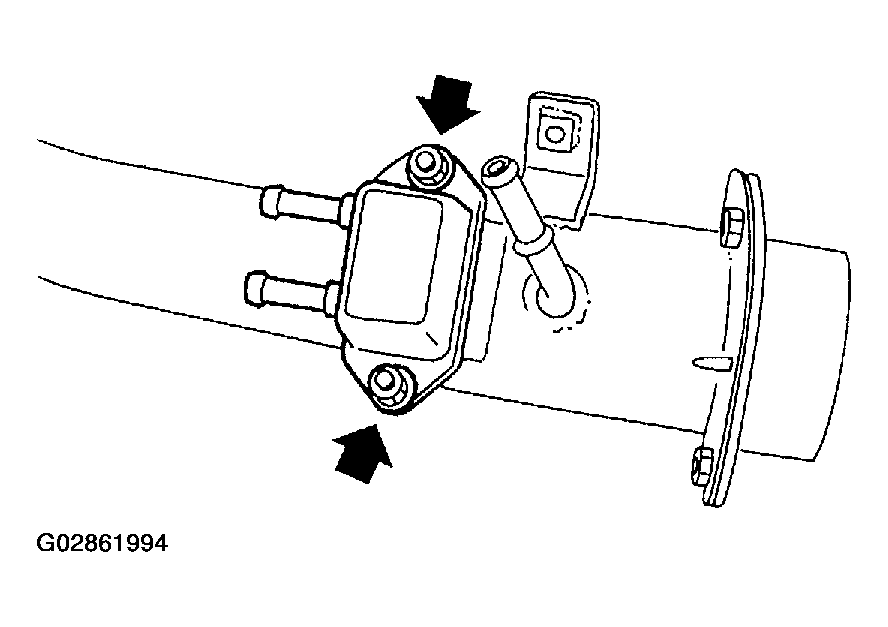

- Remove shut valve from fuel filler pipe.
