2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Bench Testing: Brushes

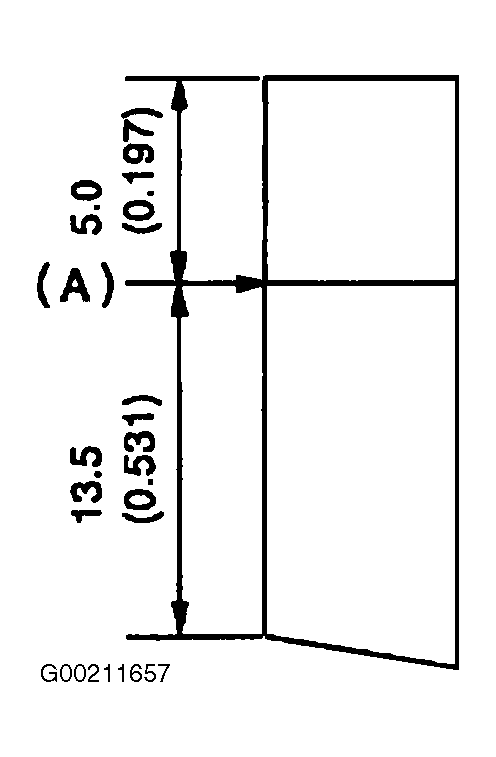

- Measure the length of each brush. See Fig 1 . If wear exceeds the service limit, replace the brush. Each has the service limit mark (A) on it.
- Checking brush for proper pressure using a spring pressure indicator, push the brush into the brush holder until its tip protrudes .08" (2 mm). See Fig 2 . Then measure the pressure of brush spring.
