2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Rear ABS Sensor: Removal
- Set vehicle on a lift.
- Disconnect battery ground cable.
- Loosen wheel nuts.
- Lift vehicle, and remove wheels.
- Remove rear seat and disconnect rear ABS sensor connector.
- Remove rear sensor harness bracket from rear trailing link and bracket.

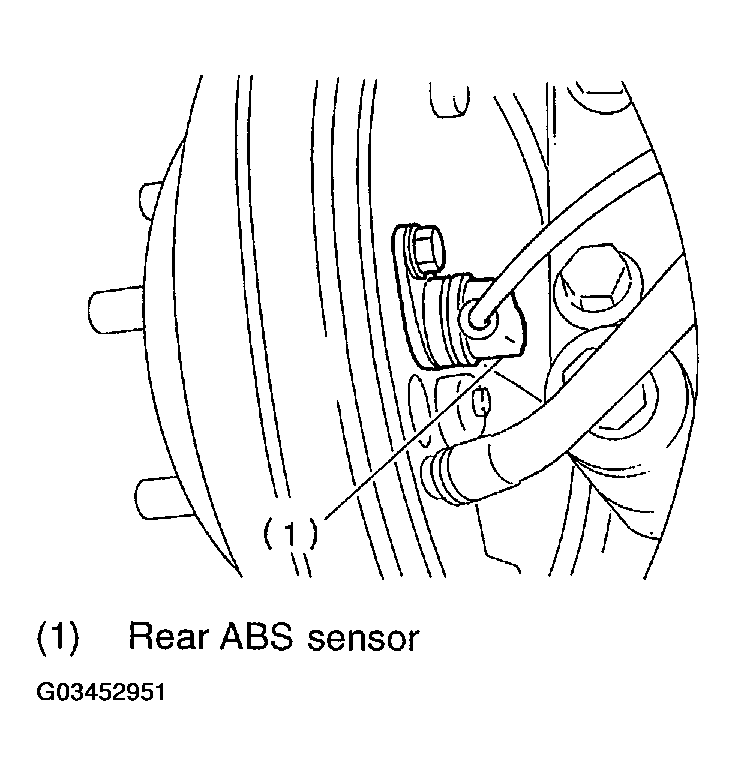

- Remove rear ABS sensor from rear back plate.
