Sensor Gap

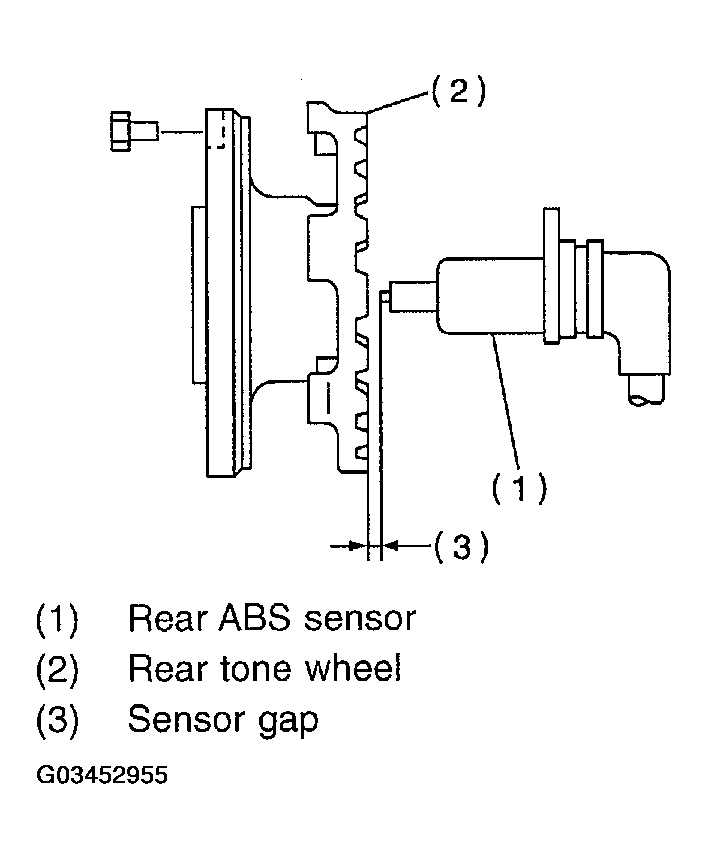

Clearances (sensor gaps) should be measured one by one to ensure tone wheel and speed sensor are installed correctly.
ABS sensor clearance:
- 0.7 - 1.2 mm (0.028 - 0.047 in)
- If clearance is narrow, adjust by using a spacer (Part No. 26755AA000).
- If clearance is wide, check the outputted voltage then replace ABS sensor or tone wheel if the out-putted voltage is outside the specification.
