2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Front ABS Sensor: Removal
- Set vehicle on a lift.
- Disconnect battery ground cable.
- Loosen the wheel nuts.
- Lift vehicle and remove wheels.

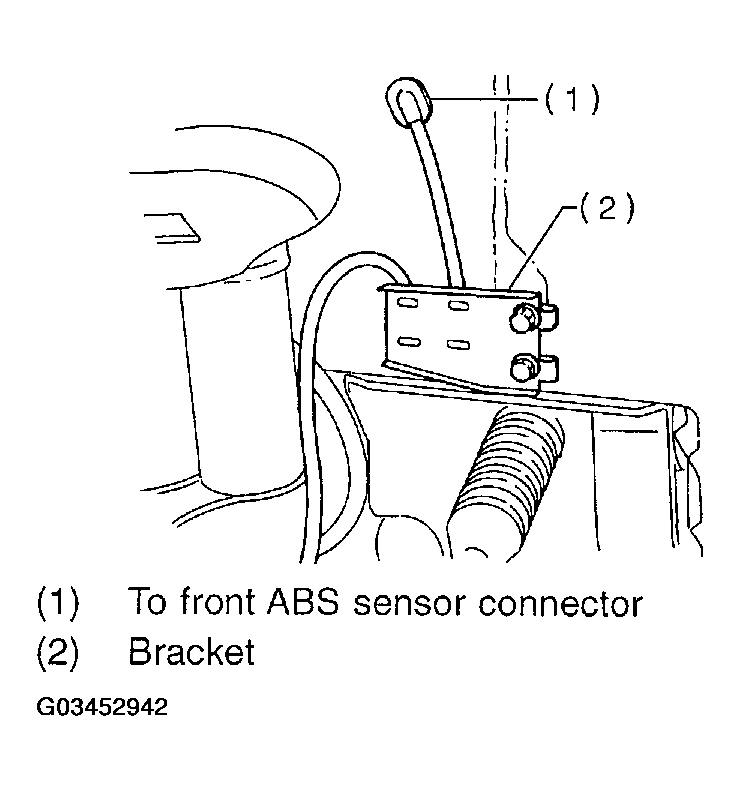

- Disconnect front ABS sensor connector located next to front strut mounting house in engine compartment.

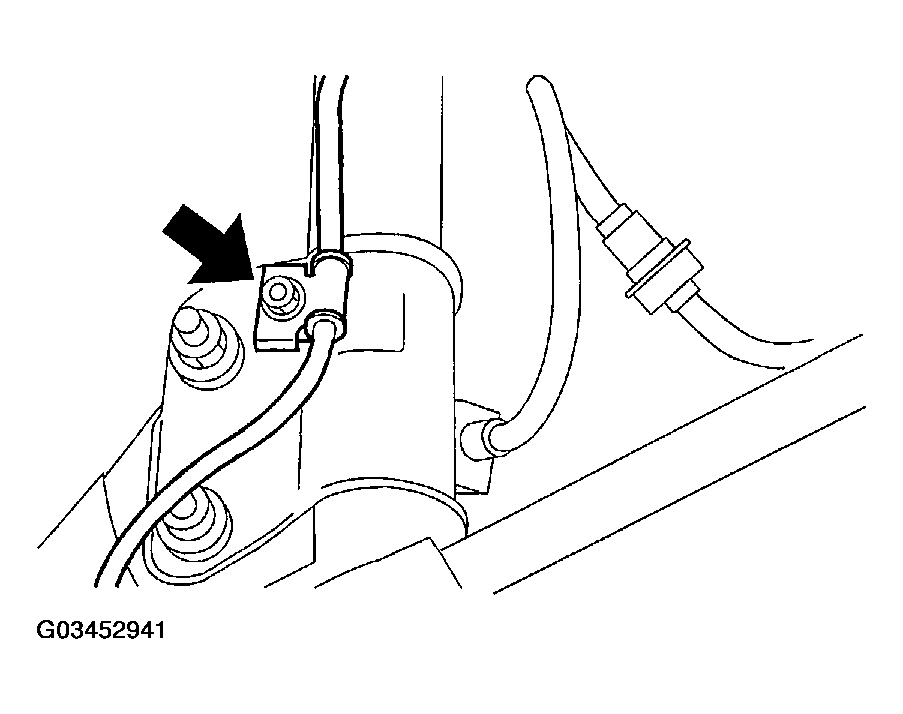

- Remove bolts which secure sensor harness to strut.
- Remove bolts which secure sensor harness to body.
- Remove bolts which secure front ABS sensor to housing, and remove front ABS sensor.CAUTION:
- During removal, be careful not to damage the pole piece and teeth face located at the tip of the sensor.
- Do not pull sensor harness during removal.
