2002 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Abs Sensor
- Check pole piece of ABS sensor for foreign particles or damage. If necessary, clean pole piece or replace ABS sensor.

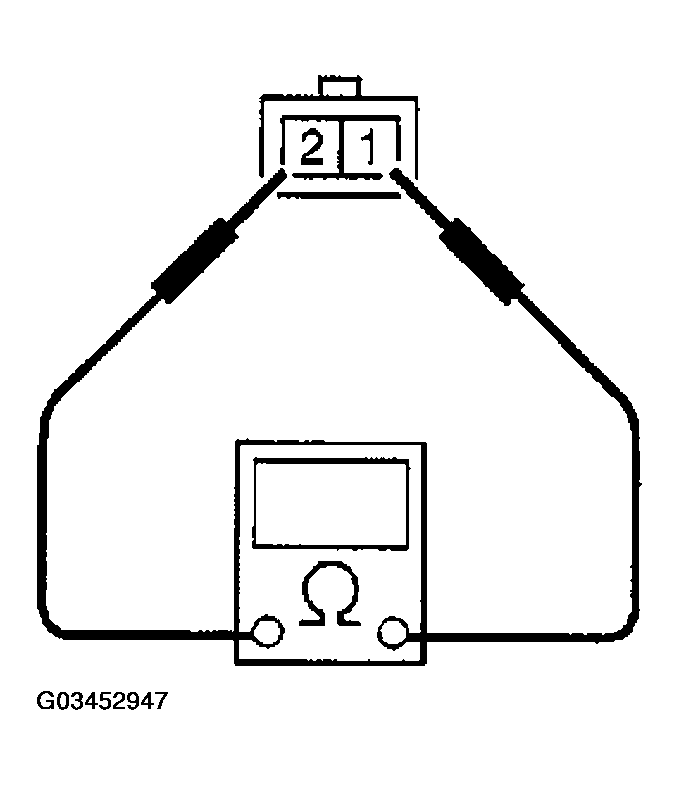

- Measure ABS sensor resistance.
TERMINAL SPECIFICATIONS
| Terminal No. | Standard |
|---|---|
| 1 and 2 | 1.25+/-0.25 kohm |
CAUTION:
If resistance is outside the standard value, replace ABS sensor with a new one.
