2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Transmission Control Device: Removal
- Extract the torque converter clutch assembly.NOTE:
- Extract the torque converter clutch horizontally. Be careful not to scratch the bushing inside the oil pump shaft.
- Note that oil pump shaft also comes out.
- Remove the input shaft.
- Disconnect transmission harness connector from stay.NOTE: Lift-up lever behind the connector and disconnect it from stay.
- Disconnect inhibitor switch connector from stay.
- Disconnect the air breather hoses. See Air Breather Hose .
- Wrap vinyl tape around the nipple attached to the air breather hose.
- Remove pitching stopper bracket.

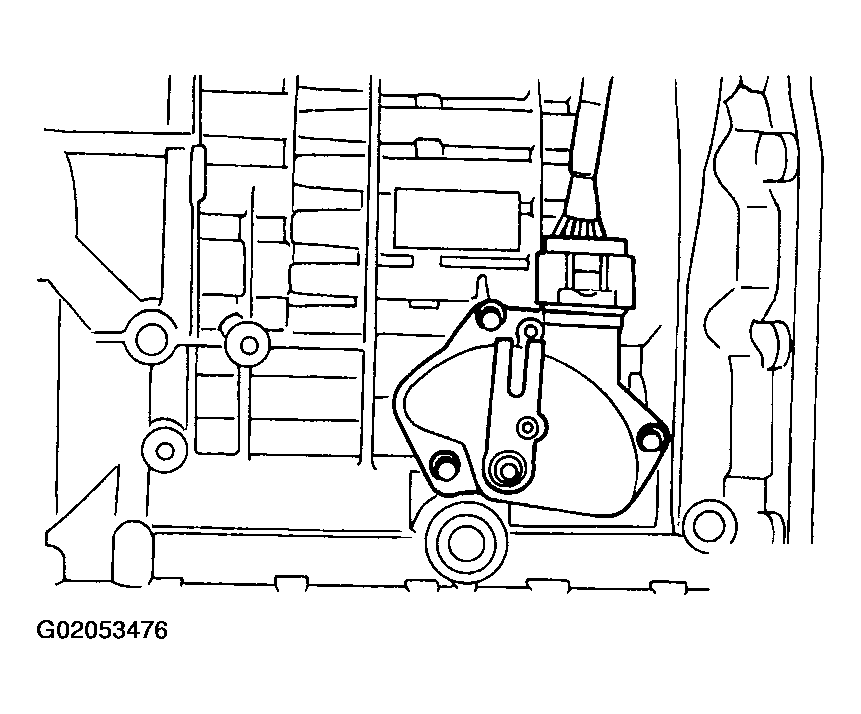

- Remove the inhibitor switch.
- Prepare a block of wood. Turn the transmission case over, and support it with the block of wood.NOTE: Turn the transmission case in the direction the inhibitor switch was installed.
- Remove the oil pan.NOTE: Use a scraper to remove oil pan.
