2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

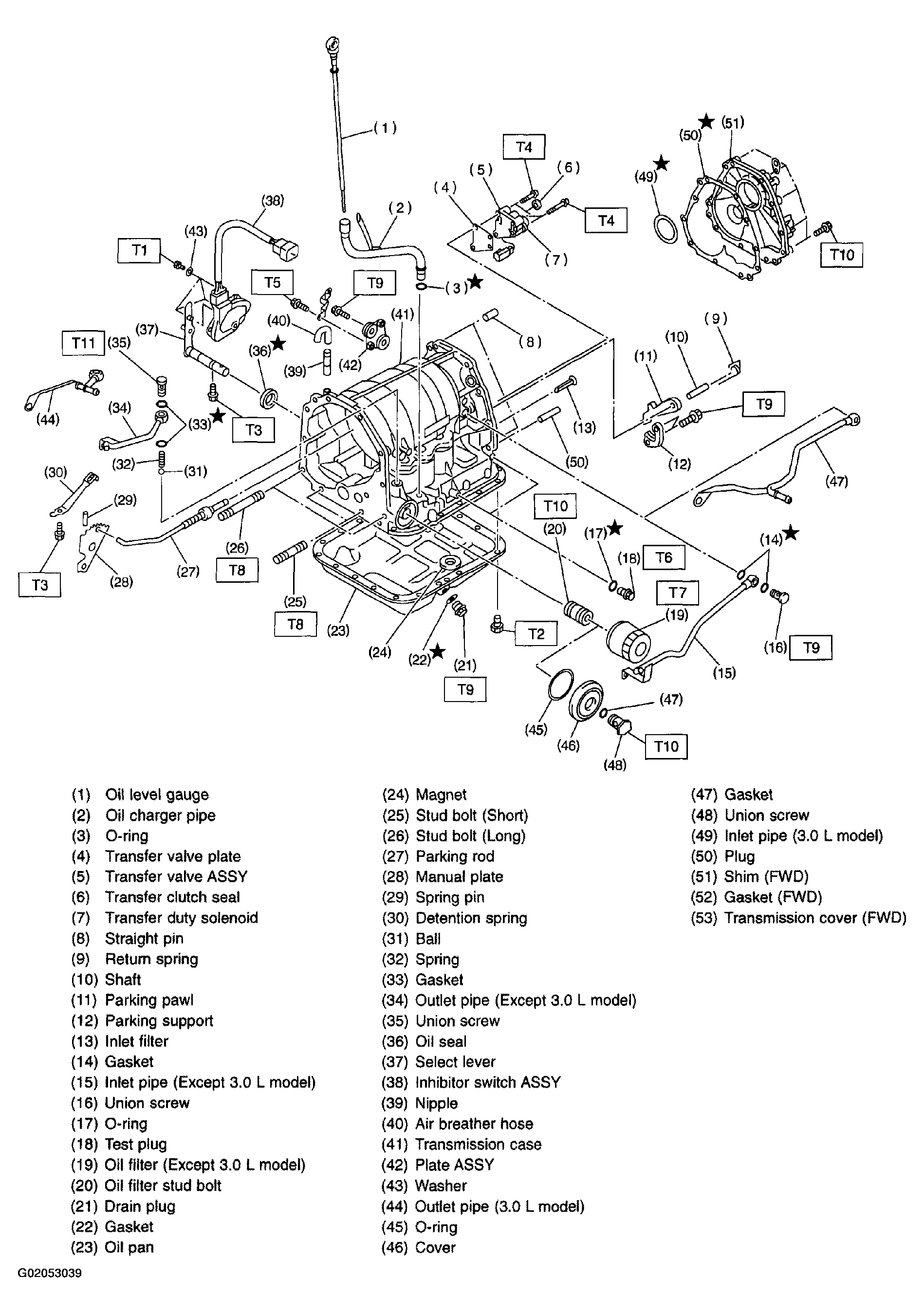

Transmission Case And Control Device
Tightening torque: N.m (kgf-m, ft-lb)
- T1: 3.4 (0.35, 2.5)
- T2: 4.9 (0.50, 3.6)
- T3: 5.9 (0.60, 4.3)
- T4: 7.8 (0.80, 5.8)
- T5: 12 (1.2, 8.4)
- T6: 12.7 (1.3, 9.4)
- T7: 13.7 (1.4, 10.1)
- T8: 17.7 (1.8, 13.0)
- T9: 24.5 (2.5, 18.1)
- T10: 24.5 (2.5, 18.1)
- T11: 45 (4.5, 32.5)
