2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Control Valve Body Assembly: Installation

  1. Set the select lever in range "N".
  2. Align the groove of the manual valve to the protrusion of the manual lever, and then install the control valve body assembly.

    Tightening torque:

    1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)

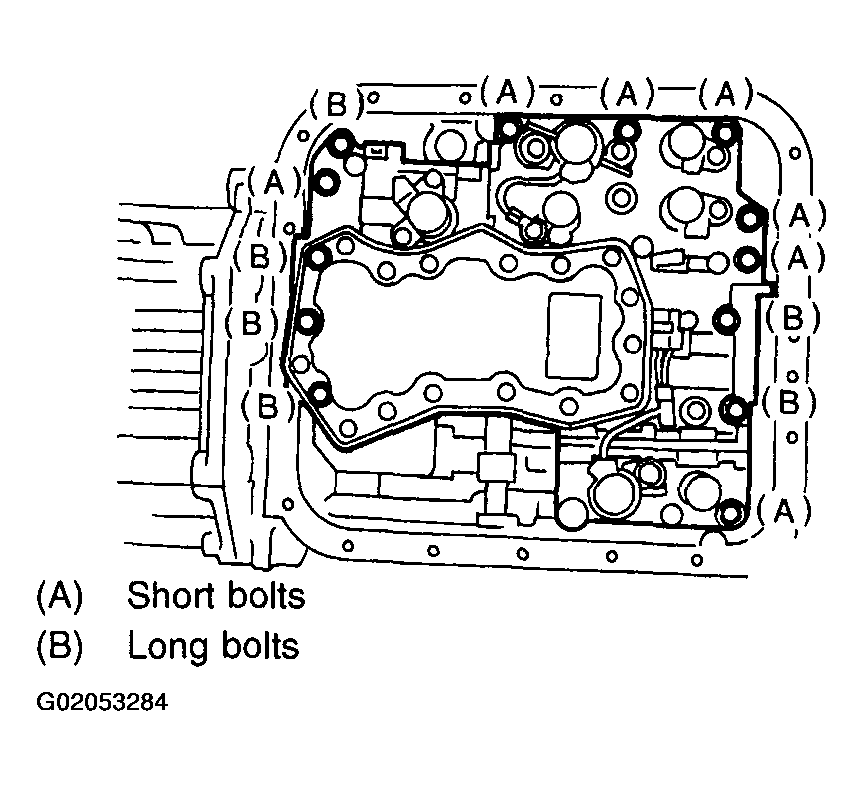

    Fig 1: Identifying Valve Body Bolts
    G02053284
  3. Tighten the valve body to the specified torque.
    CAUTION: Tighten the control valve mounting bolts evenly.

    Tightening torque:

    1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
  4. Connect all connectors.

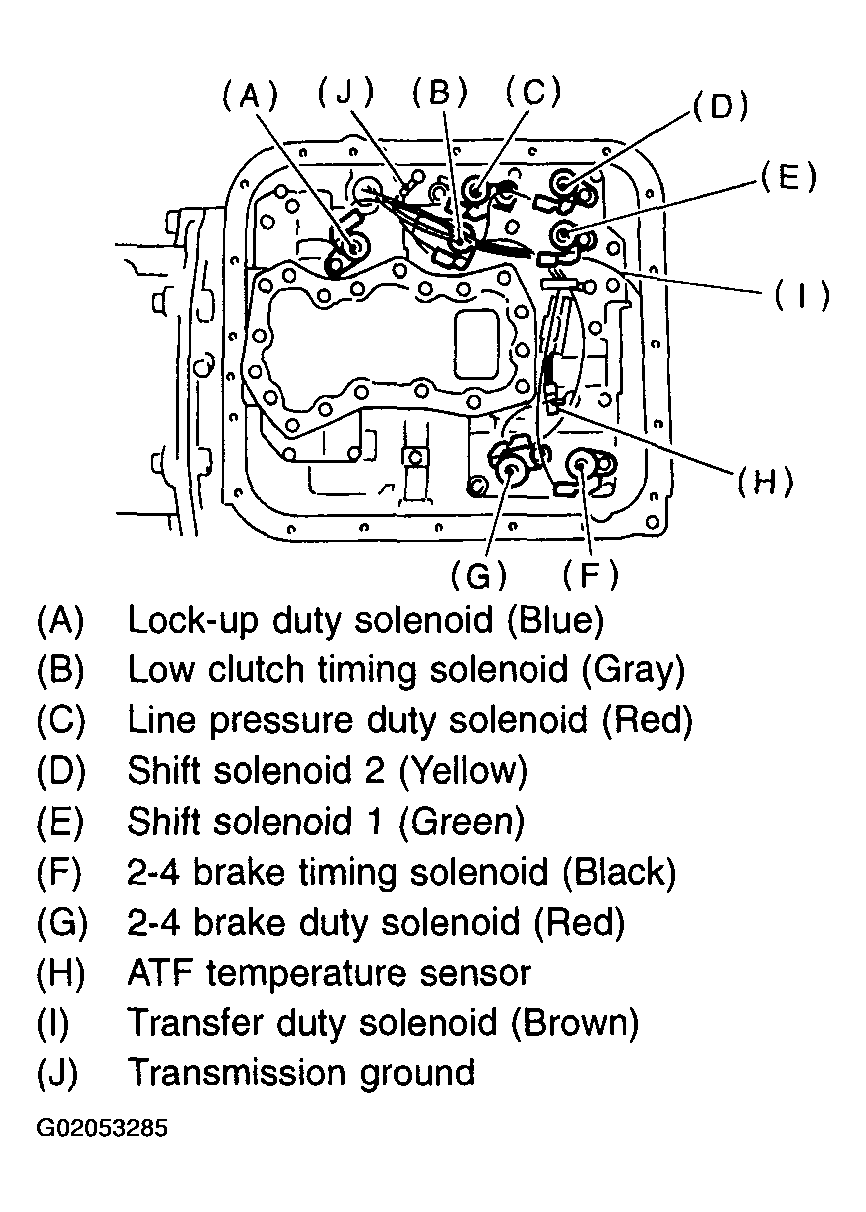

    Fig 2: Connecting All Connectors
    G02053285
  5. Attach the magnet at the specified position.

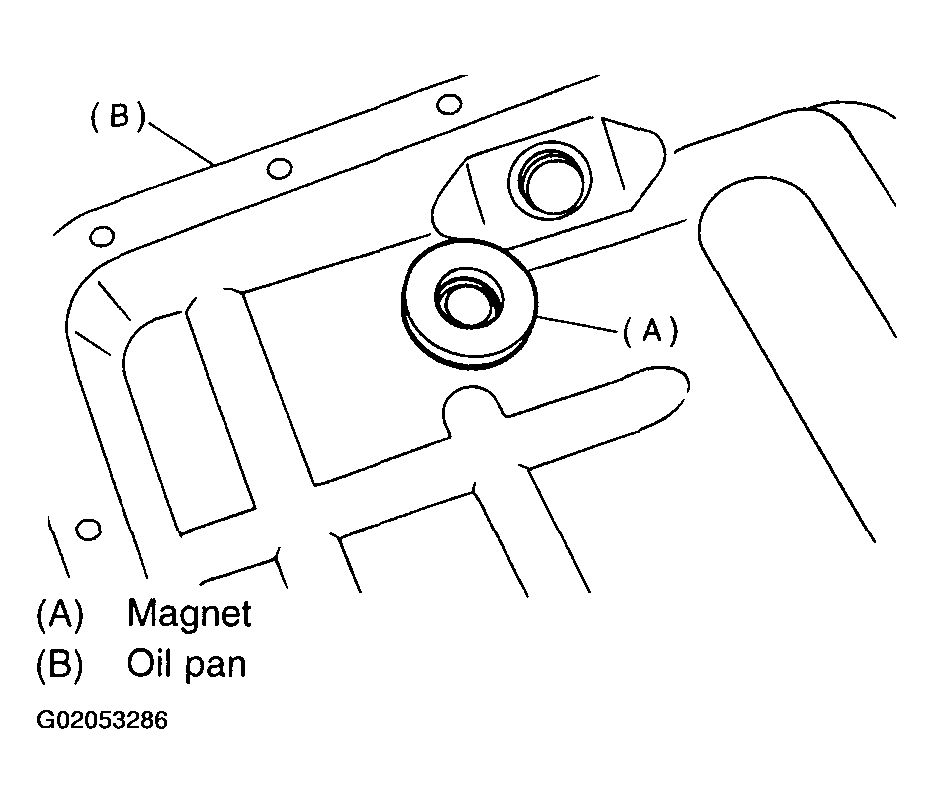

    Fig 3: Attaching Magnet At Specified Position
    G02053286
  6. Apply proper amount of liquid gasket to the entire oil pan mating surface.

    Liquid gasket:

    1. THREE BOND 1217B

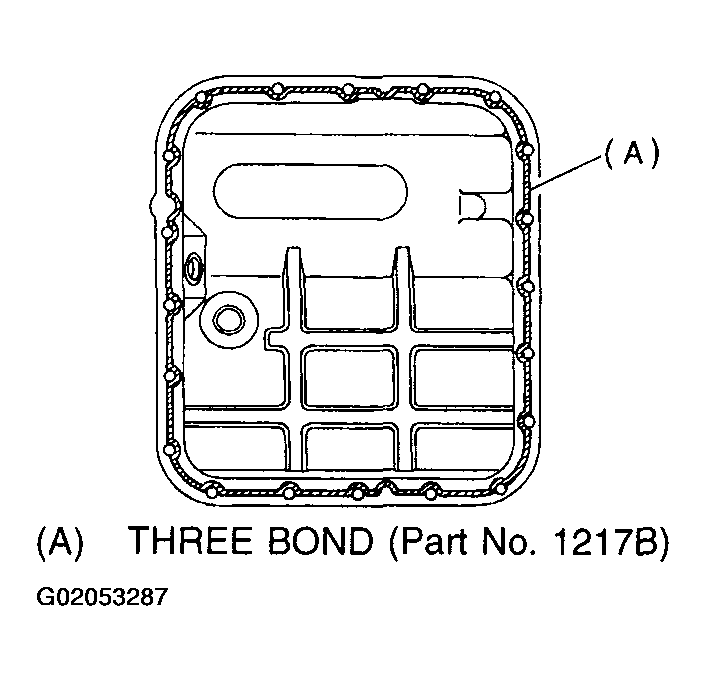

    Fig 4: Applying Liquid Gasket
    G02053287
  7. Install the oil pan to the transmission case assembly, and secure with 20 bolts.
    NOTE: Tighten the bolts evenly.

    Tightening torque:

    1. 4.9 N.m (0.50 kgf-m, 3.6 ft-lb)

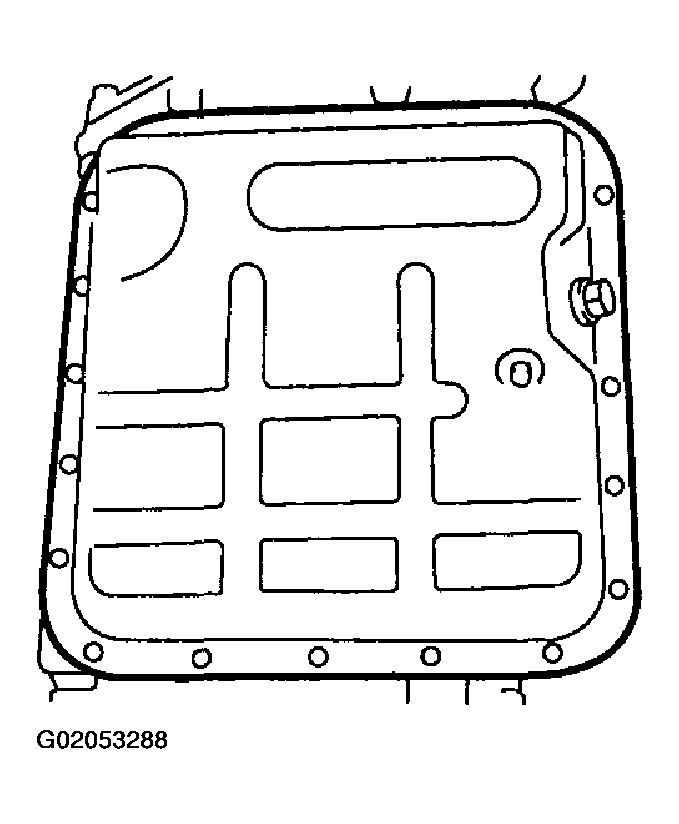

    Fig 5: Installing Oil Pan
    G02053288
  8. Turn over the transmission case to its original position.
  9. Install air breather hose. See INSTALLATION  .
  10. Install inhibitor switch and adjust the inhibitor switch. See INHIBITOR SWITCH  .
  11. Insert inhibitor switch and transmission connector into stay.

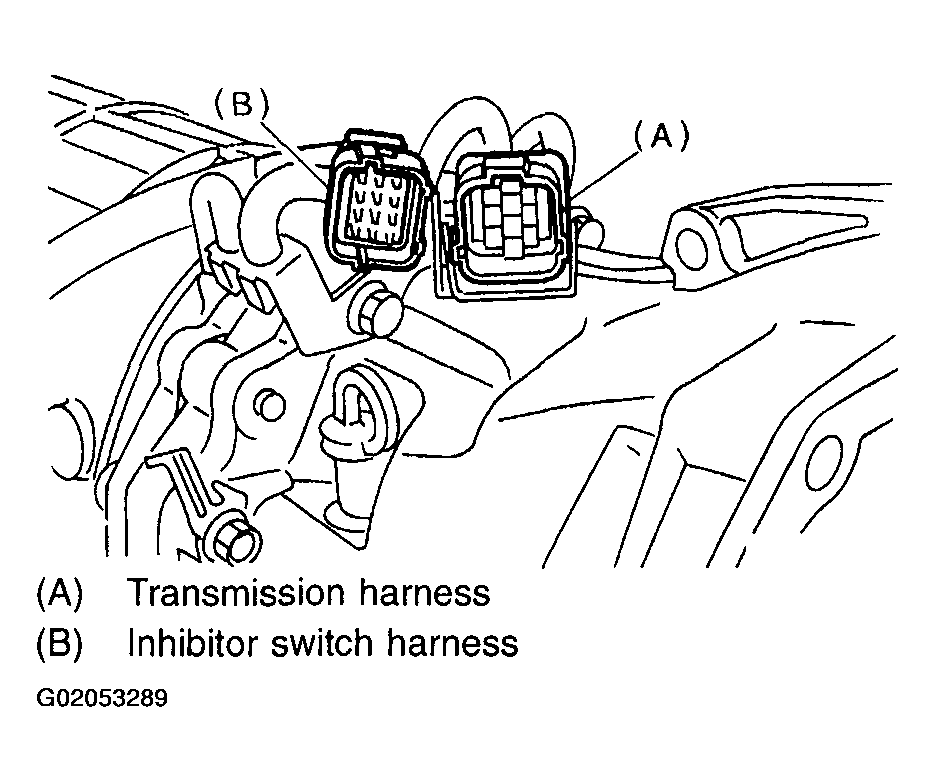

    Fig 6: Inserting Inhibitor Switch & Transmission Connector
    G02053289
  12. Insert the input shaft while turning lightly by hand.
    CAUTION: Be careful not to damage the bushing.

    Normal protrusion A:

    1. 50 - 55 mm (1.97 - 2.17 in)

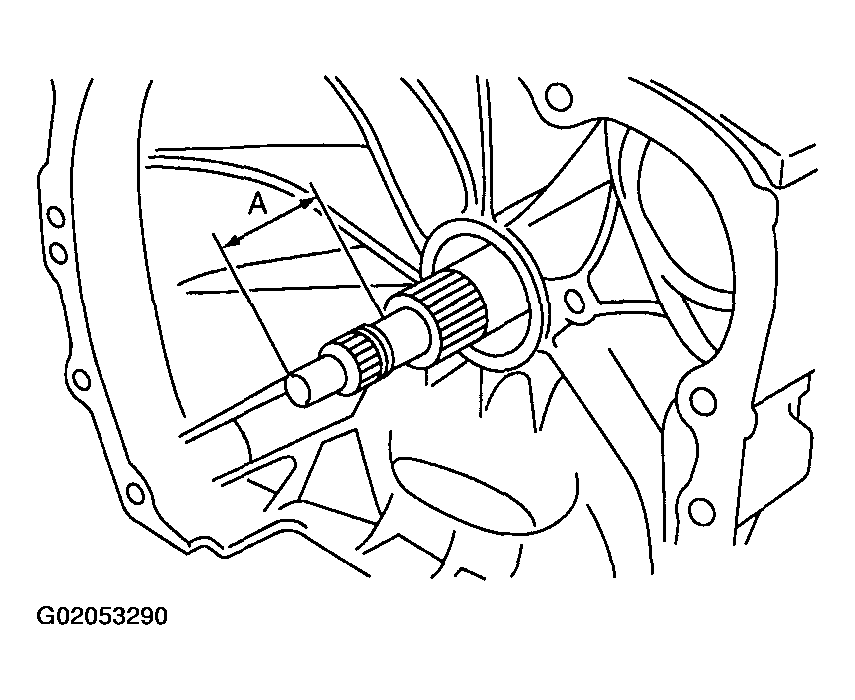

    Fig 7: Identifying Protrusion "A"
    G02053290
  13. Install the torque converter clutch assembly. See INSTALLATION  .
