2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Inhibitor Switch: Installation

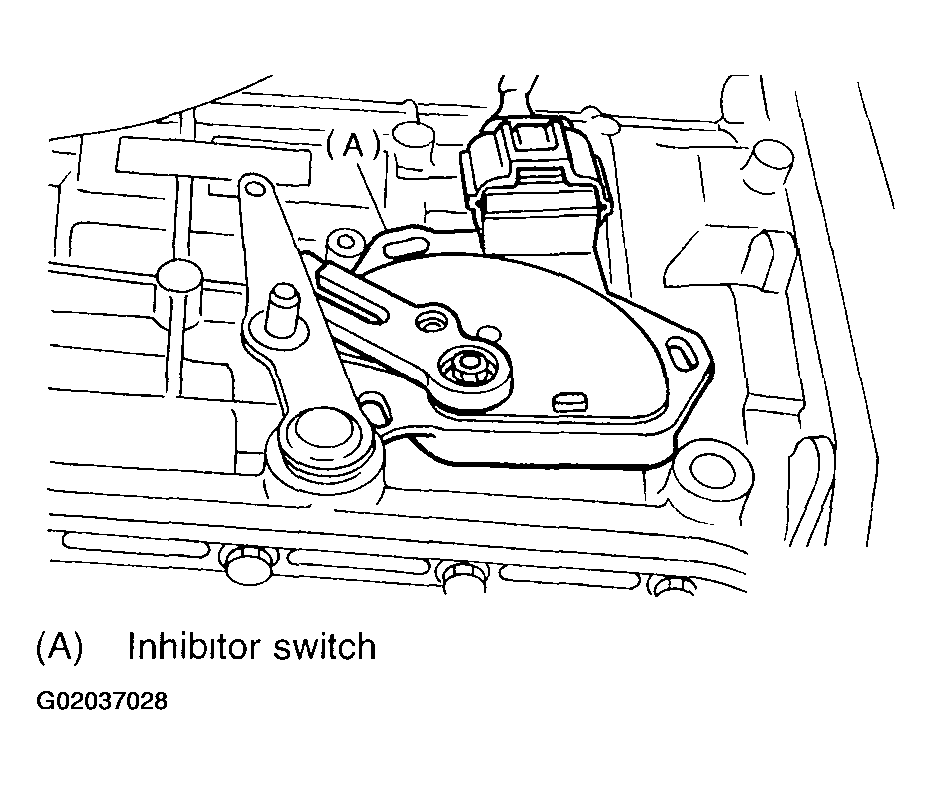

- Install inhibitor switch to transmission case.
- Move range select lever to neutral position.

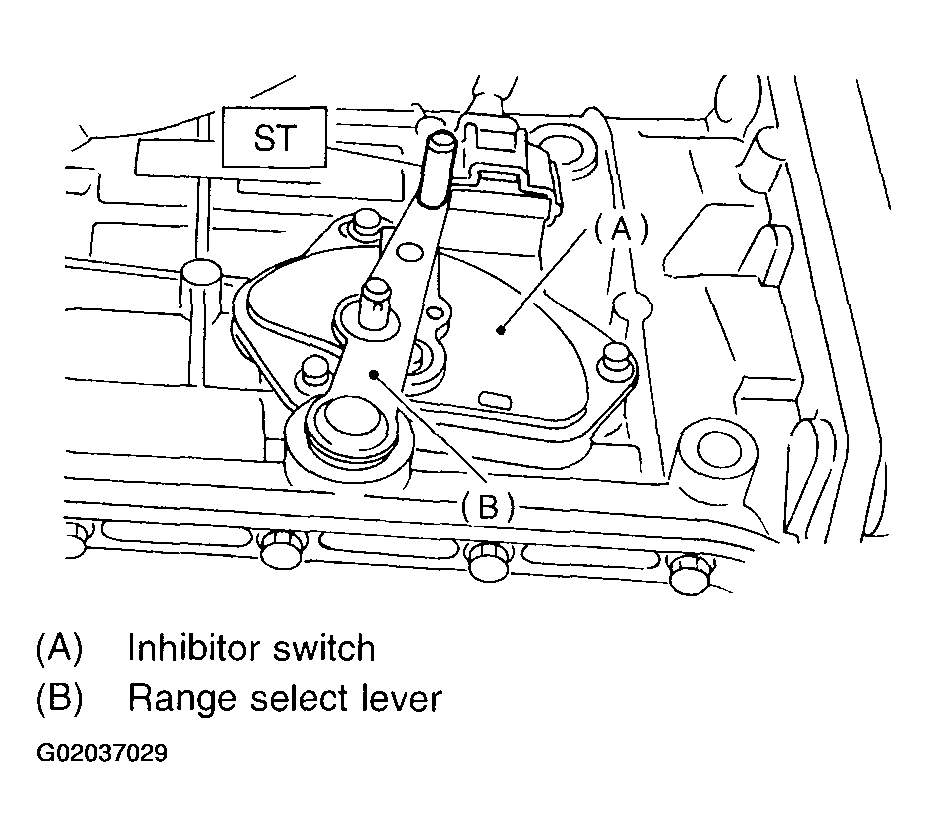

- Using ST, tighten bolts of inhibitor switch. ST 499267300 STOPPER PIN

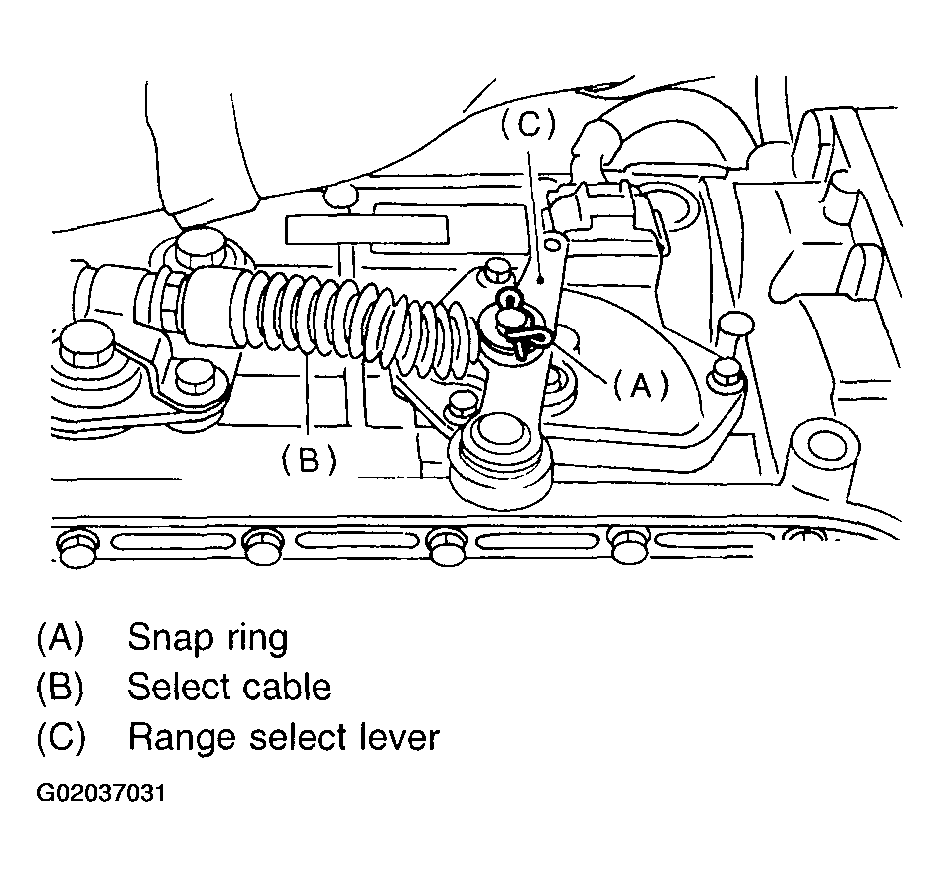

- Install select cable to range select lever.

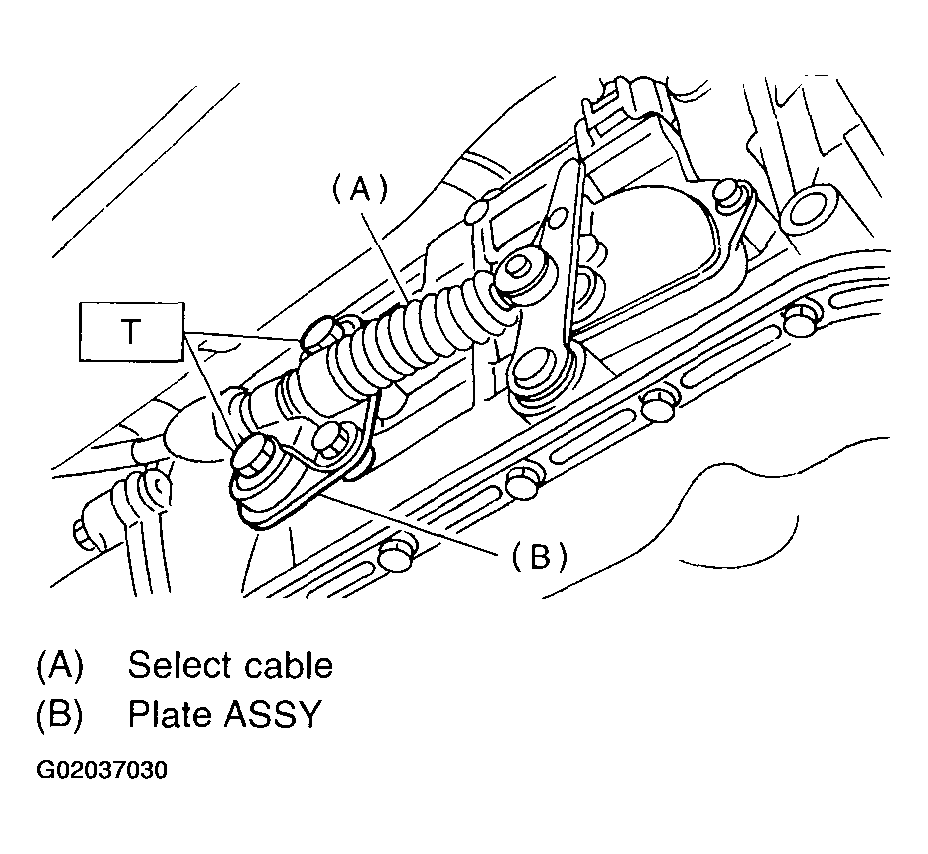

- Install plate assembly to transmission.
Tightening torque:
- T: 24.5 N-m (2.50 kgf-m, 18.1 ft-Ib)
- Install snap pin to range select lever.
- Install center exhaust pipe.

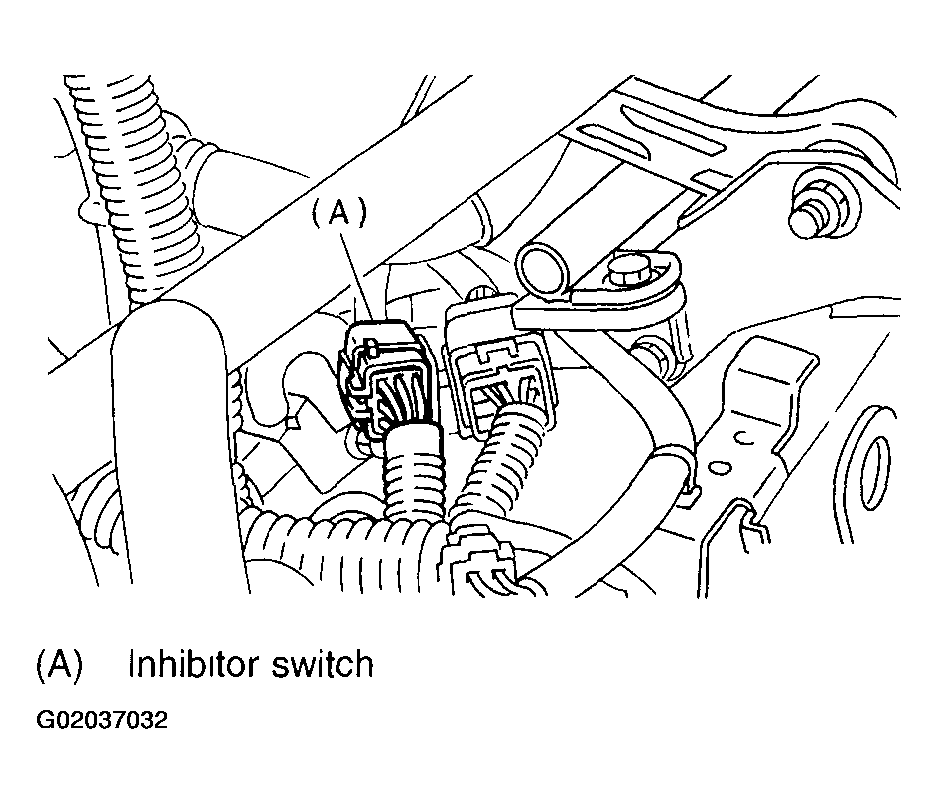

- Connect inhibitor switch connector.
- Install air intake chamber and duct.
